High-accuracy Laser SensorsBGS-HL/BGS-HDL Series


High resolution BGS laser sensor

  • Minimum detectable height difference = 0.08 mm (BGS-HL05☐☐/-HDL05☐☐)
  • Built-in controller and 4-digit display
  • Stable detection regardless object color

I/O circuit diagram

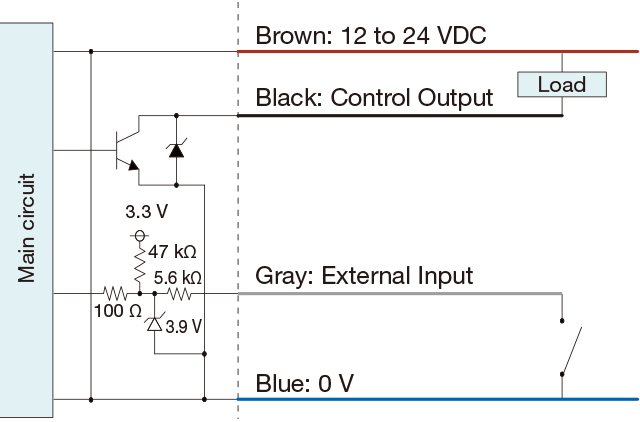

BGS-HL series

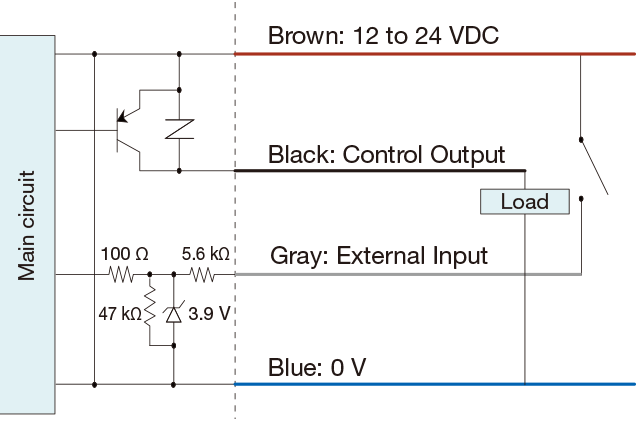

  • NPN mode

  • PNP mode

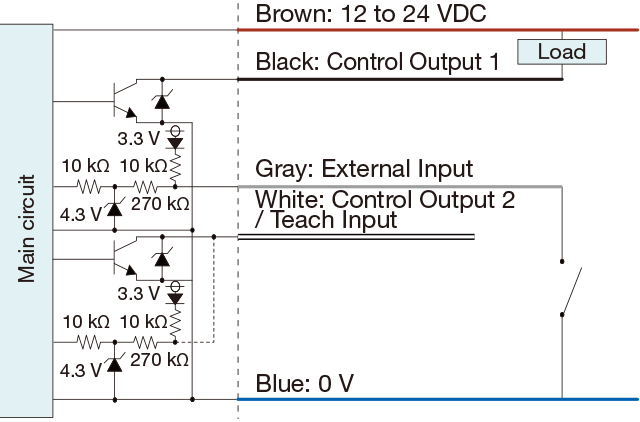

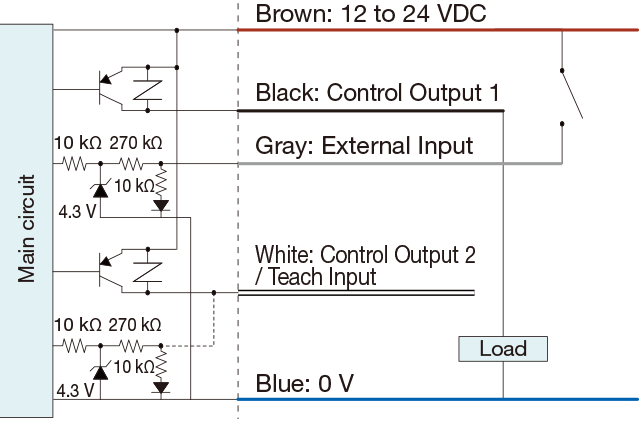

BGS-HDL series

  • NPN mode

  • PNP mode

Connector pin configuration (sensor side)

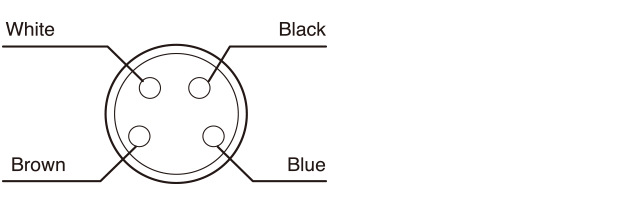

  • M8 connector type (BGS-HL series)

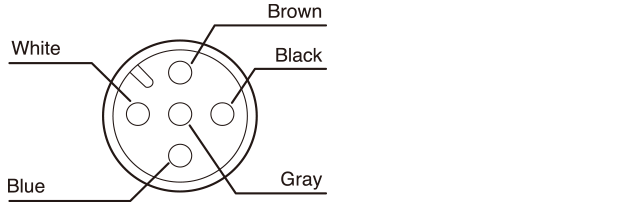

  • M12 connector type (BGS-HDL series)


(Unit : mm)

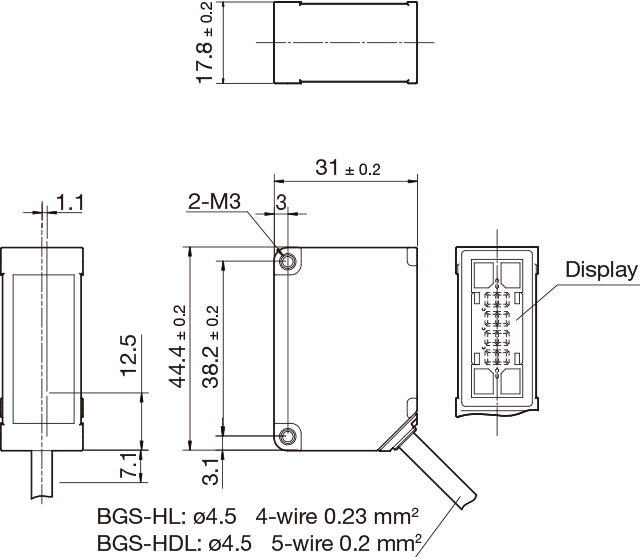

  • Cable type (BGS-HL/-HDL series)

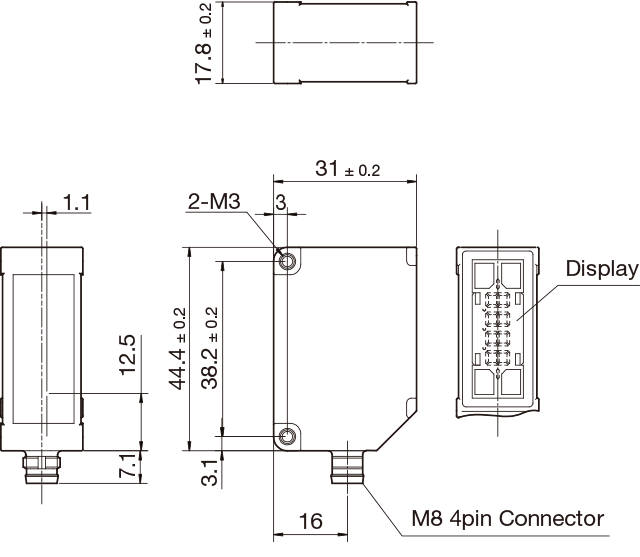

  • M8 connector type (BGS-HL series)

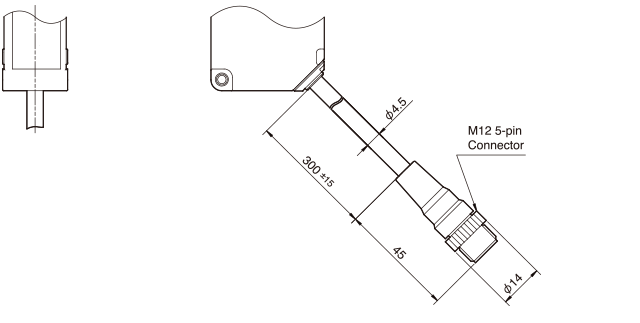

  • M12 connector type (BGS-HDL series)


  • BEF-OD1-A (for M8 connector type)

  • BEF-OD1-B (for cable type, M12 connector type)

Connector cable (optional)

  • JCN-S, JCN-5S, JCN-10S

  • JCN-L, JCN-5L, JCN-10L

  • DOL-1205-G02M

Successor models

  • M84CN-2S, M84CN-5S, M84CN-10S

  • M84CN-2L, M84CN-5L, M84CN-10L

  • YF2A15-020VB5XLEAX

Precautions for laser light use

  • This product emits a Class 1 or Class 2 visible laser beam that is compliant with JIS C6802/ IEC/FDA laser safety standards. Labels for applicable standards are affixed or attached to the sides of the sensor.

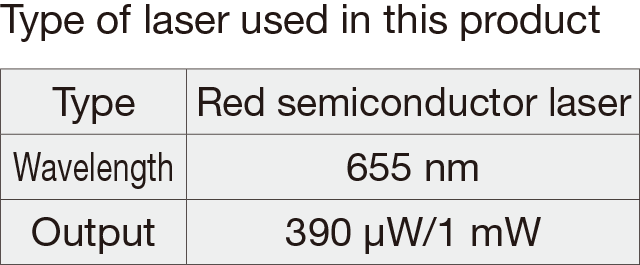

  • Type of laser used in this product

  • •Export to the United States

    If you install this product in a piece of machinery that will then be exported to the United States, it is necessary to follow laser standards as stipulated by the American Food and Drug Administration (FDA). This product has already been submitted to the CDRH (Center for Devices and Radiological Health). If exporting to the United States, apply the attached seal to the product or replace the seal.
