Standard BGS TypeBGS series

DOWNLOAD

Highly balanced BGS standard

  • Spot light can be clearly seen thanks to the high brightness emitting LED
  • Effective against workpiece tilting
  • M8 connector types are also available
BGS series

I/O circuit diagram

  • NPN output type

  • PNP output type

  • Connector type

  • Connecting

    ▪ Turns to Light ON mode when the white wire is connected to +V or not connected and to Dark ON mode when connected to 0 V (for NPN). To use without connecting, disconnect and wrap individually with insulating tape, etc. Do not connect it to any other terminal.
    ▪ 1 to 4 are connector pin No.

    Notes

    ▪ When using a switching regulator for the power supply, be sure to ground the frame ground terminal.
    ▪ Because wiring sensor wires with high-voltage wires or power supply wires can result in malfunctions due to noise, which can cause damage, make sure to wire separately.
    ▪ Avoid using the transient state while the power is on (approx. 100 ms).
    ▪ The connector direction is fixed as in the drawing to the right when you use L-shaped connector cable. Be aware that rotation is not possible.

Dimensions

(Unit : mm)

Sensor

Cable type

Connector type (excluding BGS-20□)

Mounting bracket

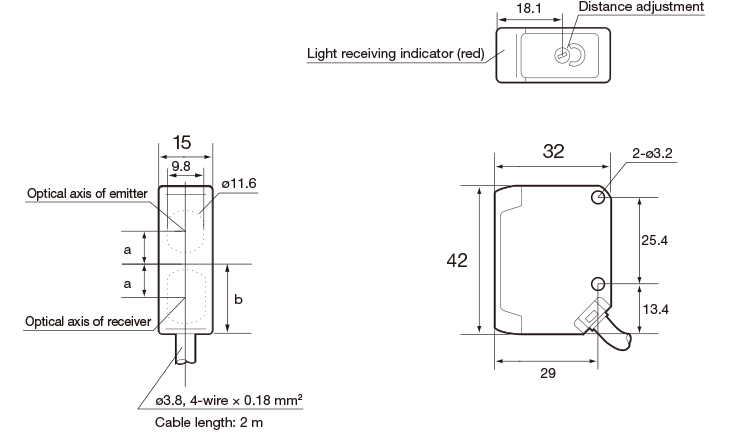

  • Cable type

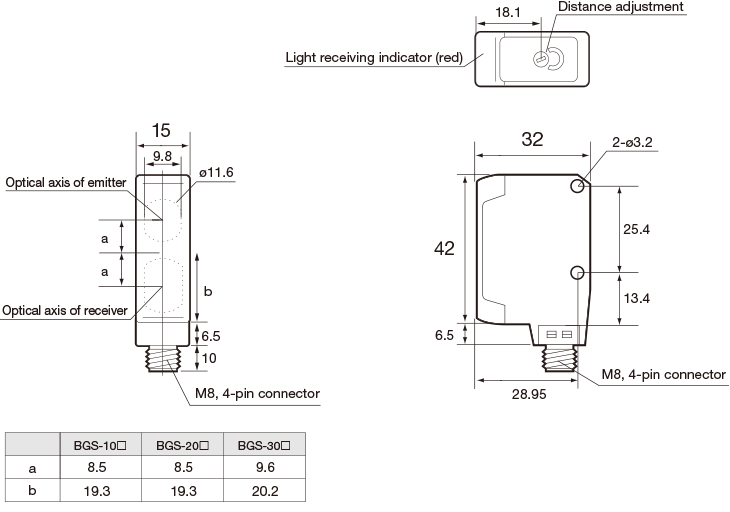

  • Connector type (excluding BGS-20☐)

Successor models

  • JCN-S, JCN-5S, JCN-10S

  • JCN-L, JCN-5L, JCN-10L

Connector cable (optional)

  • M84CN-2S, M84CN-5S, M84CN-10S

  • M84CN-2L, M84CN-5L, M84CN-10L
