Options/Accessories

Reflector

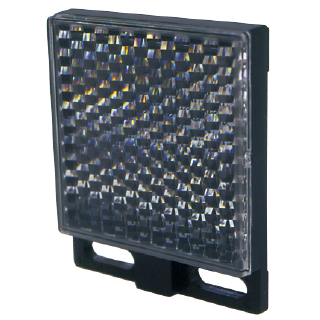

• Standard



  V-61

  60.9 x 50.9 mm
  Sensing distance:
  Z3R-400□
  0.01 to 4 m

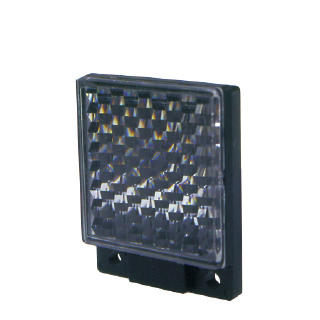

• Small type



  V-42

  42 x 35 mm
  Sensing distance:
  Z3R-400□
  0.01 to 2.4 m

• Vertical type



  P45A

  54 x 12.4 mm
  Sensing distance:
  Z3R-400□
  0.01 to 1.4 m

• Side-mounted



  P25

  32 x 14 mm
  Sensing distance:
  Z3R-400□
  0.01 to 1.6 m

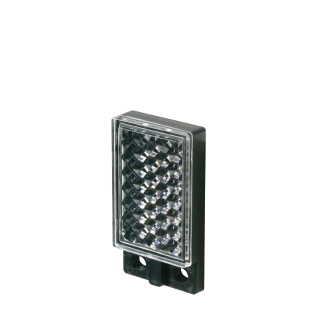

• Ultra-small



  V-30

  42 x 23 mm
  Sensing distance:
  Z3R-400□
  0.01 to 2.2 m

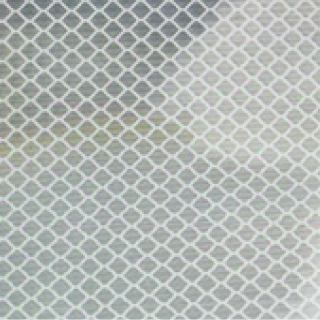

Reflective sheet

•

  Diamond grade
  sheet

  Sensing distance: Z3R-400□ 0.1 to 1 m
  100 x 100 mm
  (adhesive type)

Connector cablesDiscontinued and successor models of connector cables

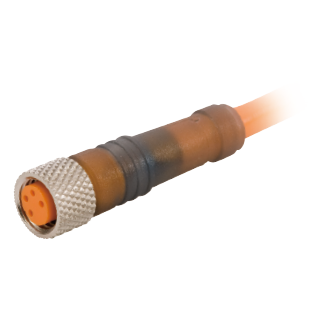

• Straight



  JCN-S

  Cable length: 2 m

  JCN-5S

  Cable length: 5 m

  JCN-5S

  Cable length: 10 m

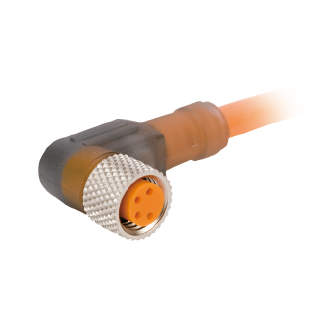

• L-shaped



  JCN-L

  Cable length: 2 m

  JCN-5L

  Cable length: 5 m

  JCN-10L

  Cable length: 10 m

Successor models

• Straight



  M84CN-2S

  Cable length: 2 m

  M84CN-5S

  Cable length: 5 m

  M84CN-10S

  Cable length: 10 m

  Minimum bending radius: 24 mm
  (When fixed in place)

• L-shaped



  M84CN-2L

  Cable length: 2 m

  M84CN-5L

  Cable length: 5 m

  M84CN-10L

  Cable length: 10 m

  Minimum bending radius: 24 mm
  (When fixed in place)

Mounting bracket

•

  For cable type

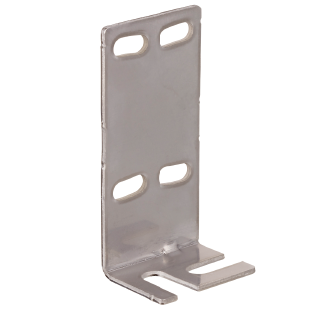

  Floor-mounted

  BEF-W100-B

•

  For connector type

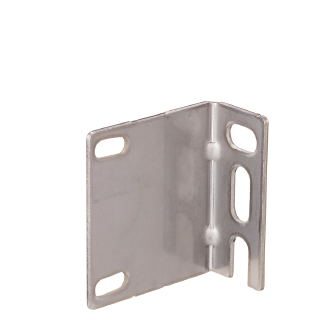

  Back-mounted

  BEF-W100-A

  Cannot be used with
  connector M84CN-□L

•

  For cable type
  Floor-mounted

  BEF-W100-C

Protective mounting bracket　LK series

•

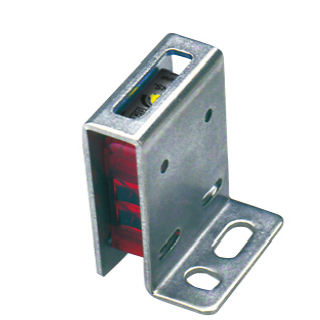

  LK-S01

  • Ultra-durable 2 mm thick type
  • Rust-resistant stainless steel
  • Sensor is firmly secured using M3
  Hex socket head cap screws
  •The bracket is also firmly secured using M6 screws

•

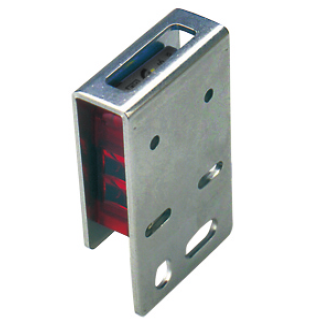

  LK-S02

  • Ultra-durable 2 mm thick type
  • Rust-resistant stainless steel
  • Sensor is firmly secured using M3
  Hex socket head cap screws
  •The bracket is also firmly secured using M6 screws

Slit/filter

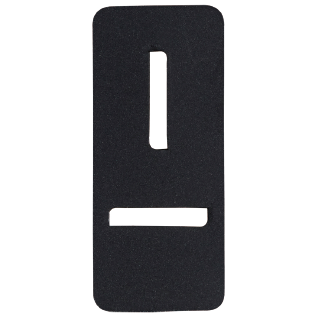

• Slit mask



  Slit mask for through-beam type (adhesive type)

  BL-W100

  Shipped with two of each slit width (0.5 mm, 1 mm, 2 mm).

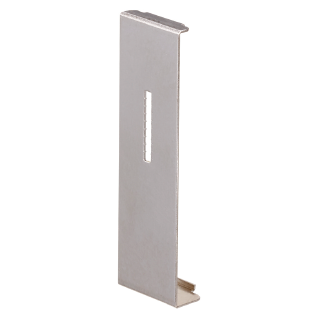

• Stainless steel slit mask



  Stainless steel slit mask for through-beam type

  BL-100-M1-10pcs BL-100-M05

  10 pieces of slit masks are shipped for M1 with a slit width of 1 mm, and 2 piece of slit mask is shipped for M05 with a slit width of 0.5 mm.

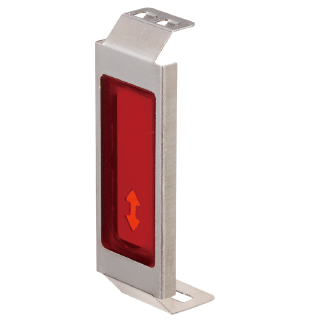

• Anti-interference filter for through-beam type



  BL-100-POLF

  POL filter, vertical and horizontal, 2 sets of each
  Max. sensing distance: 12 m
