Standard-sized SensorsZ3 Series

DOWNLOAD

Industry standard sensor

  • Longest sensing distance in class at 25 m*
  • Significantly reduced dead zone
  • Indicators visible from any angle

  • NEW MODEL

    New lineup of through-beam type with high power IR LED

    • *Red LED type, with through-beam type

Z3 Series

Output circuit diagram

  • NPN output type

  • PNP output type

  • Through-beam type emitter

  • Connector type

    Connecting

    ▪1 to 4 are connector pin No.

    Notes

    ▪ When using a switching regulator for the power supply, be sure to ground the frame ground terminal.
    ▪ Because wiring sensor wires with high-voltage wires or power supply wires can result in malfunctions due to noise, which can cause damage, make sure to wire separately.
    ▪ Avoid using the transient state while the power is on (approx. 100 ms).
    ▪ The connector direction is fixed as the drawing below when you use L-shaped connector cable. Be aware that rotation is not possible.

Dimensions

Unit : mm

Sensor

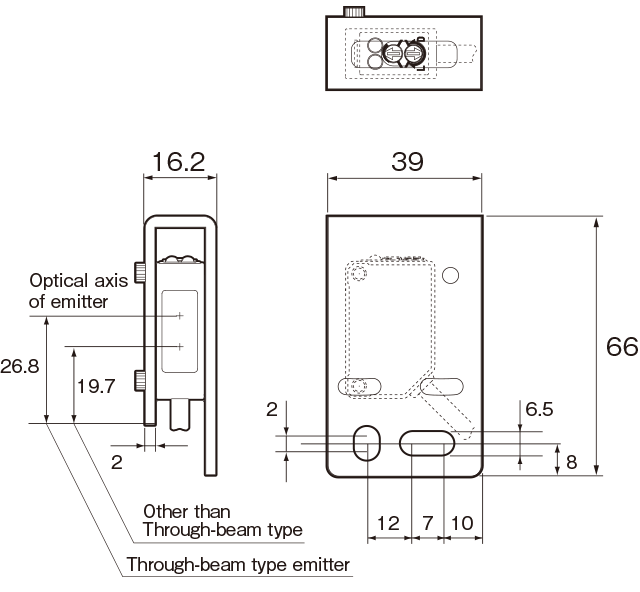

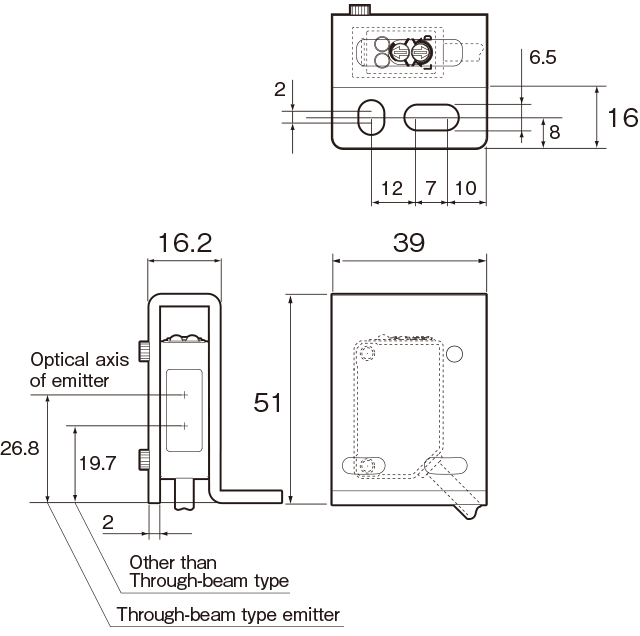

Mounting bracket

  • BEF-W100-B

  • BEF-W100-A

  • BEF-W100-C

Reflector

  • V-61: Standard type reflector

  • V-42: Small reflector

  • P45A: Vertical type reflector

  • P25: Side mount reflector

  • V-30: Ultra-small reflector

Protective mounting bracket

  • LK-S01

  • LK-S02

Connector cable

  • JCN-S, JCN-5S, JCN-10S

  • JCN-L, JCN-5L, JCN-10L

Successor models

  • M84CN-2S, M84CN-5S, M84CN-10S

  • M84CN-2L, M84CN-5L, M84CN-10L

Slit mask

  • BL-W100

  • BL-100-M1
    BL-100-M05
