Small-sized SensorsS Series

DOWNLOAD

Can be installed anywhere Small photoelectric sensor

  • Features a high speed response time of 0.5 ms, enabling its use on high speed production lines
  • Small in size with noise resistance that conforms to CE standards
  • Shock resistance up to 100 G
S Series

Options/Accessories

Reflector

  • Standard
    (included) Included with retro-reflective type

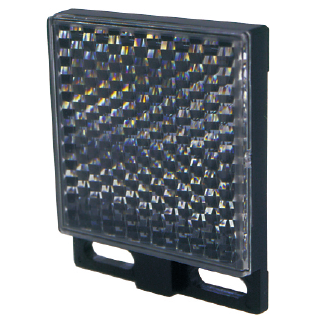

    V-61

    Sensing distance: 1.5 m 60.9 × 50.9 mm

  • Small type

    V-42

    Sensing distance: 800 mm 42 × 35 mm

  • Vertical type

    P45A

    Sensing distance: 500 mm 54 × 12.4 mm

Connector cablesDiscontinued and successor models of connector cables

  • Straight

    M84CN-2S

    Cable length: 2 m

    M84CN-5S

    Cable length: 5 m

    M84CN-10S

    Cable length: 10 m

  • L-shaped

    M84CN-2L

    Cable length: 2 m

    M84CN-5L

    Cable length: 5 m

    M84CN-10L

    Cable length: 10 m

Protective mounting bracket　LS series

  • LS-S01

    •Ultra-durable 2 mm thick type
    •Rust-resistant stainless steel
    •Sensor is firmly secured using M3 Hex socket head cap screws
    •The bracket is also firmly secured using M6 screw

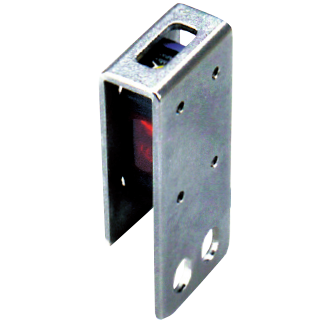

  • LS-S02

    •Ultra-durable 2 mm thick type
    •Rust-resistant stainless steel
    •Sensor is firmly secured using M3 Hex socket head cap screws
    •The bracket is also firmly secured using M6 screw

Sensor stand

  • Sensor stand
    (Image is for flat surface mounting)

    PLN-1

    For PLN-1 Reflector mounting bracket

    PLN-1M

Slit mask

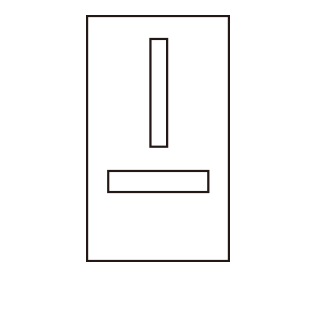

  • Slit mask for through-beam type

    BL-150-10

    Slit width 1 mm (2 included)

Reflective sheet

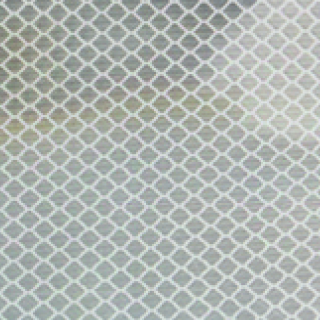

  • Diamond grade sheet

    Sensing distance: 50 to 600 mm 100 × 100 mm (adhesive type)
