Small TypeS Series

DOWNLOAD

Can be installed anywhere Small photoelectric sensor

  • Features a high speed response time of 0.5 ms, enabling its use on high speed production lines
  • Small in size with noise resistance that conforms to CE standards
  • Shock resistance up to 100 G
S Series

I/O circuit diagram

  • NPN output type

  • PNP output type

  • Through-beam type emitter

  • Connector type

    Connecting

    ▪ Turns to Light ON mode when the white wire is connected to +V or not connected and to Dark ON mode when connected to 0 V (for NPN). To use without connecting, disconnect and wrap individually with insulating tape, and do not connect it to any other terminal.
    ▪1 to 4 are connector pin No.

    Notes

    ▪ When using a switching regulator for the power supply, be sure to ground the frame ground terminal.
    ▪ Because wiring sensor wires with high-voltage wires or power supply wires can result in malfunctions due to noise, which can cause damage, make sure to wire separately.
    ▪ Avoid using the transient state while the power is on (approx. 100 ms).

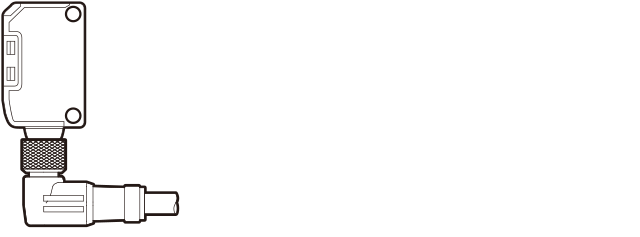

    ▪ The connector direction is fixed as the drawing below when you use L-shaped connector cable. Be aware that rotation is not possible.

Operation mode

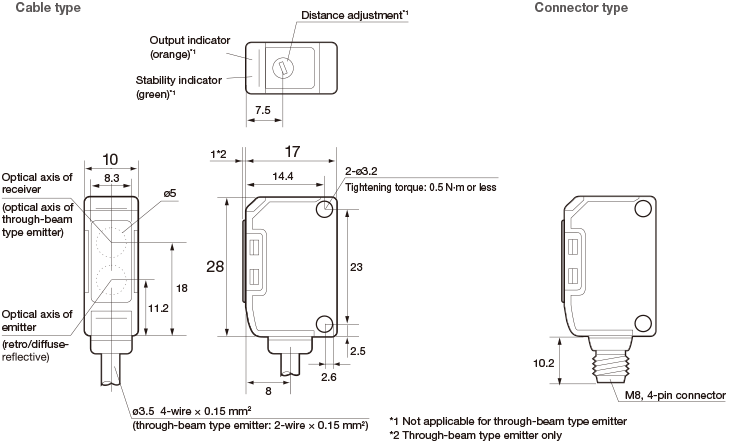

Dimensions

Unit : mm

Sensor

Mounting bracket

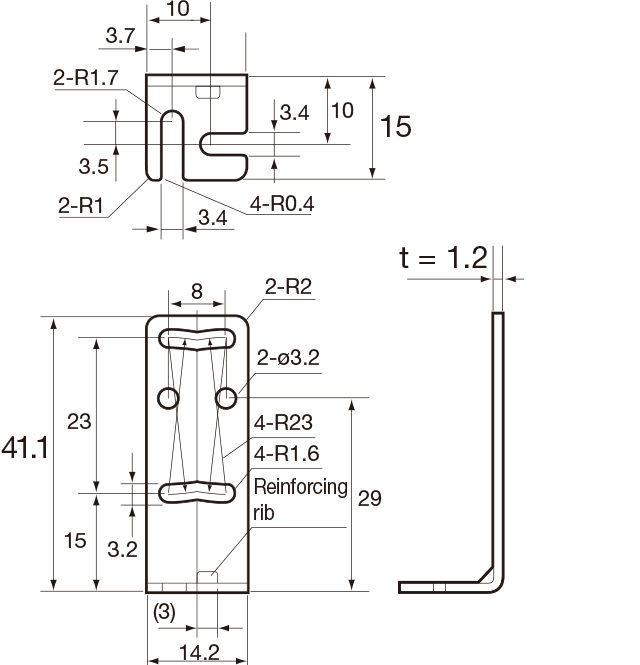

  • BEF-W150-B (included with sensor)

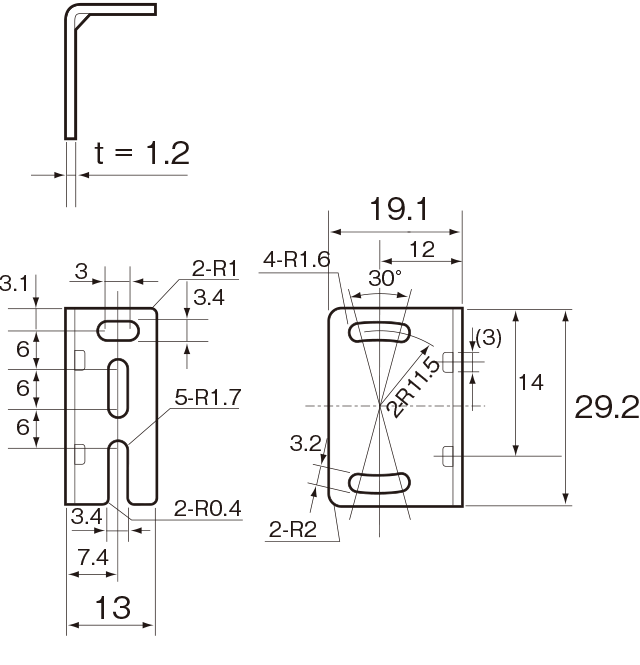

  • BEF-W150-A (optional)

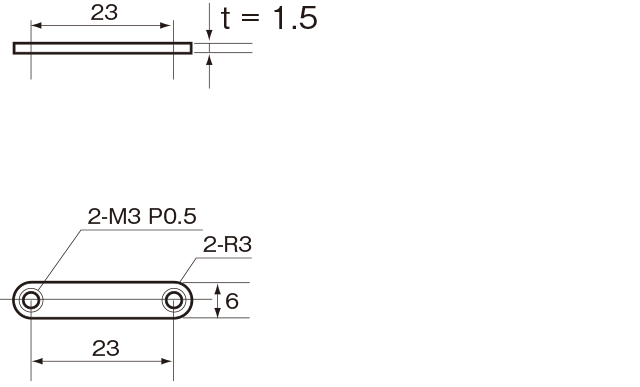

  • Nut plate (included)

Connector cable (optional)

  • JCN-S, JCN-5S, JCN-10S

  • JCN-L, JCN-5L, JCN-10L

Reflector

  • V-61: Standard type reflector(included with retro-reflective type)

  • V-42: Small reflector (optional)

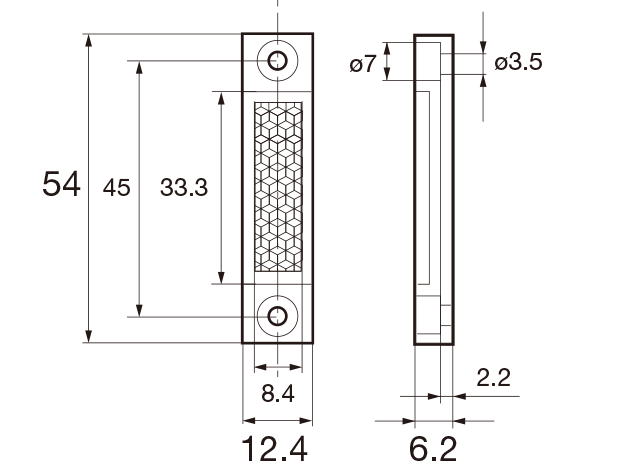

  • P45A: Vertical type reflector (optional)

Protective mounting bracket

  • LS-S01

  • LS-S02
