Compact Laser Displacement SensorsCD22 Series

DOWNLOAD

Smallest displacement sensor in class

    * Among devices equipped with displays in the 1 μm repeat accuracy class. Optex FA examination performed November 2015.

  • Newly added amplifier unit that can be connected with CC-Link communication units
  • Built-in amplifier & digital 4-digit display
  • Featuring high performance functionality like high-end models
CD22 Series

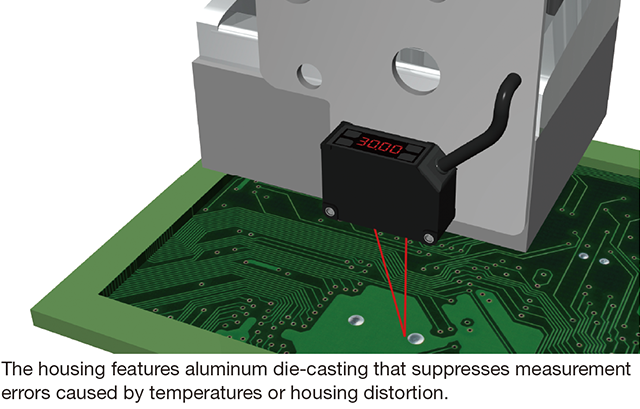

Ideal for robot mounting

  • CD22 series models feature a compact and lightweight body, and because of their built-in amplifier, there are few limitations on installation space and wiring, meaning that sensors themselves can be mounted on robots or on moving parts.

  • The external amplifier unit enables remote operation and easy calculation setting

    With its excellent visibility and operability, the external amplifier unit enables the CD22 series to be operated remotely even when mounted in narrow spaces such as inside machinery.
    Calculation of thickness and height differences can be performed easily using 2 sensor heads.


  • Connect with CC-Link to achieve “sensor visibility”

    By connecting a CDA series to a communication unit, connection to a CC-Link network is possible.
    It supports Mitsubishi iQ Sensor Solution (iQSS) and batch management of sensors can be performed easily with GX Works2.
