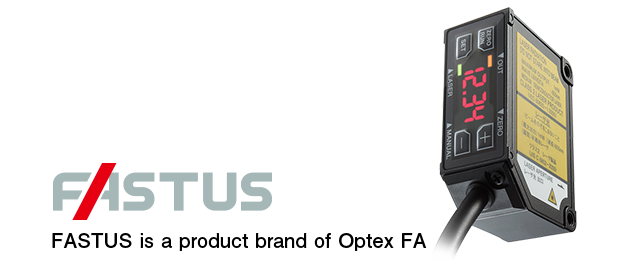

Compact Laser Displacement SensorsCD22 Series

Smallest displacement sensor in class

    * Among devices equipped with displays in the 1 μm repeat accuracy class. Optex FA examination performed November 2015.

  • Newly added amplifier unit that can be connected with CC-Link communication units
  • Built-in amplifier & digital 4-digit display
  • Featuring high performance functionality like high-end models
CD22 Series
