Compact Laser Displacement SensorCD22 Series

DOWNLOAD

Smallest displacement sensor in class

    * Among devices equipped with displays in the 1 μm repeat accuracy class. Optex FA examination performed November 2015.

  • Newly added amplifier unit that can be connected with CC-Link communication units
  • Built-in amplifier & digital 4-digit display
  • Featuring high performance functionality like high-end models
CD22 Series

Options/Accessories

Displacement sensor amplifier unit

  • CDA series

    Features an organic EL display that can display clearly in both Japanese and English.
    This external amplifi er can be used for calculations using two CD22 series units or connected to a CC-Link communication unit.

    CDA-M

    CDA-S

    Dual analog output type
    CDA-DM2

CC-Link Communication Unit

  • UC1 series

    Monitoring and Setup of Sensors Through Network is Possible.

    UC1-CL11

Connector cablesDiscontinued and successor models of connector cables

  • M12 connector cable

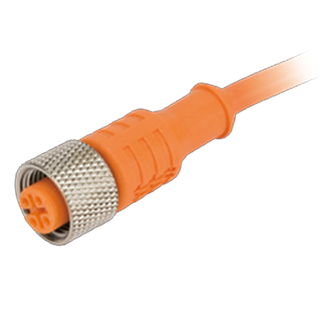

    * Image shows DOL-1205-G02M. Robot cable type feature black instead of orange and shapes vary slightly.

    DOL-1205-G02M
    Cable length: 2 m
    DOL-1205-G05M
    Cable length: 5 m
    DOL-1205-G10M
    Cable length: 10 m
    DOL-1205-G02M-R
    Cable length: 2 m,
    robot cable type

    DOL-1205-G05M-R
    Cable length: 5 m,
    robot cable type

Successor models

  • M12 connector cable

    * Image shows YF2A15-020VB5XLEAX. Robot cable type feature black instead of orange and shapes vary slightly.

    YF2A15-020VB5XLEAX
    Cable length: 2 m
    YF2A15-050VB5XLEAX
    Cable length: 5 m
    YF2A15-100VB5XLEAX
    Cable length: 10 m
    DOL-1205-G02M-R
    Cable length: 2 m,
    robot cable type

    DOL-1205-G05M-R
    Cable length: 5 m,
    robot cable type
