IO-Link Compatible Non-Contact ThermometerTI-S Series

DOWNLOAD

Resistant to ambient temperature changes
Non-contact thermometer with ring laser pointer

  • Designed to be less susceptible to ambient temperature changes
  • Ring laser pointer for visual confirmation of field of view
  • Easy-to-read full color display
TI-S Series

I/O circuit diagram

General-purpose I/O cable

  • NPN setting

  • PNP setting

  • Lead wire functions

  • Lead wire functions during bank select

IO-Link cable

  • IO-Link connection*

    * When using NPN settings for an IO-Link connection, use OPTEX FA’s IO-Link Master UR Series or IO-Link Master with sink support.

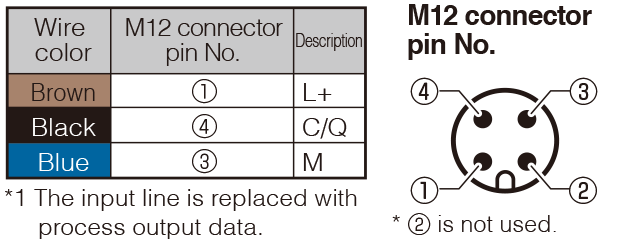

  • IO-Link cable lead wire/connector pin functions

Dimensions

(Unit : mm)

  • Sensor head

  • Controller

Mounting brackets for sensor head

  • BEF-TISH-B (Option)

  • BEF-TISH-A (Option)

  • Mounting bracket for 2-axis mounted installation image

Mounting bracket for controller

  • BEF-TISC-BKT (Option)

Connection cable (Option)

  • General-purpose I/O cable: TI-SCA09-G3K

    Minimum bending radius (Stationary position): R 42 mm

  • IO-Link cable: TI-SCA03-G3K

    Minimum bending radius (Stationary position): R 42 mm

  • IO-Link cable: TI-SM1203-G03K

    Minimum bending radius (Stationary position): R 42 mm

Air purge kit

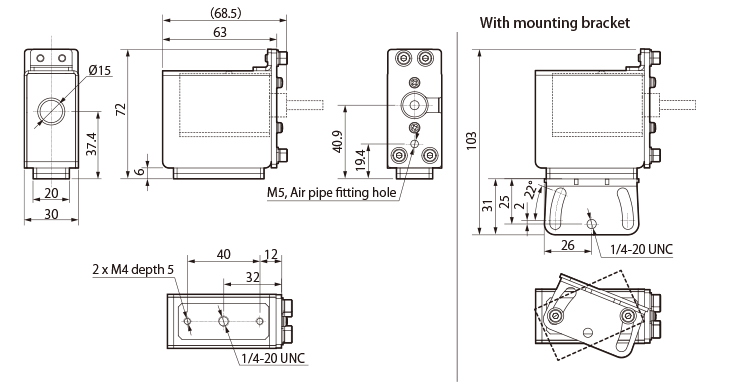

  • Air purge kit for TI-S30: TI-S30-AP

Mounting bracket for air purge kit (Included in optional air purge kit)
