IO-Link Compatible Non-Contact ThermometerTI-S Series
Resistant to ambient temperature changes
Non-contact thermometer with ring laser pointer
- Designed to be less susceptible to ambient temperature changes
- Ring laser pointer for visual confirmation of field of view
- Easy-to-read full color display
-
High-accuracy measurement ±1°C
Measurement can be performed with an accuracy of ±1°C. This thermometer can also meet stringent measurement requirements.
* Measurement range: +1 to +200°C -
High speed
Achieves response times of 50 ms or less (high speed) with 90% response.
So it is also effective for applications such as measuring the temperature of objects on a production line.
Edge detection allows for immediate detection when rapid temperature changes occur.
High accuracy and high speed
-
Space-saving design allows installation anywhere and easy operation
-
High-performance controller with color LCD in multiple languages
-
Wide-ranging interface and measurement functions
-
Edge detection
Detection of rapid temperature changes-
Edge detection is provided, and detects when rapid temperature changes occurred.
It is possible to only detect errors caused by temperature changes occurring within a short period of time. -
-
-
Head internal temperature display
-
In addition to the temperature of the measurement target, the head internal temperature is also continuously displayed.
This allows use while checking the effects of the ambient temperature. -
-
-
Analog output
For analog output, current output (4 to 20 mA) and voltage output (0 to 10 V) can be selected.
It can be used without selecting an input device. -

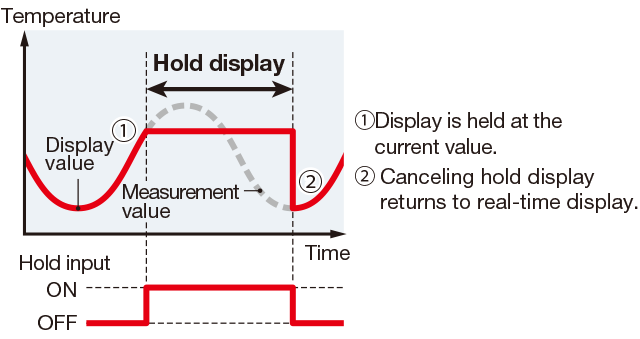

Hold display
-
Instead of displaying measured temperatures in real-time, you can hold display at the maximum or minimum temperatures during measurement.
-
-
-
Alarm output (upper/lower limit settings)
-
A designated temperature range can be set as the threshold, and an alarm can be output when the measured temperature is outside of that range.
-
-
-
Bank function (4 channels)
-
4 ch are installed for the bank function which can select (call) setting contents.
The settings can be easily changed when the measurement condition changes. -
-
-
First in Industry
Trend graph-
A trend graph of the measured temperature can be displayed covering up to 24 hours.
-
-
-

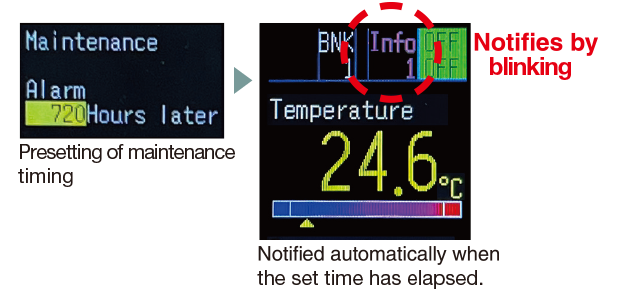

Maintenance alarm
-
Notification of maintenance timing can be provided when the preset period has elapsed for the timing of optical system cleaning, calibration, or other maintenance.
-
-
