Fiber-Optic CablesNF Series Sleeve/Side view type
The fine tip makes mounting highly flexible
and adjusting position very easy
- Long sleeve type can be bent (Straight view type)
- Side angle light beam provides optimal detection in narrow places (Side view type)

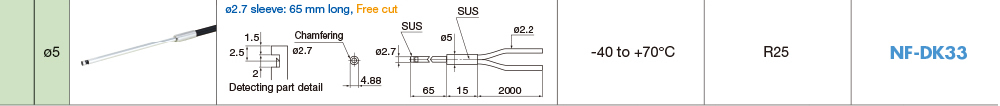

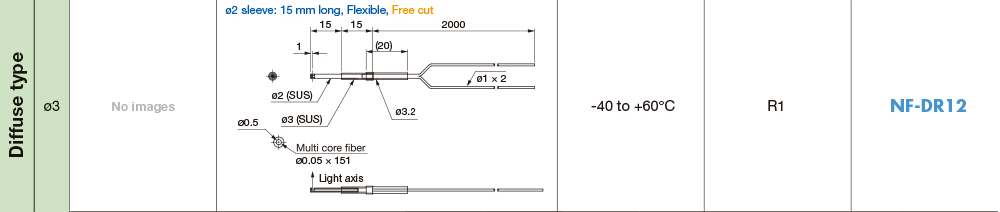

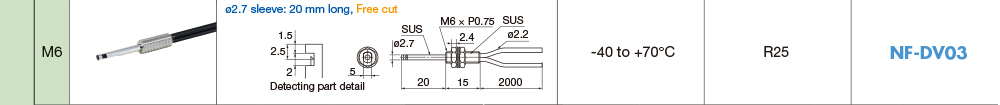

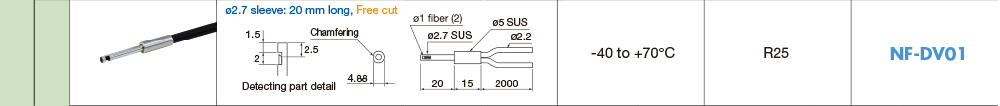

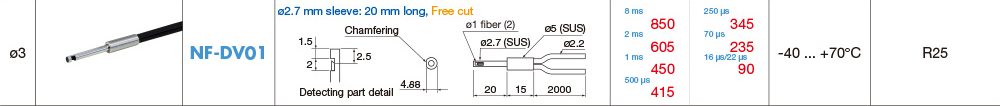

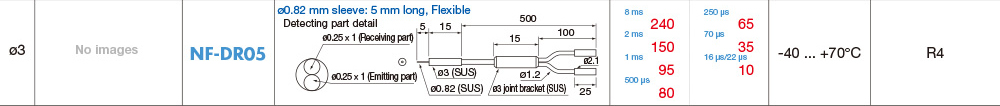

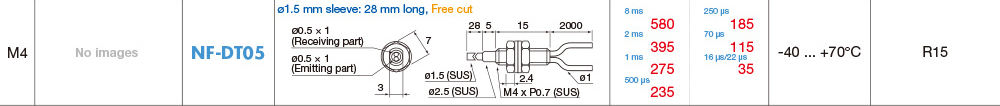

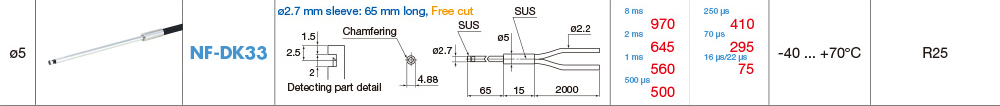

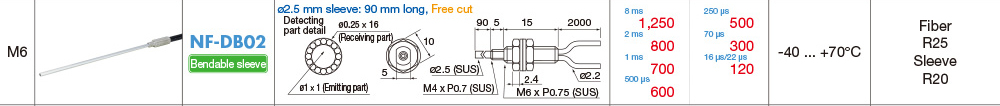

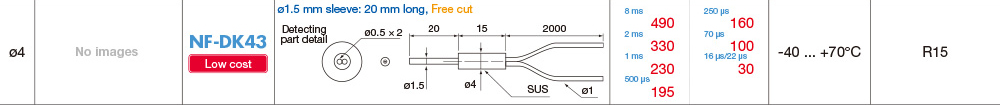

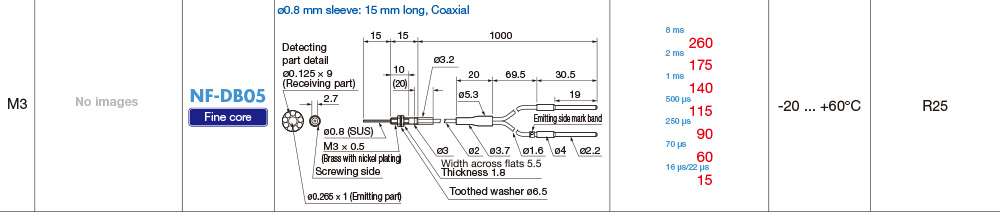

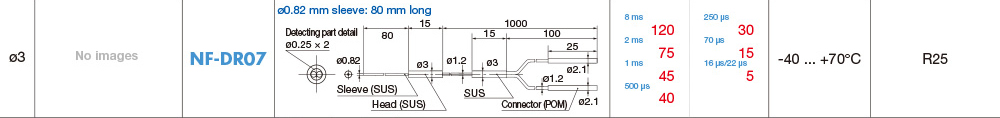

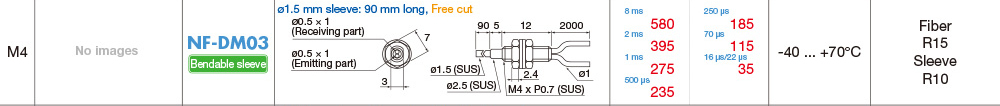

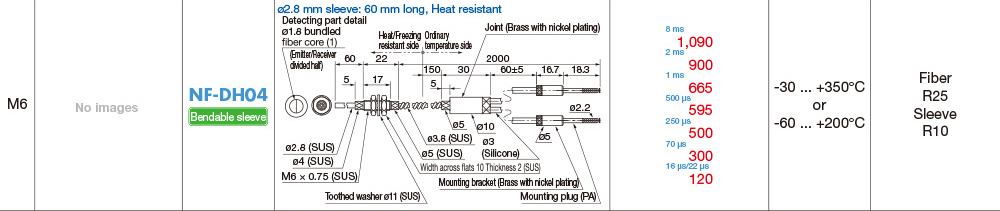

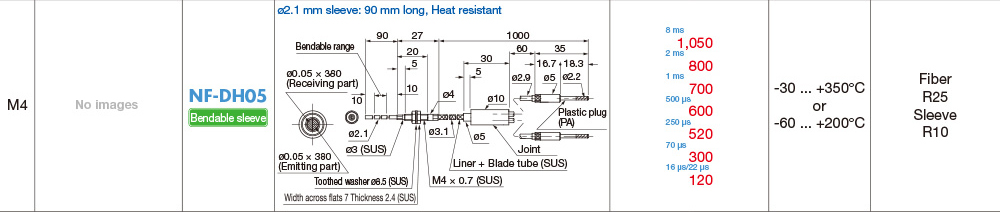

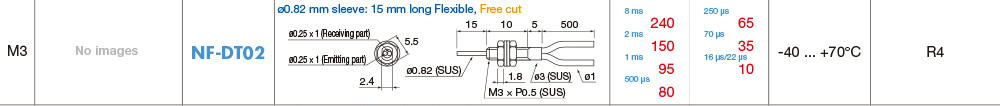

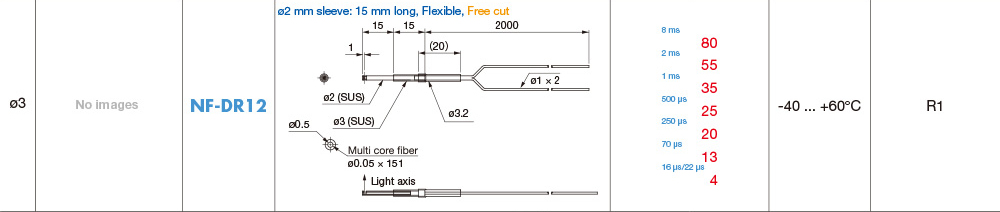

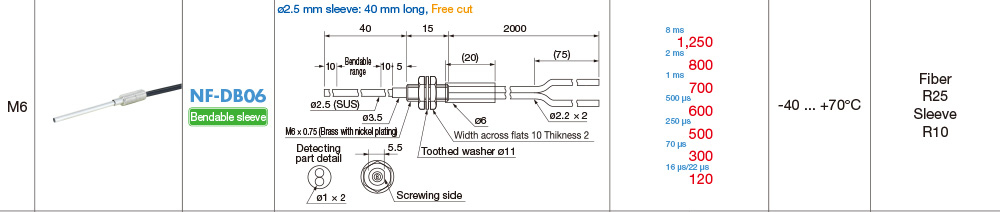

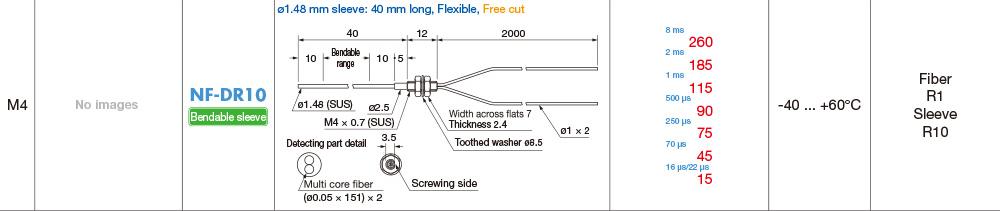

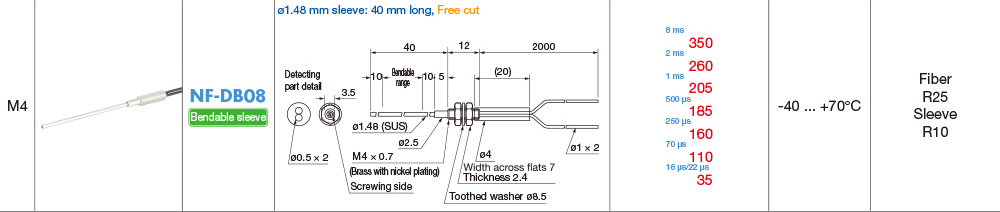

Sleeve type Fiber-Optic Cables (diffuse type)
*Download the drawing to check the tolerances.
Click the image to enlarge.
•The sensing distances for the diffuse type Fiber-Optic Cables are values on 500 ☓ 500 mm white paper.
•Install with an ambient humidity between 35 and 85%. In the case of 85% RH, the ambient temperature should be between 0 and 40℃.

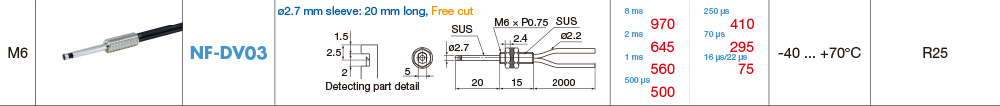

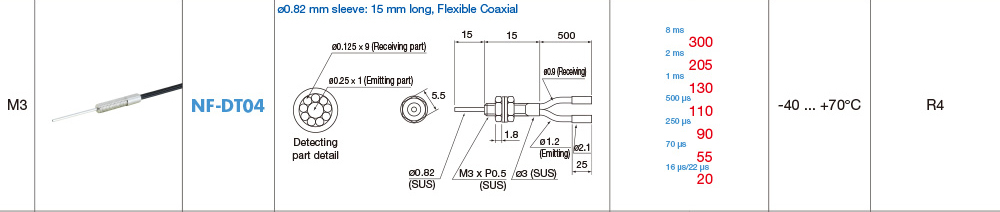

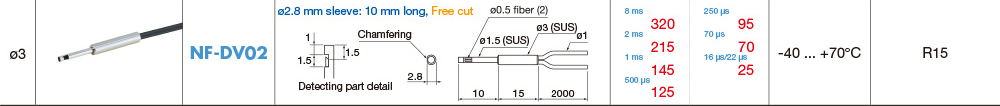

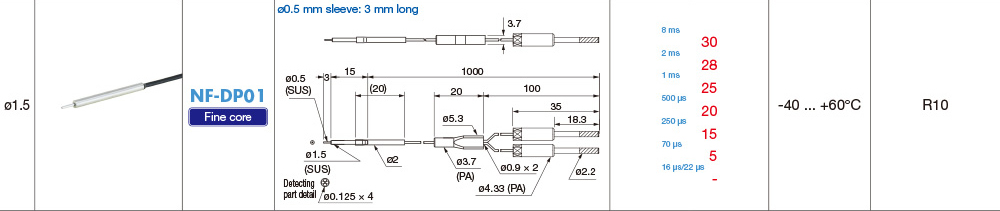

Side view type Fiber-Optic Cables (diffuse type)
*Download the drawing to check the tolerances.
Click the image to enlarge.
•The sensing distances for the diffuse type Fiber-Optic Cables are values on 500 ☓ 500 mm white paper.
•Install with an ambient humidity between 35 and 85%. In the case of 85% RH, the ambient temperature should be between 0 and 40℃.
