Fiber-Optic CablesNF Series Sleeve/Side view type

DOWNLOAD

The fine tip makes mounting highly flexible
and adjusting position very easy

  • Long sleeve type can be bent (Straight view type)
  • Side angle light beam provides optimal detection in narrow places (Side view type)
    • NF-TV01-5: End of sales by April 2026
NF Series Sleeve/Side view type

Through-beam type

*Download the PDF to check the sensing distance and dimensions.


*Download the CAD data to confirm the tolerances.

Type Model Shape of fiber head
[mm]		 Sleeve Optical axis
direction		 Optical axis
diameter
[mm]		 Fiber
length		 Min. bending
radius
[mm]		 Ambient
temperature
[℃]

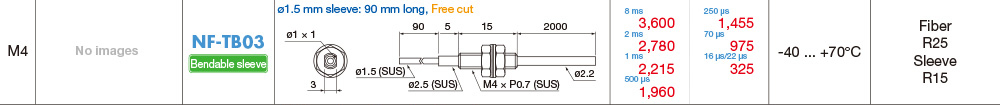

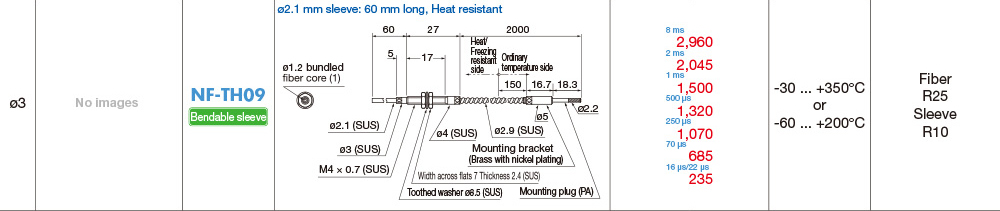

M4 NF-TB03 ø1.5 mm
90 mm long
Bendable*1		 Straight view ø1.0 2 m
Free-cut		 Fiber R25
Sleeve R15		 -40 ... +70
M3

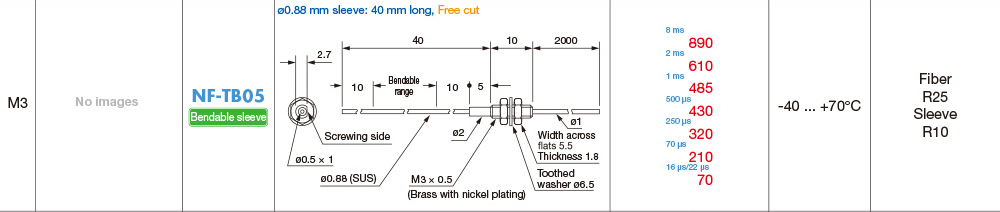

Fine sleeve		 NF-TB05 ø0.88 mm
40 mm long
Bendable*1		 Straight view ø0.5 2 m
Free-cut		 Fiber R25
Sleeve R15		 -40 ... +70
M3

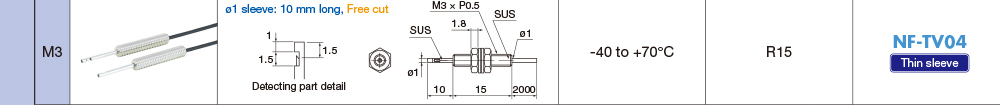

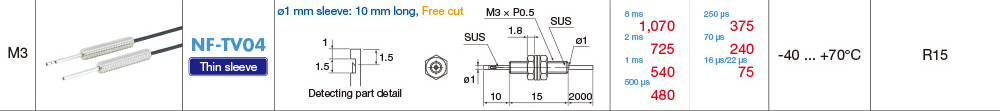

Thin sleeve		 NF-TV04 ø1 mm
10 mm long		 Side view ø1.5 2 m
Free-cut		 R15 -40 ... +70
ø3

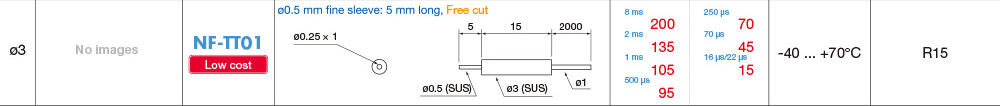

Fine sleeve		 NF-TT01 ø0.5 mm
5 mm long		 Straight view ø0.25 2 m
Free-cut		 R5 -40 ... +70

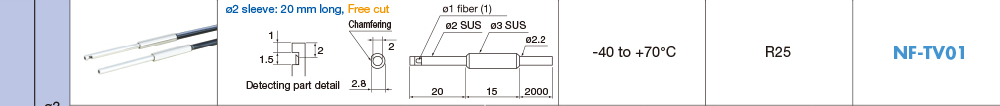

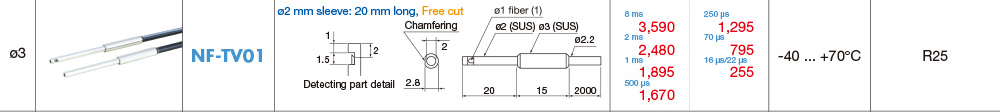

ø3 NF-TV01 ø2 mm
20 mm long		 Side view ø1.5 2 m
Free-cut		 R25 -40 ... +70

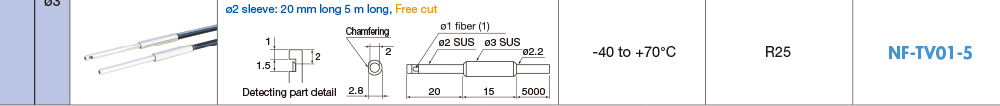

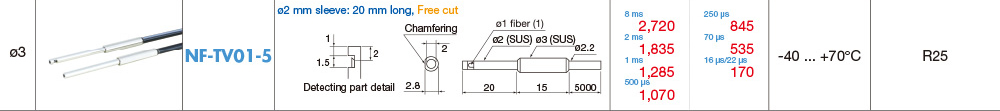

NF-TV01-5 ø2 mm
20 mm long		 Side view ø1.5 5 m
Free-cut		 R25 -40 ... +70
ø2.5

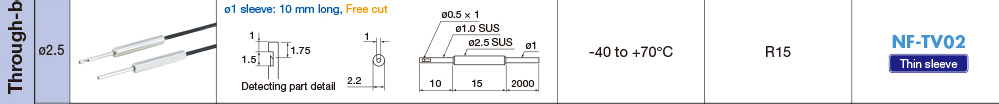

Thin sleeve		 NF-TV02 ø1 mm
10 mm long		 Side view ø1.5 2 m
Free-cut		 R15 -40 ... +70
ø2

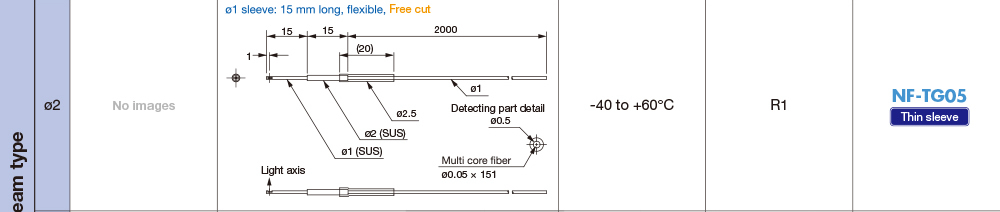

Thin sleeve		 NF-TG05 ø1 mm
15 mm long		 Side view ø0.5 2 m
Free-cut		 R1 -40 ... +60
ø4

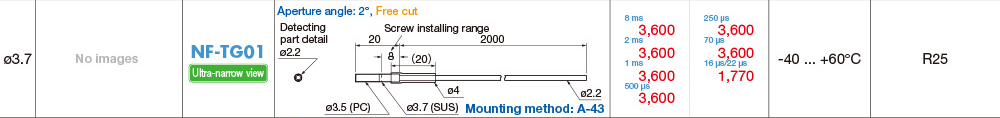

Ultra-narrow

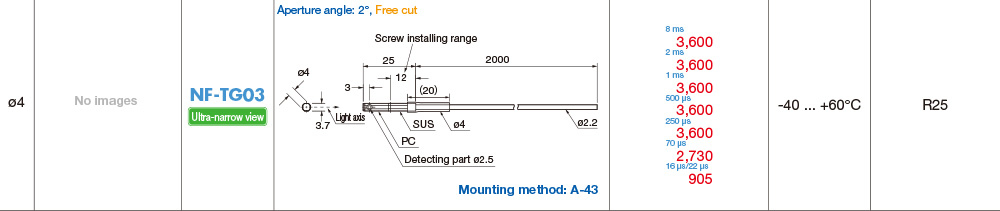

view		 NF-TG03 - Side view ø2.5 2 m
Free-cut		 R25 -40 ... +60

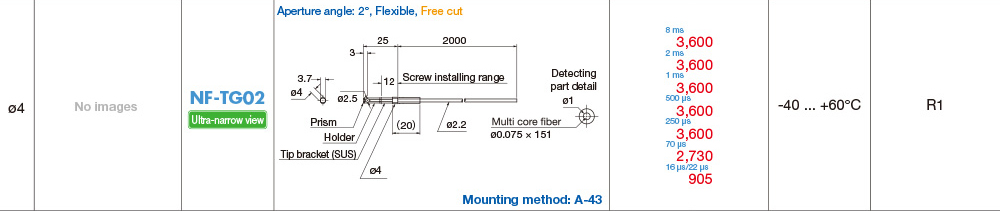

NF-TG02 - Side view ø2.5 2 m
Free-cut		 R1 -40 ... +55

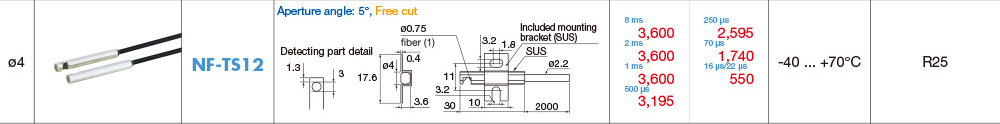

ø4 NF-TS12 - Side view ø3.0 2 m
Free-cut		 R20 -40 ... +70

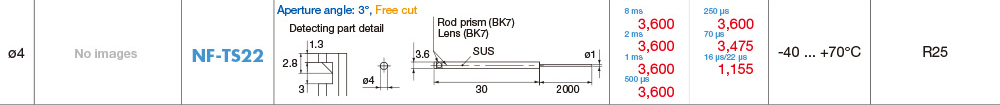

NF-TS22 - Side view ø3.0 2 m
Free-cut		 R25 -40 ... +70
2 x 1.5

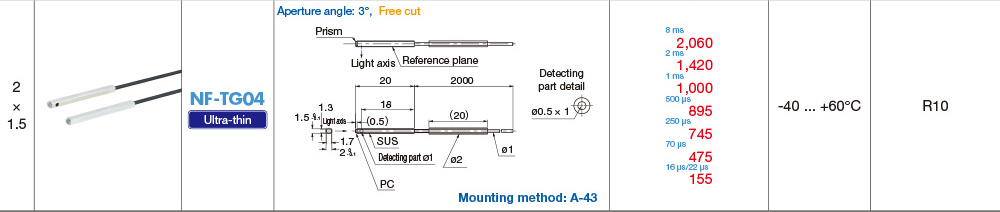

Ultra-thin		 NF-TG04 - Side view ø1.0 2 m
Free-cut		 R10 -40 ... +60

•Install with an ambient humidity between 35 and 85%. In the case of 85% RH, the ambient temperature should be between 0 and 40℃.
•The optical axis diameter is an approximate value.
*1. Please bend the sleeve at an angle of 90°or less.

Diffuse-reflective type

*Download the PDF to check the sensing distance and dimensions.


*Download the CAD data to confirm the tolerances.

Type Model Shape of fiber head
[mm]		 Sleeve Optical axis
direction		 Fiber
length		 Min. bending
radius
[mm]		 Ambient
temperature
[℃]
M6 NF-DB06 ø2.5 mm
40 mm long
Bendable*1		 Straight view 2 m
Free-cut		 Fiber R25
Sleeve R10		 -40 ... +70
NF-DB02 ø2.5 mm
90 mm long
Bendable *1		 Straight view 2 m
Free-cut		 Fiber R25
Sleeve R20		 -40 ... +70
M4 NF-DB08 ø1.48 mm
40 mm long
Bendable*1		 Straight view 2 m
Free-cut		 Fiber R25
Sleeve R10		 -40 ... +70
NF-DT05 ø1.5 mm
28 mm long		 Straight view 2 m
Free-cut		 R15 -40 ... +70
NF-DM03 ø1.5 mm
90 mm long
Bendable*1		 Straight view 2 m
Free-cut		 Fiber R15
Sleeve R10		 -40 ... +70
NF-DR10 ø1.48 mm
40 mm long
Bendable*1		 Straight view 2 m
Free-cut		 Fiber R1
Sleeve R10		 -40 ... +60
M3
Coaxial
Fine sleeve		 NF-DB05 ø0.8 mm
15 mm long		 Straight view 1 m R25 -20 ... +60
NF-DT04 ø0.82 mm
15 mm long		 Straight view 0.5 m R5 -40 ... +70
M3
Fine sleeve		 NF-DT02 ø0.82 mm
15 mm long		 Straight view 0.5 m
Free-cut		 R5 -40 ... +70
ø4 NF-DK43 ø1.5 mm
20 mm long		 Straight view 2 m
Free-cut		 R15 -40 ... +70
ø3
Fine sleeve		 NF-DR05 ø0.82 mm
5 mm long		 Straight view 0.5 m R5 -40 ... +70
NF-DR07 ø0.82 mm
80 mm long		 Straight view 1 m R5 -40 ... +70
ø1.5
Fine sleeve		 NF-DP01 ø0.5 mm
3 mm long		 Straight view 1 m R10 -40 ... +60
M6 NF-DV03 ø2.7 mm
20 mm long		 Side view 2 m
Free-cut		 R25 -40 ... +70
ø5 NF-DK33 ø2.7 mm
65 mm long		 Side view 2 m
Free-cut		 R25 -40 ... +70
NF-DV01 ø2.7 mm
20 mm long		 Side view 2 m
Free-cut		 R25 -40 ... +70
ø3 NF-DR12 ø2 mm
15 mm long		 Side view 2 m
Free-cut		 R1 -40 ... +60
NF-DV02 ø1.5 mm
10 mm long		 Side view 2 m
Free-cut		 R15 -40 ... +70

•Install with an ambient humidity between 35 and 85%. In the case of 85% RH, the ambient temperature should be between 0 and 40℃.
*1. Please bend the sleeve at an angle of 90°or less.
