Fiber-Optic CablesNF Series Flexible type (R1 mm, R2 mm)
Easy to handle Fiber-Optic Cables with a bending radius of 1 mm or 2 mm
- Extra space is unnecessary as the bending radius is 1 mm or 2 mm. Also prevents snagging
- Over 30 types are available, including through-beam types and diffuse types
Mounting method
■ NF-TG02
∙ Please be aware that because the aperture angle of this product is extremely narrow, light may not be taken in depending on installation conditions.
Through-beam type

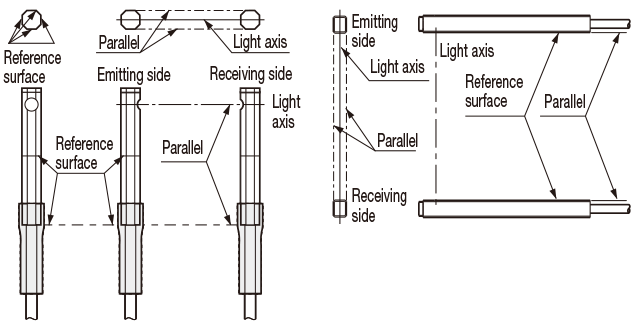

∙ When installing, determine a reference surface as shown in the diagram below while paying sufficient attention in regards to light axis shifting and slanting. Install so that emitting/receiving fibers are parallel.
■ Fibers with positioning bosses
NF-TE01/NF-DE01 (Flat ON type)

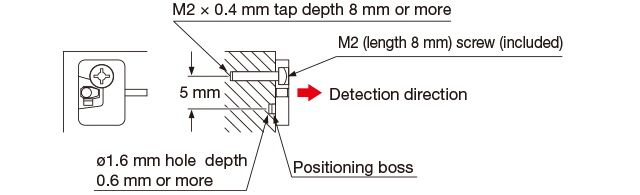

If cutting a tap into the mounting surface

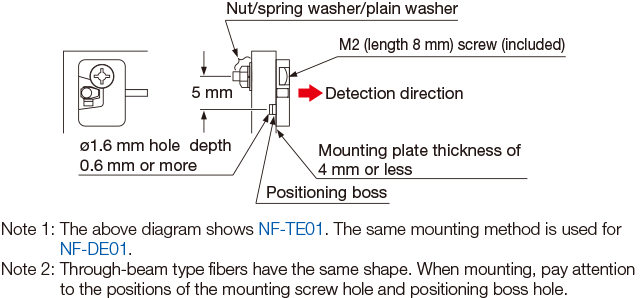

If using the included screw/nut
■ NF-TZ07/-TZ09
・Please be aware that because the aperture angle of this product is extremely narrow, light may not be taken in depending on installation conditions.
・When installing, determine a reference surface as shown in the diagram below while paying sufficient attention in regards to light axis shifting and slanting. Install so that emitting/receiving fibers are parallel.
Notes about the included slit masks
•There are two types of slit masks for NF-TZ09 and one type for NF-TZ07 included with these products.
These slit masks can be used when detecting small objects or for preventing light saturation when using the fibers at close range. However, applying slit masks shortens the sensing distance.
Because the slit masks are of an adhesive type, when applying them to the fibers, align the slit projection with the top of the fiber as shown in the diagram on the upper right.

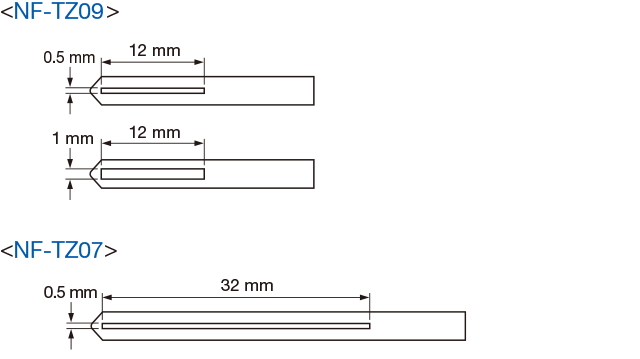

Included slit masks
How to apply
NF-TE02/NF-DE02 (Head ON type)
If cutting a tap into the mounting surface
If using the included screw/nut

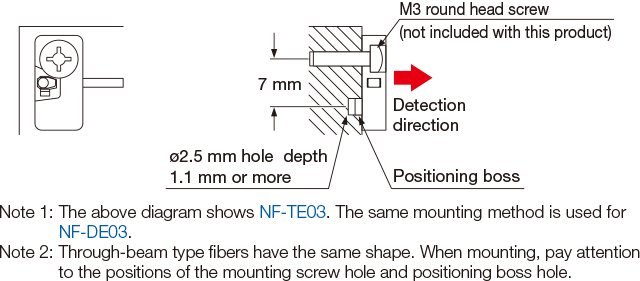

NF-TE03/NF-DE03 (Flat ON type)

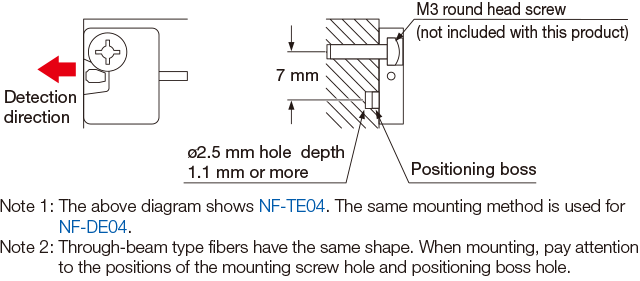

NF-TE04/NF-DE04 (Head ON type)
■ NF-DR09/-RR0
If not using the included mounting bracket
•Using a set screw (cup point of M3 or smaller), mount within 15 mm of head portion bracket edge.
If using the included mounting bracket
・The head portion can be secured even without use of a set screw.
・If using a set screw, secure using a set screw with an M3 cup point.

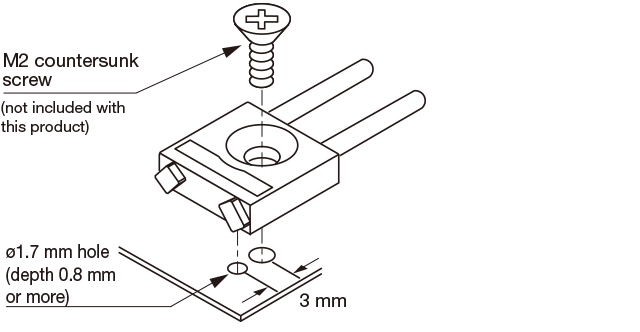

■ NF-DC08
•Use an M2 countersunk screw (not included with this product).
The positioning boss insertion holes on the bottom surface need to be ø1.7 mm and at least 0.8 mm deep.
