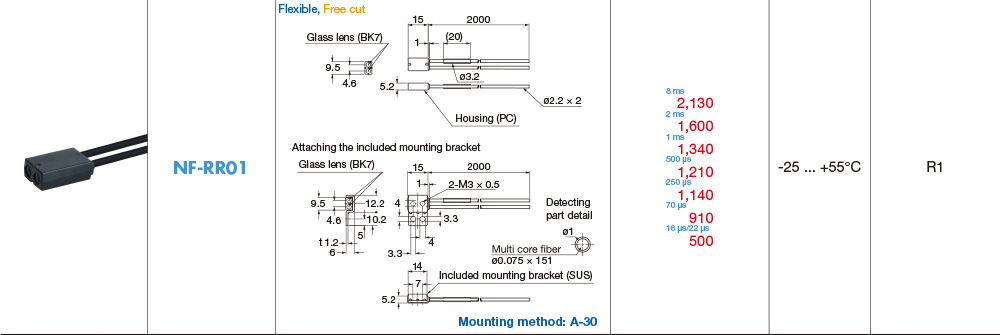

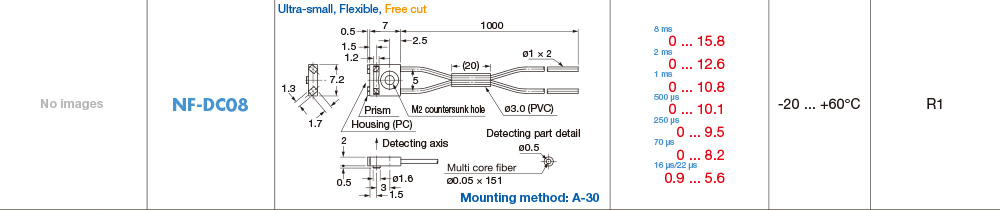

Fiber-Optic CablesNF Series Flexible type (R1 mm, R2 mm)
Easy to handle Fiber-Optic Cables with a bending radius of 1 mm or 2 mm
- Extra space is unnecessary as the bending radius is 1 mm or 2 mm. Also prevents snagging
- 30 types are available, including through-beam types and diffuse-reflective types
Mounting method
NF-TG02
・Please be aware that because the aperture angle of this product is extremely narrow, light may not be taken in depending on installation conditions.
Through-beam type
・When installing, determine a reference surface as shown in the diagram below while paying sufficient attention in regards to light axis shifting and slanting. Install so that emitting/receiving fibers are parallel.
■ Fibers with positioning bosses
NF-TE01/NF-DE01 (Flat view type)
If cutting a tap into the mounting surface
If using the included screw/nut
NF-TE02/NF-DE02 (Straight view type)
If cutting a tap into the mounting surface
If using the included screw/nut
NF-TE03/NF-DE03 (Flat view type)
NF-TE04/NF-DE04 (Straight view type)
NF-DR09
If not using the included mounting bracket
・Using a set screw (cup point of M3 or smaller), mount within 15 mm of head portion bracket edge.
If using the included mounting bracket
・The head portion can be secured even without use of a set screw.
・If using a set screw, secure using a set screw with an M3 cup point.
