Fiber-Optic CablesNF Series Flat/Square type
Square type with mounting hole that can be installed easily
- An adjustable mounting type that switches between Head ON/Side ON switchable type is also available
- Head ON, Side ON and Flat ON types are available
- Bending radius of R1 mm NF-TE05, NF-TR05, NF-TR06:
End of sales by August 2025
Mounting method
■ Fibers with positioning bosses
NF-TE01/NF-DE01 (Flat ON type)

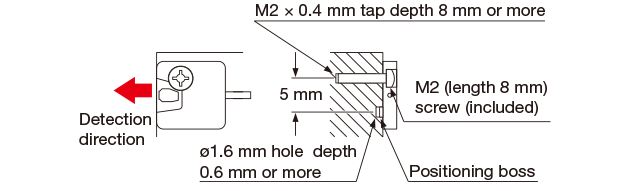

If cutting a tap into the mounting surface
If using the included screw/nut
NF-TE02/NF-DE02 (Head ON type)
If cutting a tap into the mounting surface

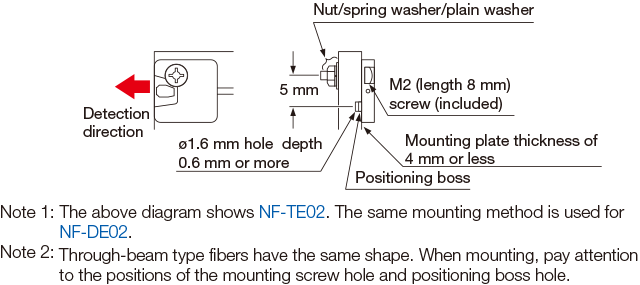

If using the included screw/nut
NF-TE03/NF-DE03 (Flat ON type)
NF-TE04/NF-DE04 (Head ON type
■ NF-DR09
If not using the included mounting bracket
•Using a set screw (cup point of M3 or smaller), mount within 15 mm of head portion bracket edge.
If using the included mounting bracket
・The head portion can be secured even without use of a set screw.
・If using a set screw, secure using a set screw with an M3 cup point.
