Fiber-Optic CablesNF Series Flat/Square type
Square type with mounting hole that can be installed easily
- An adjustable mounting type that switches between Head ON/Side ON switchable type is also available
- Head ON, Side ON and Flat ON types are available
- Bending radius of R1 mm NF-TE05, NF-TR05, NF-TR06:
End of sales by August 2025

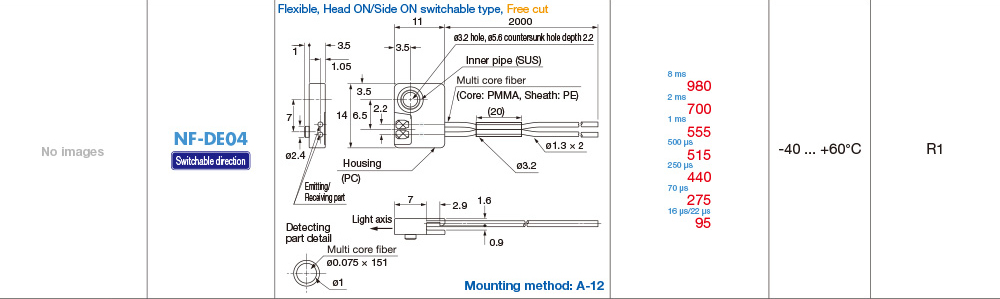

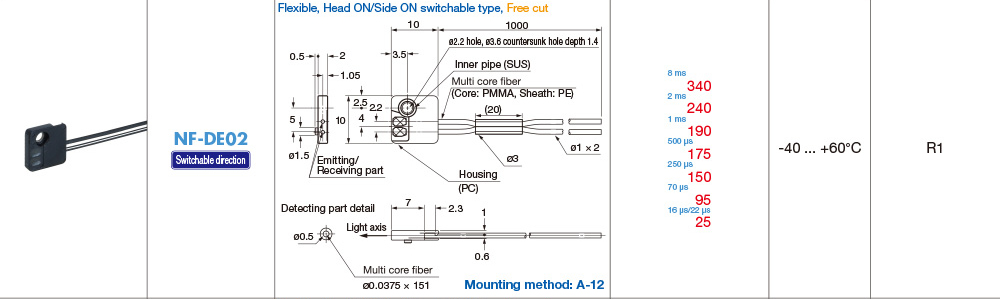

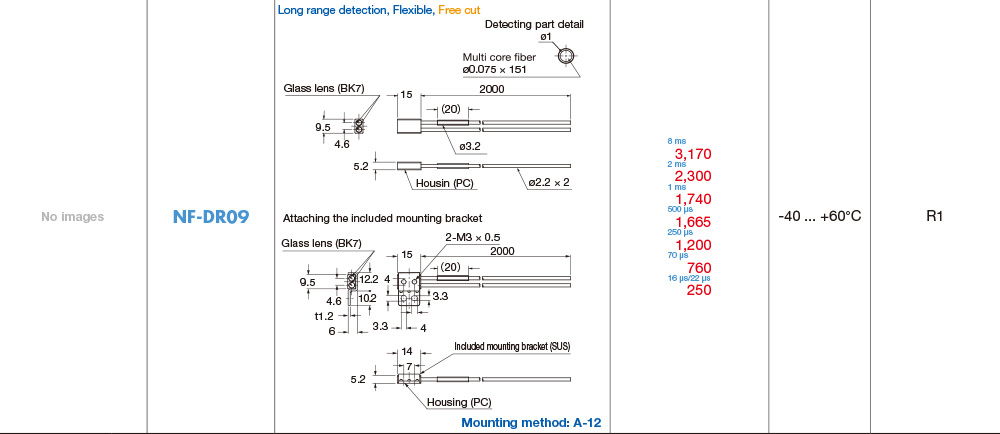

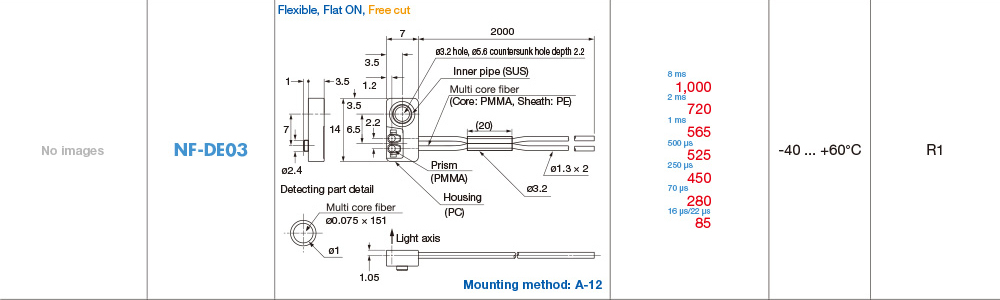

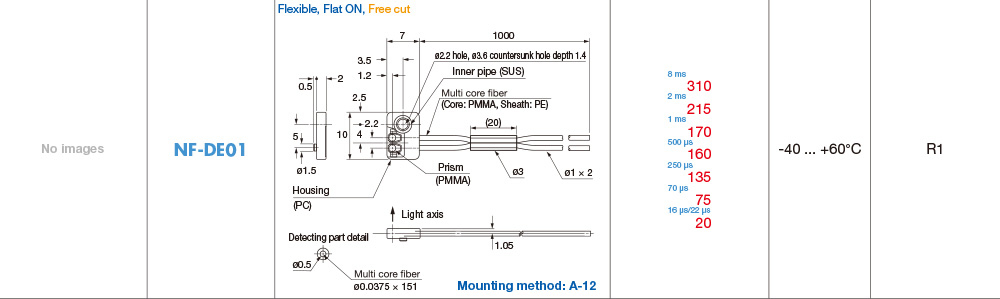

Flat type Fiber-Optic Cables (diffuse type)
*Download the drawing to check the tolerances.
Click the image to enlarge.
●The sensing distances for the diffuse type Fiber-Optic Cables are values on 500 x 500 mm white paper.
●Install with an ambient humidity between 35 and 85%. In the case of 85% RH, the ambient temperature should be between 0 and 40℃.

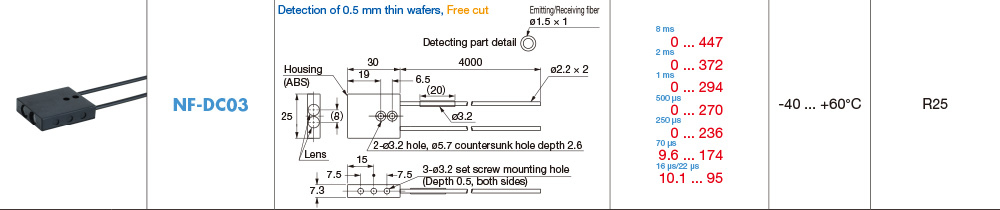

Square type Fiber-Optic Cables (diffuse type)
*Download the drawing to check the tolerances.
Click the image to enlarge.
●The sensing distances for the diffuse type Fiber-Optic Cables are values on 500 x 500 mm white paper.
●Install with an ambient humidity between 35 and 85%. In the case of 85% RH, the ambient temperature should be between 0 and 40℃.
Square type Fiber-Optic Cables (limited diffuse type)
Download of Sensing Distance List.
●The sensing distances for the diffuse type Fiber-Optic Cables are values on 500 x 500 mm white paper.
●Install with an ambient humidity between 35 and 85%. In the case of 85% RH, the ambient temperature should be between 0 and 40℃.
