Fiber-Optic CablesNF Series Flat/Square type
Flat/Square type with mounting hole that can be installed easily
- An adjustable mounting type that switches between Straight view/Side view switchable type is also available
- Straight view, Side view and Flat view types are available
- Bending radius of R1 mm NF-TE05, NF-TR05, NF-TR06:
End of sales by August 2025
Through-beam type
*Download the PDF to check the sensing distance and dimensions.
*Download the CAD data to confirm the tolerances.
| Type | Model | Shape of fiber head [mm] |
Optical axis direction |
Optical axis diameter [mm] |
Fiber length |
Min. bending radius [mm] |
Ambien temperature [℃] |
|---|---|---|---|---|---|---|---|

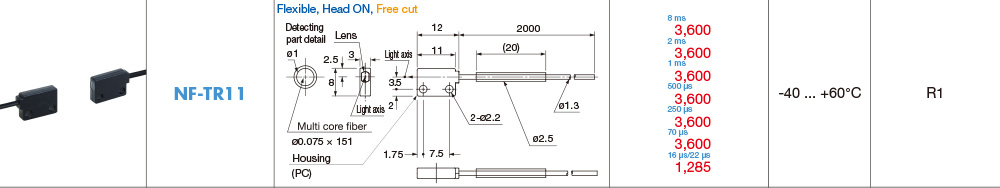

| Flat | NF-TR11 |  |
Straight view | ø1.0 | 2 m Free-cut |
R1 | -40 ... +60 |

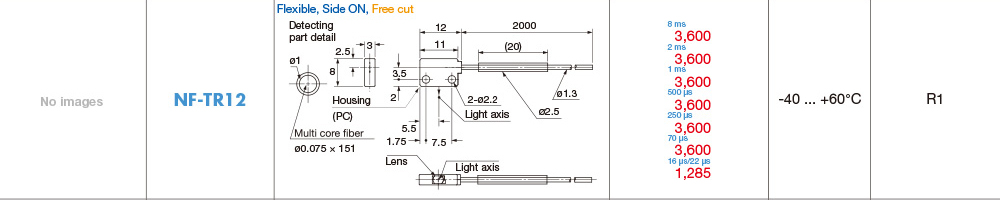

| NF-TR12 |  |
Side view | ø1.0 | 2 m Free-cut |
R1 | -40 ... ＋60 | |

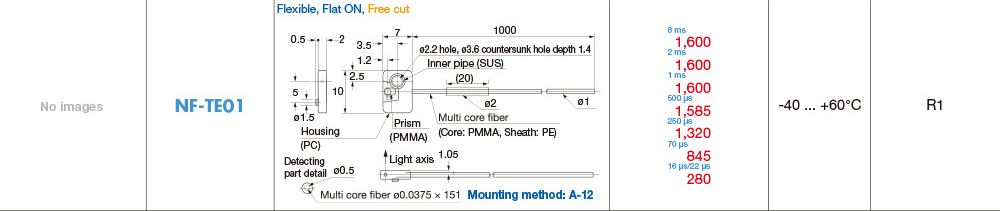

| NF-TE01 |  |
Flat view | ø0.5 | 1 m Free-cut |
R1 | -40 ... +60 | |

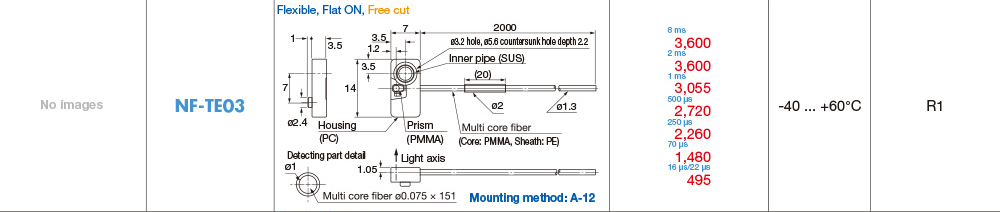

| NF-TE03 |  |
Flat view | ø1.0 | 2 m Free-cut |
R1 | -40 ... +60 | |

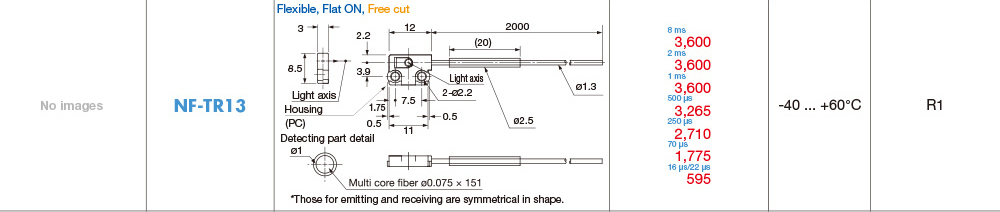

| NF-TR13 |  |
Flat view | ø1.0 | 2 m Free-cut |
R1 | -40 ... +60 | |

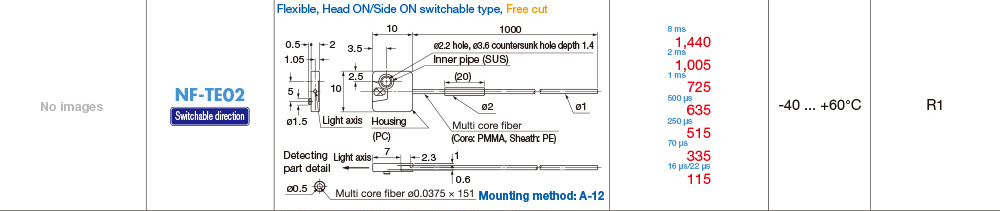

| NF-TE02 |  |
Straight view/ Side view switchable type |
ø0.5 | 1 m Free-cut |
R1 | -40 ... +60 | |
| NF-TE04 |  |
Straight view/ Side view switchable type |
ø1.0 | 2 m Free-cut |
R1 | -40 ... +60 |
●Install with an ambient humidity between 35 and 85%. In the case of 85% RH, the ambient temperature should be between 0 and 40℃.
●The optical axis diameter is an approximate value.
Diffuse-reflective type
*Download the PDF to check the sensing distance and dimensions.
*Download the CAD data to confirm the tolerances.
| Type | Model | Shape of fiber head [mm] |
Optical axis direction |
Fiber length |
Min. bending radius [mm] |
Ambient temperature [℃] |
|---|---|---|---|---|---|---|
| Flat | NF-DE01 |  |
Flat view | 1 m Free-cut |
R1 | -40 ... +60 |
| NF-DE03 |  |
Flat view | 2 m Free-cut |
R1 | -40 ... +60 | |
| NF-DE02 |  |
Straight view/ Side view switchable type |
1 m Free-cut |
R1 | -40 ... +60 | |
| NF-DE04 |  |
Straight view/ Side view switchable type |
2 m Free-cut |
R1 | -40 ... +60 | |
| Square Long range detection |
NF-DR09 |  |
Straight view | 2 m Free-cut |
R1 | -40 ... +60 |
●Install with an ambient humidity between 35 and 85%. In the case of 85% RH, the ambient temperature should be between 0 and 40℃.
