Fiber-Optic CablesNF Series Cylindrical type

DOWNLOAD

Set screw mounted compact Fiber-Optic Cables

  • Compact and space-saving
  • Selection is possible from among three types including fine core, side view and standard
  • NF-TR04: End of sales by August 2025
NF Series Cylindrical type

Mounting method

NF-TG01

・Please be aware that because the aperture angle of this product is extremely narrow, light may not be taken in depending on installation conditions.

Through-beam type

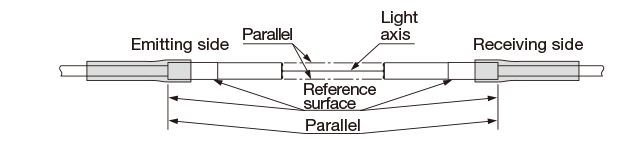

・When installing, determine a reference surface as shown in the diagram below while paying sufficient attention in regards to light axis shifting and slanting. Install so that emitting/receiving fibers are parallel.
