Fiber UnitCYLINDRICAL TYPE Series

DOWNLOAD

Set screw mounted compact fiber unit

  • Compact and space-saving.
  • Selection is possible from among three types including fine core, side view and standard.
CYLINDRICAL TYPE Series

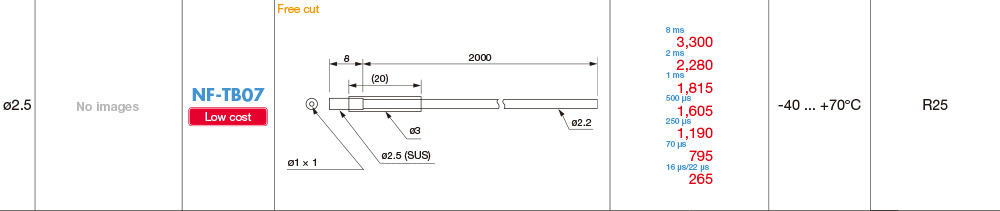

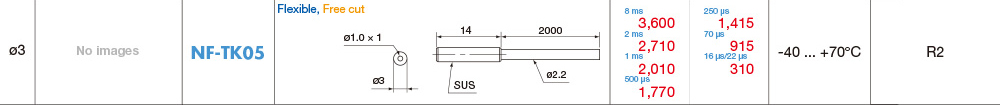

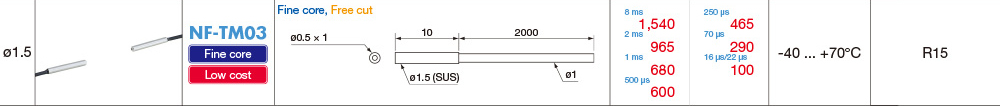

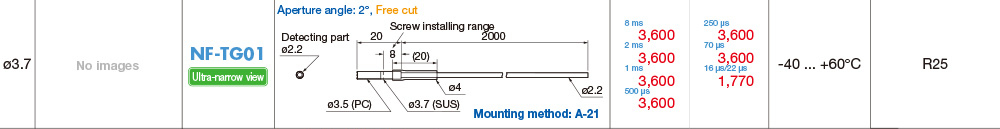

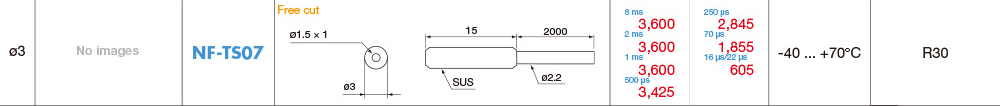

Cylindrical fiber units (through-beam type)


•Install with an ambient humidity between 35 and 85%. In the case of 85% RH, the ambient temperature should be between 0 and 40℃.

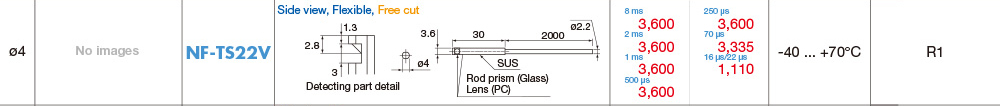

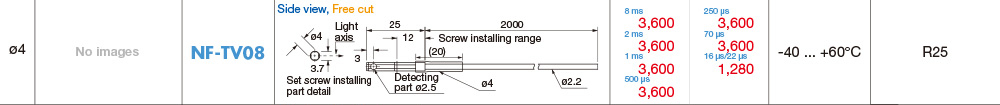

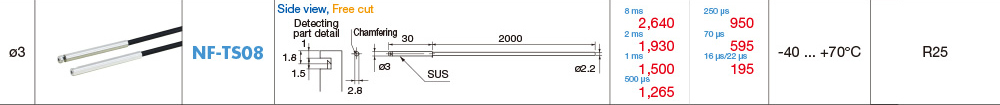

Cylindrical fiber units (through-beam type: side view type)


•Install with an ambient humidity between 35 and 85%. In the case of 85% RH, the ambient temperature should be between 0 and 40℃.
