Fiber-Optic CablesNF Series Cylindrical type
Set screw mounted compact Fiber-Optic Cables
- Compact and space-saving
- Selection is possible from among three types including fine core, side view and standard NF-TR04: End of sales by August 2025

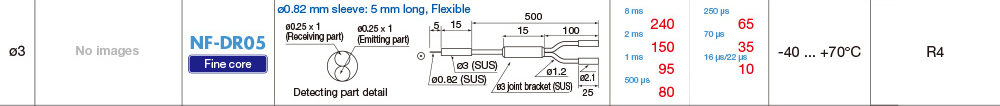

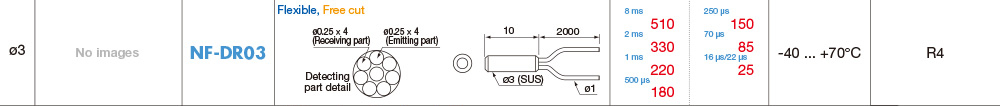

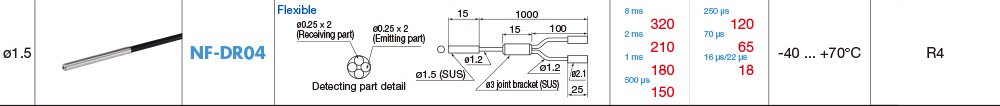

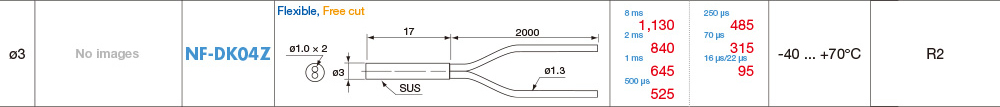

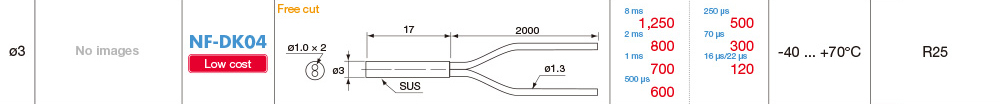

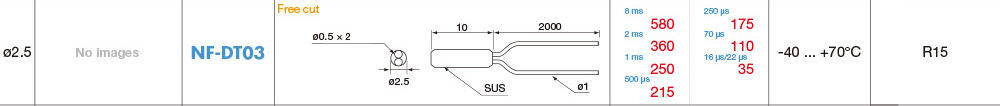

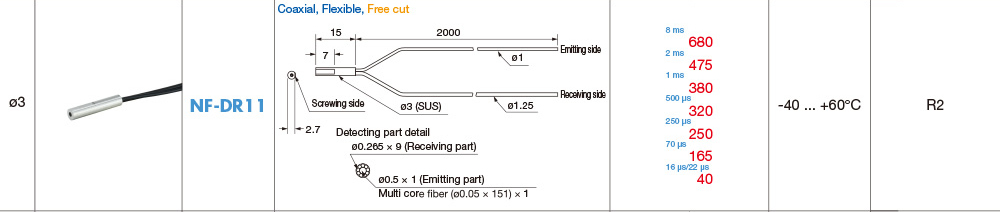

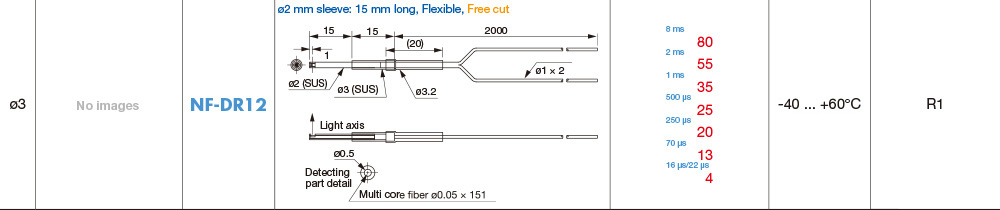

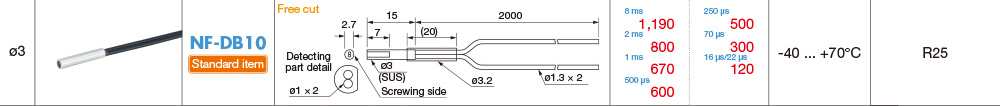

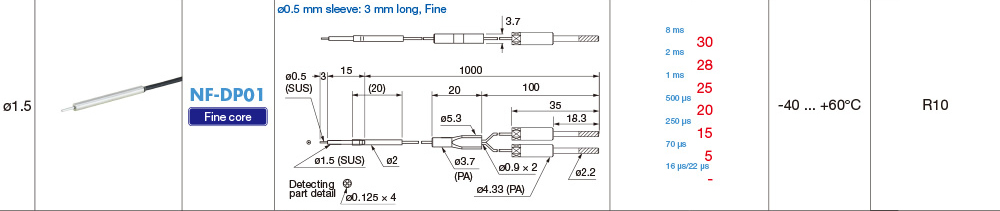

Cylindrical Fiber-Optic Cables (diffuse type)
*Download the drawing to check the tolerances.
Click the image to enlarge.
•The sensing distances for the diffuse type Fiber-Optic Cables are values on 500 x 500 mm white paper.
•Install with an ambient humidity between 35 and 85%. In the case of 85% RH, the ambient temperature should be between 0 and 40℃.
Cylindrical Fiber-Optic Cables (diffuse type : side view type)
*Download the drawing to check the tolerances.
Click the image to enlarge.
•The sensing distances for the diffuse type Fiber-Optic Cables are values on 500 x 500 mm white paper.
•Install with an ambient humidity between 35 and 85%. In the case of 85% RH, the ambient temperature should be between 0 and 40℃.
