Resin-filled SensorsJ Series

DOWNLOAD

Water resistant/vibration resistant resin filled and robust body

  • Passed 100-hour test for water and oil resistance
  • Achieved a level of vibration resistance far above that of JIS standards
  • Mounting hole pitch: 10 to 25.4 mm
J Series

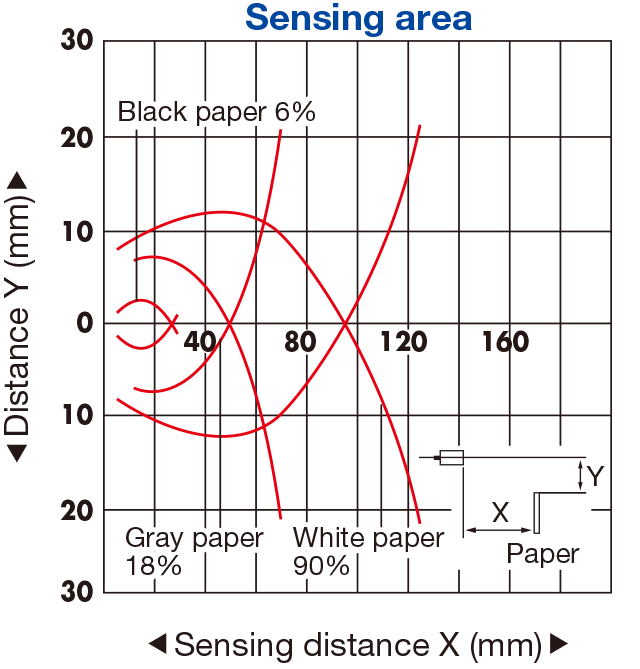

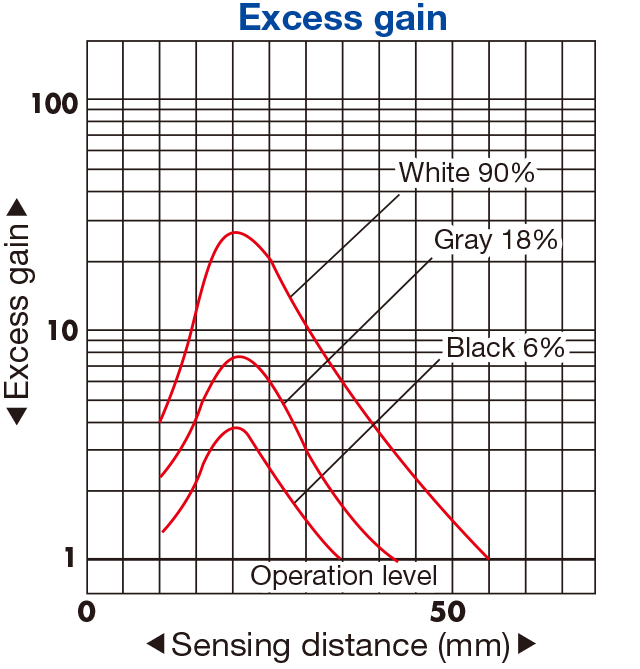

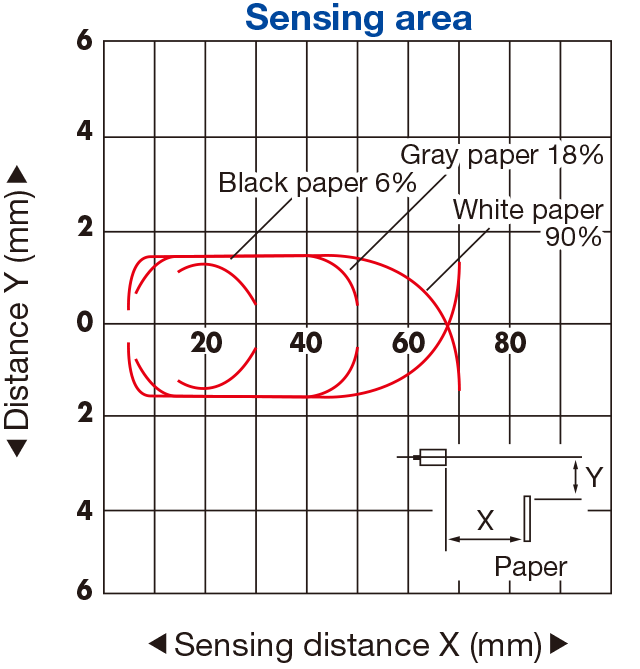

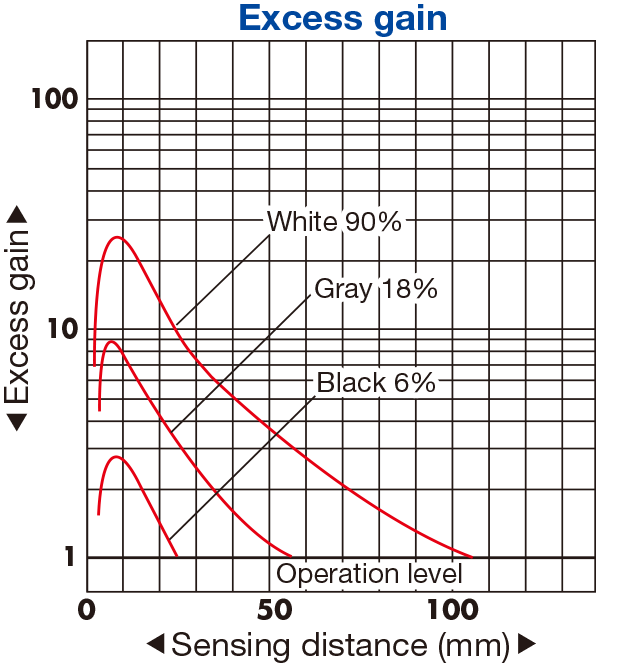

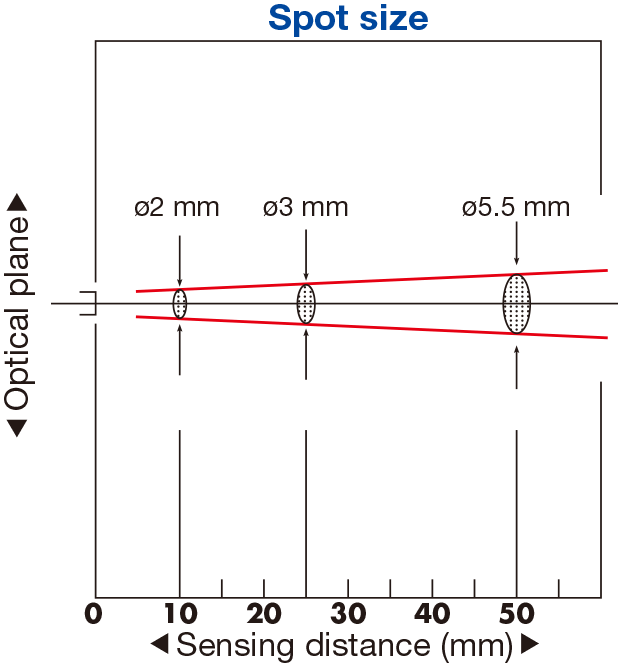

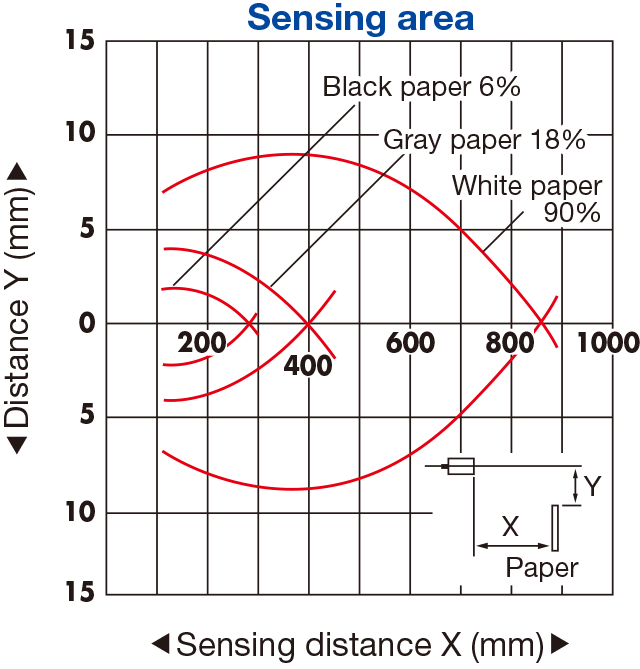

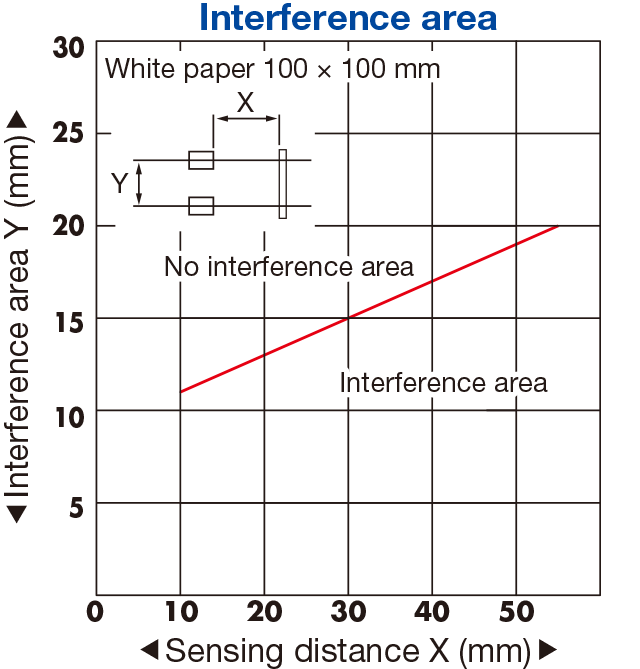

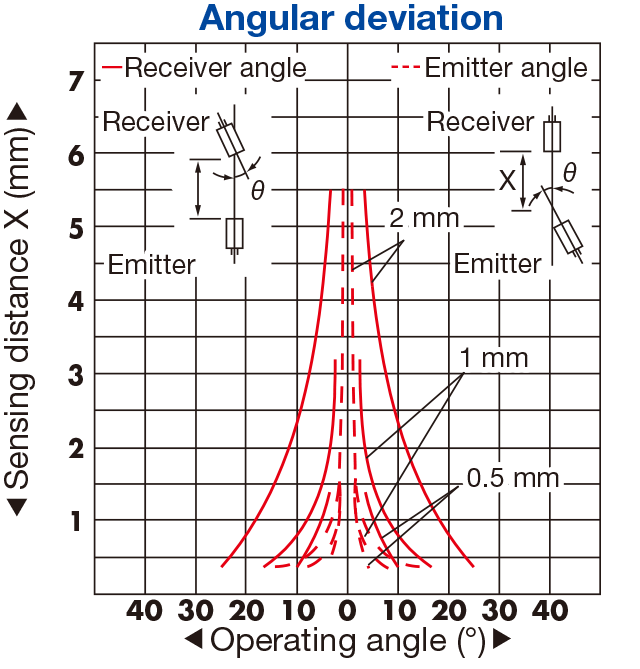

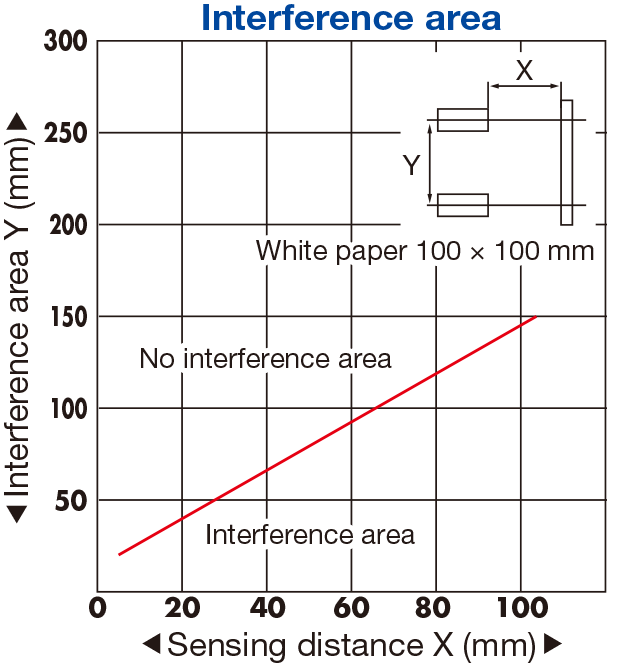

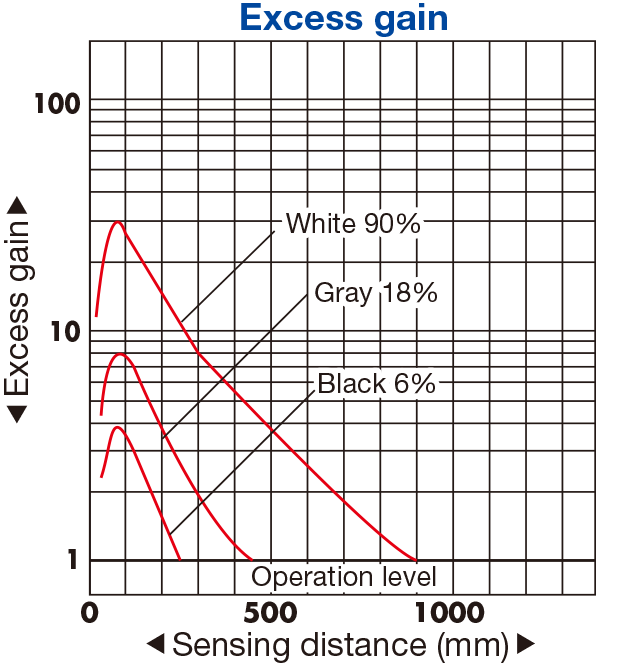

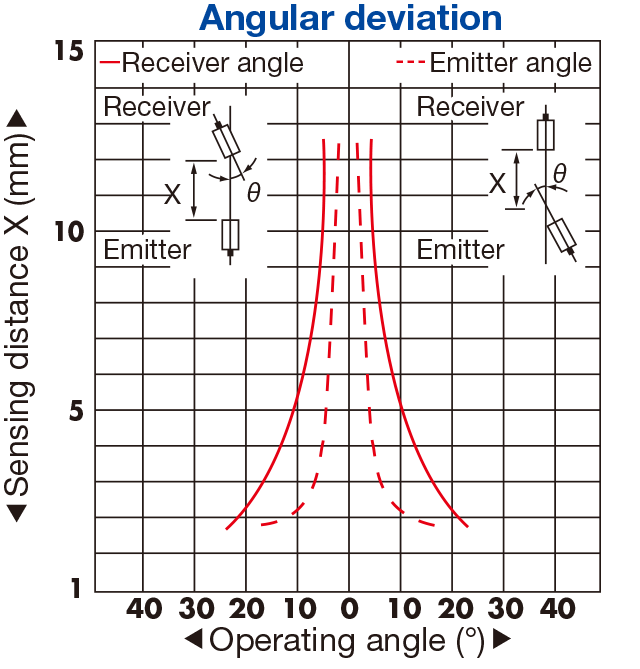

Typical characteristic data

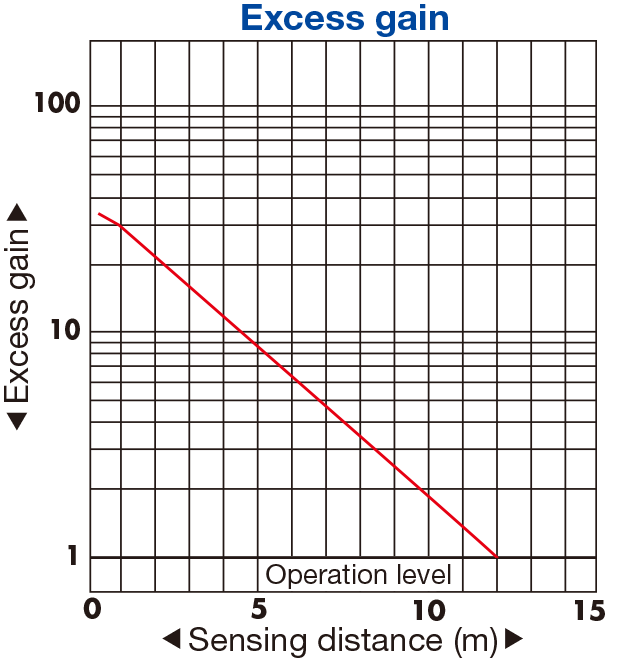

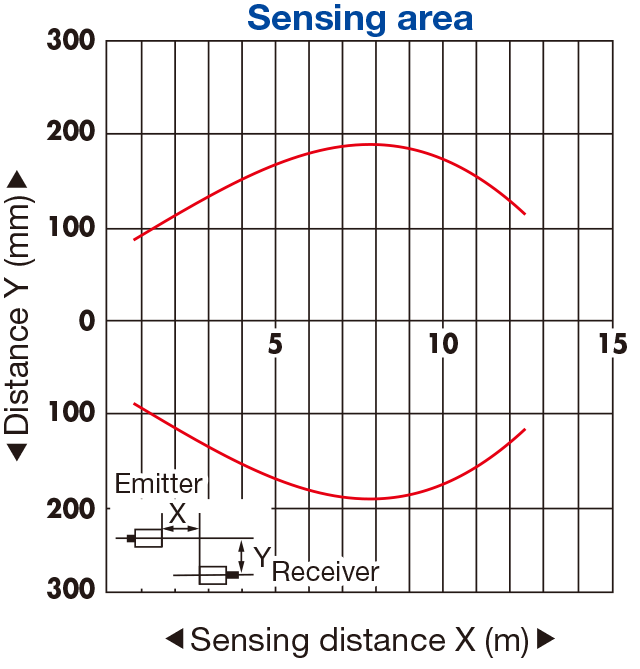

JT-H1000☐/JT-S1000☐

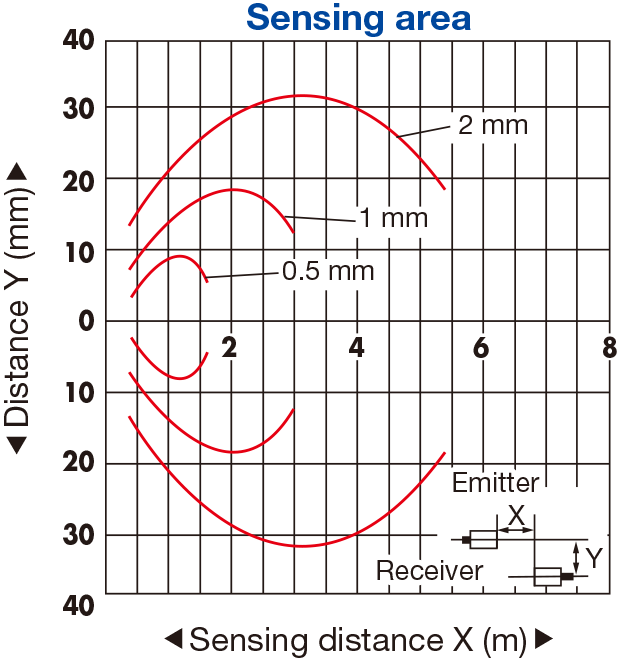

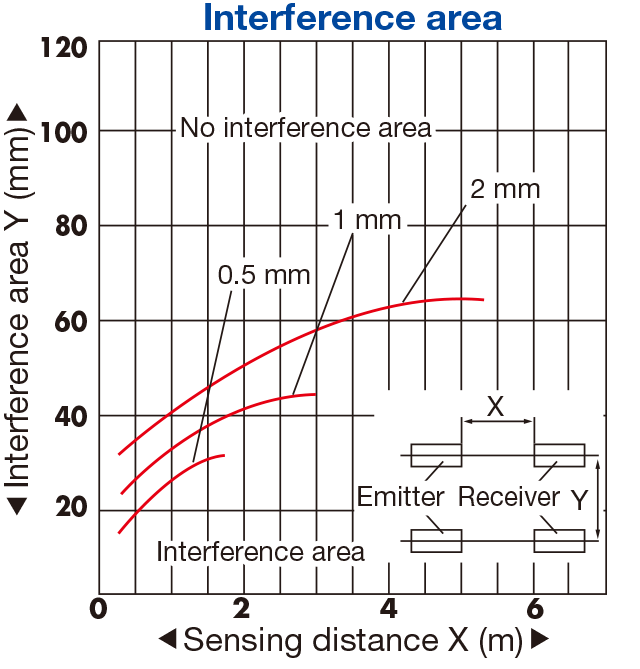

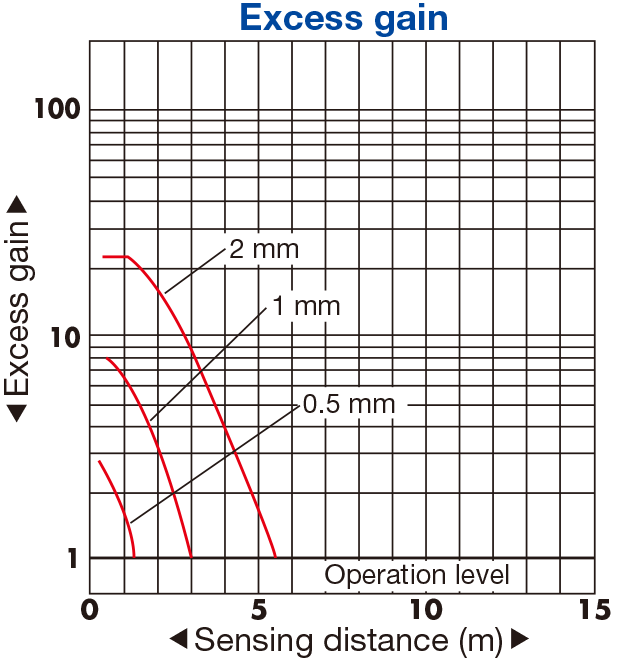

When slit mask is attached JT-H1000☐/JT-S1000☐

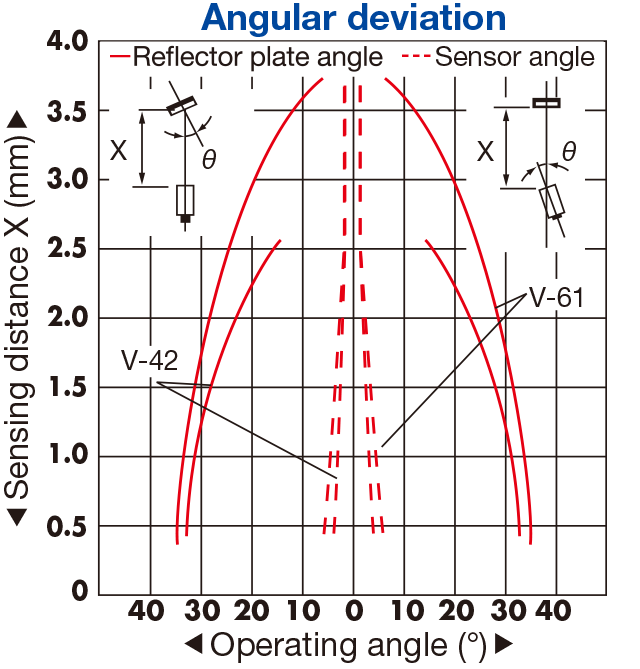

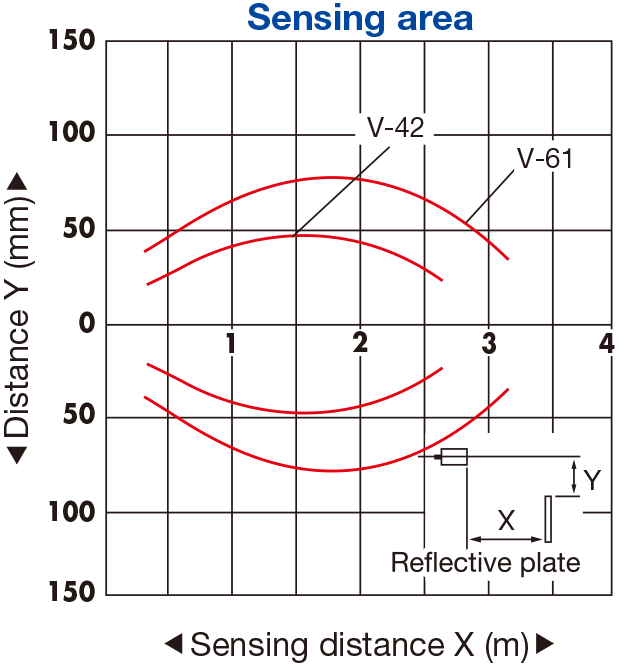

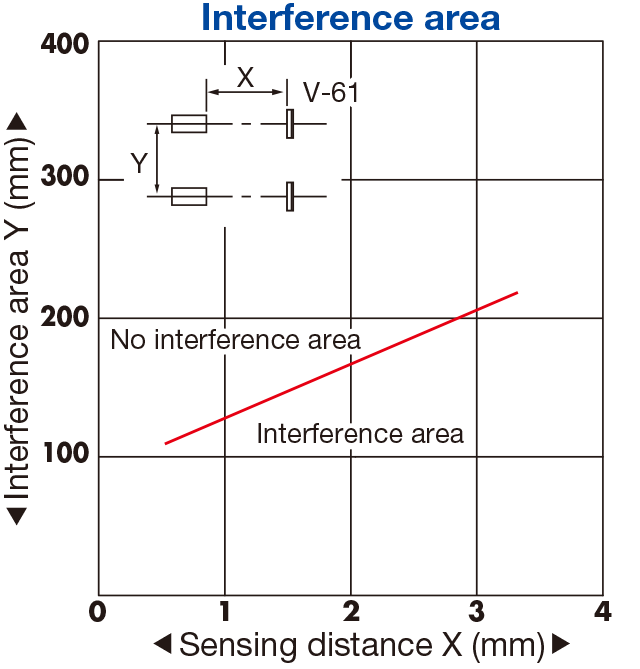

JR-H300☐/JR-S300☐

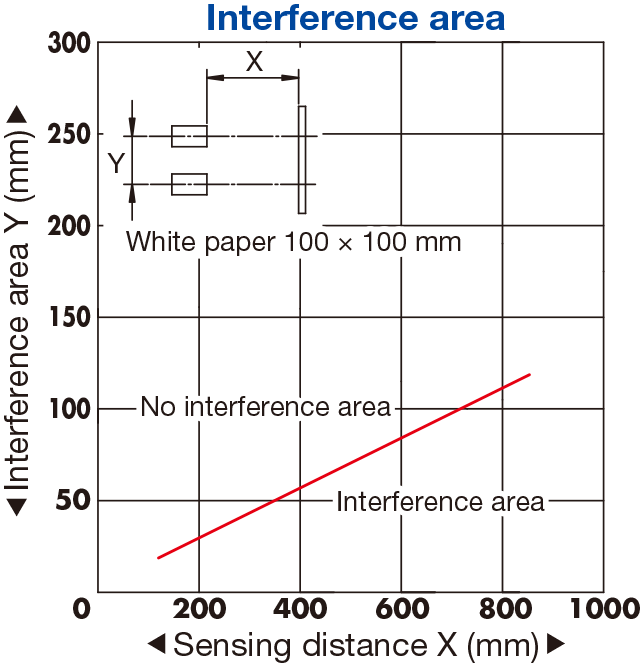

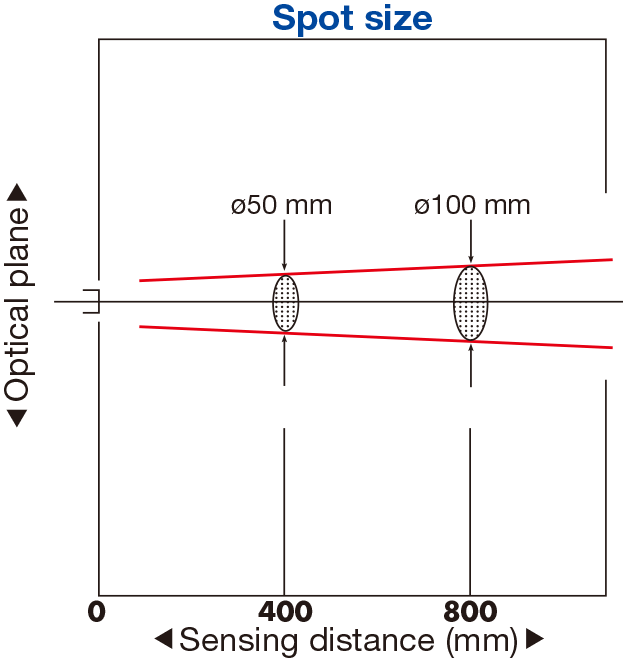

JD-HR80☐/JD-SR80☐

JD-HL03☐/JD-SL03☐

JD-HW08☐/JD-SW08☐
