Multifunction LED Lighting ControllerOPPX Series

DOWNLOAD

Full support for image inspection
with multifunctionality
and lighting brightness control

  • Support for 12 V and 24 V input lighting
  • Support for Mitsubishi Electric iQSS
  • Recognition of individual lighting and monitoring/feedback by the new technology FALUX sensing +
OPPX Series

Lineup

12 VDC output voltage type

Model Capacity Output voltage Ethernet No. of channels
OPPX-6012P2 60 W (30 W/channel) 12 V ― 2
OPPX-6012E2 ✓ 2
OPPX-12012P4 120 W (30 W/channel) ― 4
OPPX-12012E4 ✓ 4

24 VDC output voltage type

Model Capacity Output voltage Ethernet No. of channels
OPPX-10024P2 100 W (50 W/channel) 24 V ― 2
OPPX-10024E2 ✓ 2
OPPX-20024P4 200 W (50 W/channel) ― 4
OPPX-20024E4 ✓ 4

12 and 24 VDC output voltage compatible type

Model Capacity Output voltage Ethernet No. of channels
OPPX-1601224P4 160 W
(12 V: 30 W × 2 channels, 24 V: 50 W × 2 channels)		 12 V / 24 V ― 4
OPPX-1601224E4 ✓ 4

Specifications

Model Without Ethernet OPPX-6012P2 OPPX-12012P4 OPPX-1601224P4 OPPX-10024P2 OPPX-20024P4
With Ethernet OPPX-6012E2 OPPX-12012E4 OPPX-1601224E4 OPPX-10024E2 OPPX-20024E4
Supply voltage 24 VDC ±10%
Output channels 2 ch 4 ch 2 ch
(L1, L2)		 2 ch
(L3, L4)		 2 ch 4 ch
Connectable
illumination
ratings		 All channels max. 60 W 120 W 60 W 100 W 100 W 200 W
Max. per channel 30 W/ch 50 W/ch
Lighting
output
voltage		 PWM mode 12 VDC (standard) 24 VDC (standard)
STB mode*1 18 VDC 48 VDC
DC mode 8 to 12 VDC Low: 12 to 24 V, High: 18 to 24 V
L-INT mode 12 VDC 24 VDC
L-INT STB mode*1 18 VDC 36 VDC
Lighting
output
current		 PWM / DC / L-INT mode 2.5 A/ch 2.0 A/ch
STB / L-INT STB mode 8.0 A/ch (duty 10%) 5.0 A/ch (duty 7%)
Light intensity PWM intensity control, Frequency:
50 kHz, 100 kHz, 130 kHz
Voltage variable mode		 PWM intensity control, Frequency:
100 kHz, 130 kHz
Voltage variable mode
Strobe Illumination time*1 When PWM frequency 50 kHz is set:
20 μs to 19980 μs (in 20 μs steps), 1 ms to 999 ms (1 ms steps)
When PWM frequency 100 kHz and 100 kHz DC are set:
10 μs to 9990 μs (in 10 μs steps), 1 ms to 999 ms (1 ms steps)
When PWM frequency 130 kHz DC is set:
7.7 μs to 7684.6 μs (in 7.7 μs steps), 1 ms to 999 ms (in 1 ms steps)
*When 1 ms is exceeded: Driven at 12 VDC for 12 V type, and 24 VDC for 24 V type
Flash cycle limit 10% Duty (10 times or more than the
required pulse width cycle)		 7% Duty (14.3 times or more than the
required pulse width cycle)
Input External
synchronization
control pin
(SYNC1 to 4,
SEQRST)		 When 5 V
SYNC is OFF		 ON voltage: 12 to 24 V, OFF voltage: 1 V or less
Response time: OFF → ON within 2 μs, ON → OFF within 12 μs
When 5 V
SYNC is ON		 ON voltage: 5 to 24 V, OFF voltage: 1 V or less
Response time: OFF → ON within 86 μs, ON → OFF within 22 μs
External parallel control pin
Output Multi-function outputs with customizable content: 6 points
Photocoupler open collector output Max. 50 mA / 30 VDC, residual voltage 1.5 V (when 10 mA)
Communication
interfaces		 USB (Full-speed,
Type-C connector)		 Serial communication by virtual COM port
RS-232C 4800/9600/19200/38400/57600/115200 bps
Ethernet (10BASE-T/100BASE-TX)
*Only installed in
OPPX-□□□□E□		 UDP, TCP, DHCP, and iQSS (Mitsubishi Electric iQ Sensor Solution)
Ambient temperature/humidity 0 to 40°C / 20 to 85% RH (no condensation)
Storage temperature/humidity -20 to 70°C / 20 to 95% RH (no condensation)
Vibration resistance 10 to 55 Hz, double amplitude 1.5 mm; 2 hours in each of the X, Y, and Z directions
Shock resistance Approx. 10 G, 3 times in each of the X, Y, and Z directions
Material Polycarbonate
Weight 2 ch type: 260 g, 4 ch type: 360 g
Degree of protection IP20 (IEC 60529)
Applicable
regulations		 EMC*2 EU EMC directive (2014/30/EU)
UK directive EMC (The Electromagnetic Compatibility Regulations 2016)
Environment

EU RoHS directive (2011/65/EU), China RoHS (MIIT Order No.32)
UK RoHS (The Restriction of the Use of Certain Hazardous Substances in Electrical and
Electronic Equipment Regulations 2012)
Applicable standards EN IEC 61326-1 (Group 1, Class A according to EN 55011)
Design life 7 years (maximum load, 24 hours continuous use, 40°C environment)
Accessories External illumination control connector, power connector, instruction manual

*1 If the strobe illumination time exceeds 1 ms, the 12 V type will be driven at 12 VDC, and the 24 V type will be driven at 24 VDC.
*2 If the light intensity value is set to 900 or higher, noise may increase depending on the user's cable wiring conditions.
In that case, attach a ferrite core to the end of the lighting output cable on this product side.
Recommended ferrite core: NFT-13S (Manufactured by TAKEUCHI INDUSTRY CO., LTD. Maximum cable diameter: 13.5 mm)

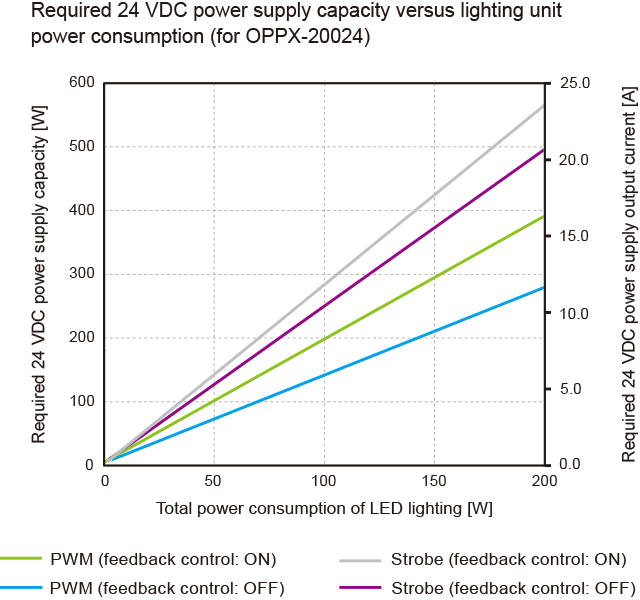

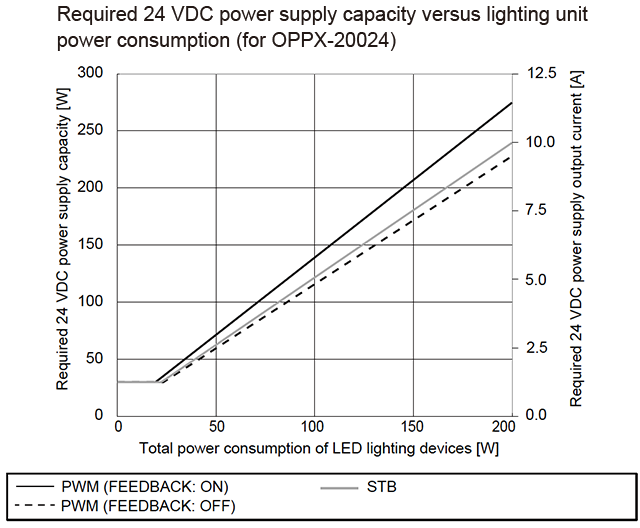

Required 24 VDC power supply capacity for power consumption of lighting unit

  • Based on the total power consumption of the LED lighting unit to be connected, select a 24 VDC power supply that offers more than the required capacity.
    See the graph on the right.

    Note:
    When using in conjunction with other equipment, the characteristics of theother equipment will affect the power supply, so be sure to choose a power supply that has a sufficient margin (about twice as much) as that shown inthe table.
