Functions to reduce the amount of work required for lighting control

• External synchronization input assignment function

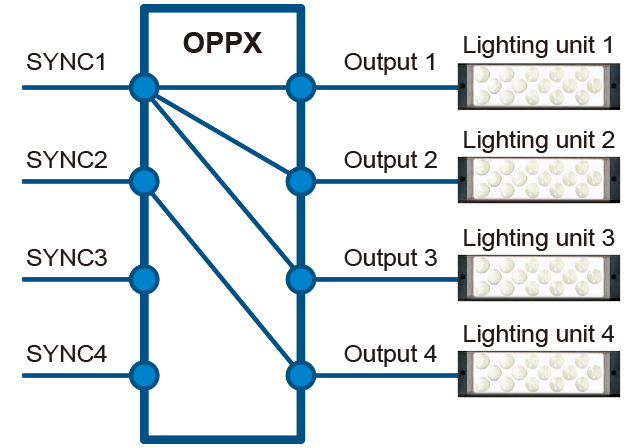

  This function allows you to flexibly assign and change the output points with respect to the input points of the controller.
  A single input can synchronize multiple lighting units, reducing the number of wires required.
  Furthermore, assignments can be changed even after wiring.

  Setting example



• Sequence control

  By presetting an illumination pattern for synchronization input, you can reproduce the illumination pattern with just one synchronization input.
  This shortens the setup time since automatic switching is performed by only external synchronization input.
  Up to 16 illumination patterns (light intensity value and illumination time) can be registered.

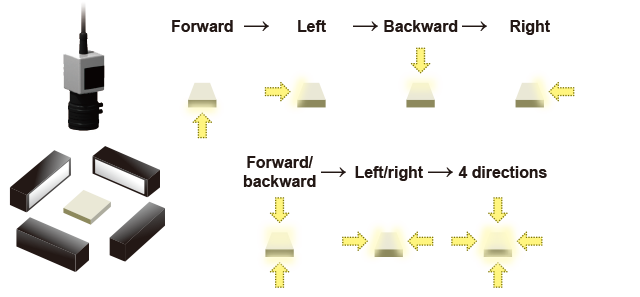

  Sequence registration example

  (illumination pattern to illuminate a workpiece from four directions)



• Recipe function

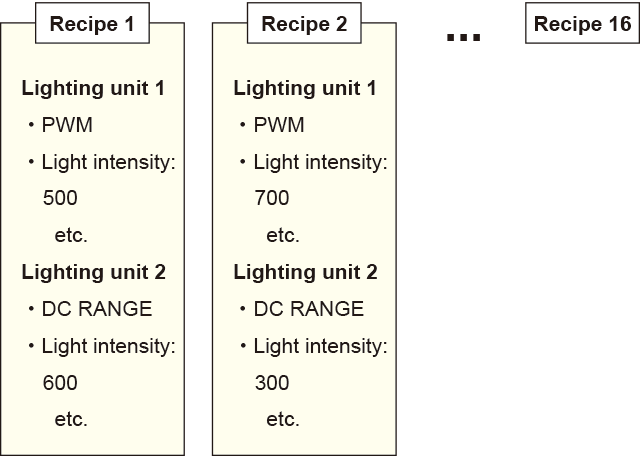

  Save up to 16 illumination related settings such as the following as a recipe.

  ● Illumination conditions (light intensity value,
  　illumination time, synchronization delay time, etc.)
  ● Sequence control settings
  　(number of times, illumination pattern)
  ● Input assignment and input polarity for external
  　synchronization control

  Switching can be done quickly and easily without missing any changes as all related setting values can be switched.
  In addition, a backup file can be made of all settings including a recipe. The backup file can be used not just for recovery but also when adding a production line.

•

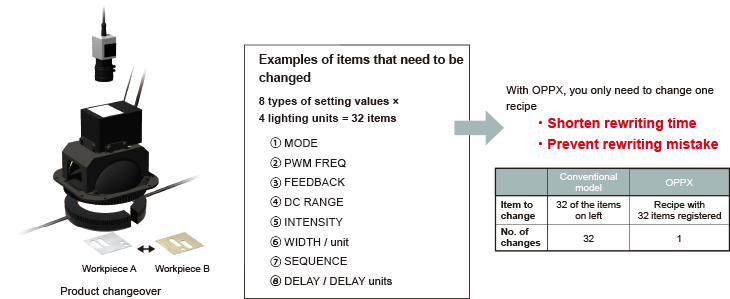

• Example: Simplifying setting changes during product changeover



Easy setup with PC software

• PC software designed specifically for the OPPX Series is available.
  It allows you to easily configure light intensity and synchronization control, frequency, and other settings.
  The software can be downloaded free of charge from the website.

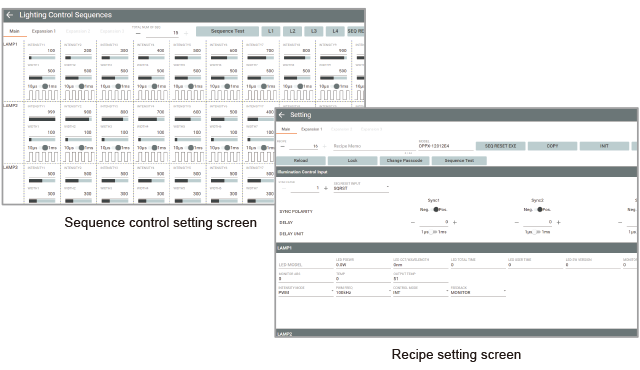

• Intuitive interface

  Optex FA developed an interface to allow you to view light intensity and synchronization control settings at a glance. Setting values are easy to configure, with both selection from a pull-down menu and direct input supported.

•

• Configurable items

  ・PWM frequency
  ・External synchronization
  　input selection
  ・Light intensity value /
  　lighting width
  ・Synchronization delay
  　time
  Ÿ・External synchronization
  　input assignment
  ・Sequence control
  ・Recipe settings
  ・Feedback ON/OFF
  ・Absolute brightness
  　control ON/OFF

•

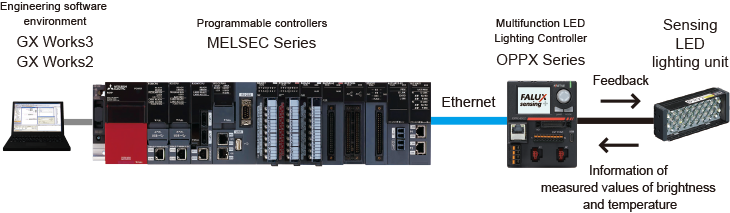

• Support for Mitsubishi Electric iQ Sensor Solution ()

  The OPPX Series can be operated on a network using Mitsubishi Electric GX Works2 and GX Works3.
  By connecting and coordinating lighting units and power supplies for image processing, programmable controllers, displays, and other control devices, you can manage them all at once, which can be expected to bring improvements in work efficiency.
