  Various types of lighting can be connected,
  allowing for unification of controllers

  Lineup of 12 VDC and 24 VDC output types

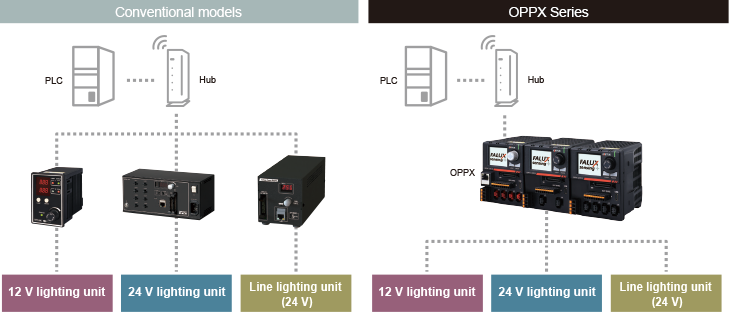

  The OPPX Series supports both 12 V and 24 V input lighting, and also allows connecting other companies’ LED lighting units.
  This enables controller unification even when using multiple types of lighting units, such as general-purpose lighting and line lighting.
  And since communication standard unification is also possible, wiring reduction is achieved. In the case of OPPX-1601224P4/E4, both 12 and 24 VDC input lighting units can be connected using a single power supply unit.

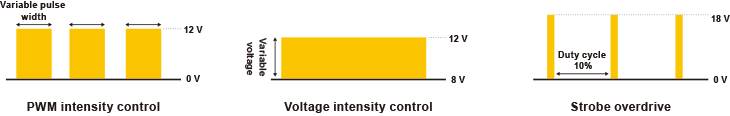

• Three light intensity modes supported by all models

  All models in the OPPX Series support PWM intensity control used for general-purpose lighting units and voltage intensity control suitable for line lighting units.
  They also support strobe overdrive that enables high-brightness lighting, so a single unit can handle various inspection applications.

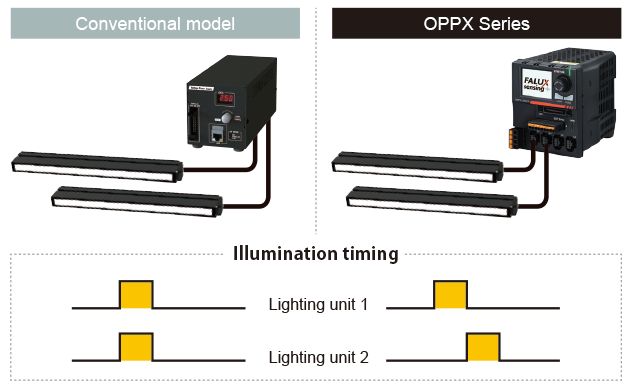

• Control multiple line lighting units

  Single-channel light intensity control products have been the mainstream for voltage intensity control power supplies used for line lighting unit.
  Even if multiple lighting units were connected, the light intensity value and illumination timing could not be controlled separately.
  The OPPX Series allows setting the light intensity value and illumination timing for each lighting unit, enabling control with a single controller (maximum capacity: 200 W) even when using lighting units in multiple inspection processes.

•

Compact case with easy-to-read LCD and
fully functional controler panel

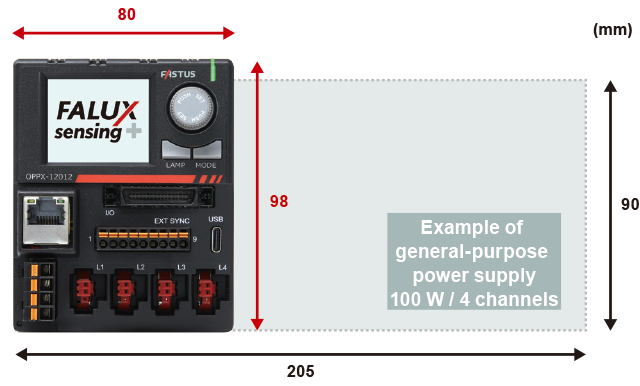

• Compact size yet large capacity

  High capacity in a compact size is achieved through high-density mounting technology and optimal heat dissipation design.
  Since its height is equivalent to that of the majority of PLCs (100 mm), it can be easily installed inside a panel.

•

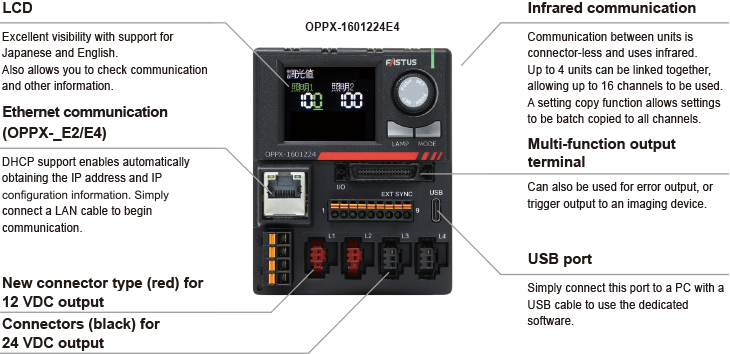

• Fully functional controller panel

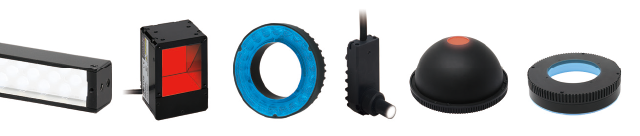

• Also connects to existing lighting series
  (12 VDC specification)

  The OPPX Series employs the new SM connector type.
  These connectors are for lighting that supports FALUX sensing +, but also allow you to connect existing lighting series (12 VDC specification, SM 2-pin connectors).

•
