Displacement Sensor AmplifiersCDA Series

DOWNLOAD

Amplifier unit with English display

  • Up to two displacement sensors can be connected
  • Calculation of thickness, height difference, width, and more possible
  • Equipped with analog and control outputs
CDA Series

Options/Accessories

Displacement sensor/amplifier connection cable

  •

    DSL-1204-G02M
    Cable length: 2 m

    Bending resistant cable
    Minimum bending radius
    R18 mm (when fixed in place)
    R34 mm (when movable)

    Connector cable for connecting a displacement sensor CDX Series or CD22 Series and amplifier unit CDA Sereis.
    *Not required for TD1 Series.

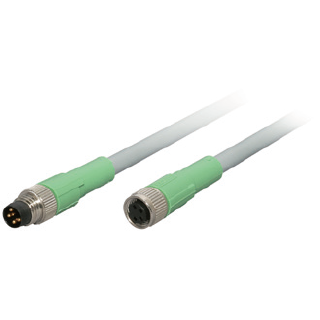

Displacement sensor-to-amplifier extension cable

  •

    DSL-0804-G02M
    Cable length: 2 m

    DSL-0804-G05M
    Cable length: 5 m

    Bending resistant cable
    Minimum bending radius
    R18 mm (when fixed in place)
    R34 mm (when movable)

    Displacement sensor/amplifier connection cable side: M8 4-pin socket
    Amplifier unit side: M8 4-pin plug

    Extension cable for connection to DSL-1204-G02M.
    *Ensure that the total cable length when connecting to a CDA Series
    amplifier unit is within 10 m.
