Laser Displacement SensorsCD2H Series

DOWNLOAD

Best-in-class*, All-in-one Middle-range Sensors

  • Highest-in-class* Repeat Accuracy
  • Fastest-in-class* Sampling Period
  • Measurement in a long distance up to 1,200mm
  • Received light waveform can be displayed on OLED Display.
  • *Among laser displacement sensors with the repeat accuracy of 1μm
    (Investigated by OPTEX FA in November 2021)

CD2H Series

I/O circuit diagram

  • SIO mode (standard I/O mode)
    with the NPN setting

  • SIO mode (standard I/O mode)
    with the PNP setting

  • IO-Link mode or the Push-Pull setting

  • M12 connector pin assignments

Dimensions

(Unit : mm)

Sensor

M12 5-pin cable

  • Standard cable

    YF2A15-020VB5XLAX(L=2,000)
    YF2A15-050VB5XLEAX(L=5,000)
    YF2A15-100VB5XLEAX(L=10,000)

  • Bending resistant cable

    DOL-1205-G02M-R(L=2,000)
    DOL-1205-G05M-R(L=5,000)

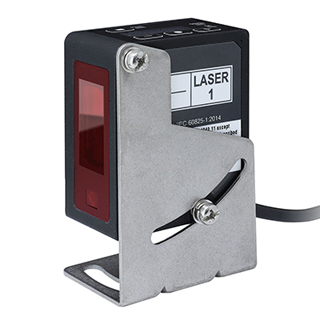

Mounting bracket

  • BEF-WN-OD2000-B
