Compact ThermometersCS Series
Measurement temperature range: -40 to 500℃ / 0 to 1000℃
World's smallest class sensor head
- Heat-resistant sensor head capable of handling up to 180°C (356°F)
- Industry’s highest level of waterproof performance
- Compact body offering both visibility and operability

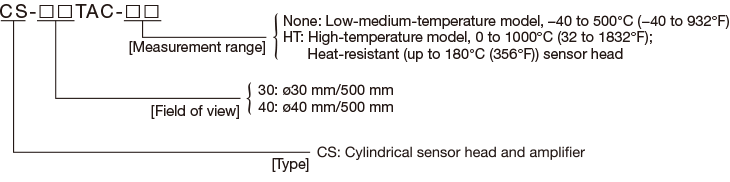

Type key
Specifications
| Model | Low-medium-temperature models (standard) |
High-temperature models (heat-resistant head) |
|||
|---|---|---|---|---|---|
| CS-30TAC | CS-40TAC | CS-30TAC-HT | CS-40TAC-HT | ||
| Measurement range | −40 to 500°C (−40 to 932°F) | 0 to 1000°C (32 to 1832°F) | |||
| Field of view | ø30/500 mm (22:1) |
ø40/500 mm (15:1) |
ø30/500 mm (22:1) |
ø40/500 mm (15:1) |
|
| Optics | Silicone lens | ||||
| Sensing element/ spectral response |
Thermopile/8 to 14 μm | ||||
| Response time | 150 ms/90% response | 150 ms/90% response | |||
| Accuracy*1 | –40 to 0°C (−40 to 32°F): ±3°C (5.4°F), 1 to 200°C (33.8 to 392°F): ±2°C (3.6°F), +201 to +500℃(393.8 to 932°F)：±1% of reading value |
0 to 200°C (32 to 392°F): ±2°C (3.6°F), +201 to 1000°C (393.8 to 1832°F): ±1% of reading value |
|||
| Repeatability | Up to 200°C (392°F): ±1.0°C (1.8°F), 201°C (393.8°F) or more: ±0.5% of reading value | ||||
| Emissivity adjustment | 0.1 to 1.2 | ||||
| Display resolution | 1°C increments | ||||
| Analog output |
Output | 4 to 20 mA | |||
| Resolution | 0.5°C increments | ||||
| Accuracy | ±0.5% or ±1.0°C (1.8°F) | ||||
| Update time | 10 ms | ||||
| Allowable load | 250 Ω | ||||
| Impedance | 47 Ω | ||||
| Control output | Photo MOS FET × 2 (Transfer contact × 2) | ||||
| Capacitive load | 300 mA/30 VDC or less | ||||
| Functions | Teaching function: 2 points, Response time selection (DELAY) function: 1 (0.15 sec.) to 200 (approx. 10 sec.), Output scaling function |
||||
| External input | Bank function: 4 banks, Synchronous input trigger function, External trigger function, Wave trigger function |
||||
| Degree of protection | Sensor head: IP69K, Amplifier: IP40 | ||||
| Vibration resistance | 10 to 55 Hz; amplitude 1.5 mm; 2 hours in each of the X, Y, and Z directions | ||||
| Supply voltage | 12 to 24 VDC ±10% | ||||
| Current consumption | 120 mA (at max. load) / 80 mA (in Eco mode) | ||||
| Ambient temperature | Sensor head: 0 to 100°C (32 to 212°F), Amplifier: 0 to 65°C (32 to 149°F) |
Sensor head: 0 to 180°C (32 to 356°F), Amplifier: 0 to 65°C (32 to 149°F) |
|||
| Ambient humidity | 35 to 85% RH (no condensation) | ||||
| Storage temperature | 0 to 70°C (32 to 158°F) | ||||
| Dimensions | Sensor head: M12 (ø14) × 34 mm, Amplifier: 35 × 52 × 38.5 mm | ||||
| Weight | Sensor head: Approx. 100 g (including 3 m cable), Amplifier: Approx. 200 g (including 2 m cable) | ||||
| Material | Sensor head: SUS, Amplifier: ABS, Sensor cable: PVC (low-medium-temperature models) / Silicone rubber (high-temperature models) |
||||
*1 The measurement accuracy in the specification is (strictly) limited to the calibration conditions of our factory.
・Note that specifications are subject to change without prior notice for product improvement purposes.
| Model | CS-LDP | |
|---|---|---|
| Supply voltage | 3.0 VDC ± 10 %*1 | |
| Wavelength | 630 to 670nm | |
| Maximum power | ≤1 mW | |
| Laser class (JIS/IEC/FDA)*2 | CLASS 2 | |
| Beam divergence | ≤ 1 m radian | |
| Optical axis accuracy | ± 2° | |
| Environmental resistance |
Degree of protection | IP40 (IEC 60529) |
| Ambient temperature/humidity | 0 to 40°C/35 to 85% RH (without dew condensation) | |
| Storage temperature | -10 to 60°C | |
| Vibration resistance | 10 to 55Hz, 1.5 mm amplitude, 2 hours each for X, Y, Z directions with packaging |
|
| Applicable regulations |
Environment | RoHS directive (2011/65/EU), China RoHS (MIIT Order No.32) |
| Safty | FDA regulation (21CFR 1040, 10 and 1040.11) (expect for deviations pursuant to Laser Notice No.56) *3 |
|
| Applicable standards | IEC 60825-1 | |
| Materials | SUS | |
| Weight | Approx. 60 g | |
*1 Do not connect CS-LDP to the same power supply as the CS series amplifier.
*2 This product is classified as Class 2 by IEC 60825-1: 2014 according to Laser Notice No.56, FDA Guidance Document.
*3 Except for deviations pursuant to Laser Notice No.56.
* Design and specifications are subject to change for product improvement without prior notice.
Field of view
-
CS-30TAC / CS-30TAC-HT
-
CS-40TAC / CS-40TAC-HT
・The fields of view stated above are for an optical response (energy) of 90%.
・The size of the measurement target must be sufficiently larger than the figures shown in the above diagram.
Field of view（When the optional CF lens is installed）
-
CS-30TAC / CS-30TAC-HT ＋ CF lens
-
CS-40TAC / CS-40TAC-HT ＋ CF lens
・When a CF lens is equipped, the amount of light received from the measurement target is attenuated by 20 to 30%. Emissivity adjustment is necessary.
・For micro-point measurement, the size of the measurement target must be approx. 1.5 timeslarger than the measurement field of view shown in the above diagram.
