Fiber-Optic CablesNF Series Wide beam type
Fiber-Optic Cables for detecting with light screen
- Optimal for detection of complex shapes and when workpiece passage locations are not fixed.
Mounting method
NF-TZ07/-TZ08/-TZ09/-TZ10
・Please be aware that because the aperture angle of this product is extremely narrow, light may not be taken in depending on installation conditions.
・When installing, determine a reference surface as shown in the diagram below while paying sufficient attention in regards to light axis shifting and slanting. Install so that emitting/receiving fibers are parallel.
Notes about the included slit masks
・There are two types of slit masks for NF-TZ09/-TZ10 and one type for NF-TZ07/-TZ08 included with these products.
These slit masks can be used when detecting small objects or for preventing light saturation when using the Fiber-Optic Cables at close range. However, applying slit masks shortens the sensing distance.
Because the slit masks are of an adhesive type, when applying them to the Fiber-Optic Cables, align the slit projection with the top of the Fiber-Optic Cables as shown in the diagram on the upper right.
Included slit masks

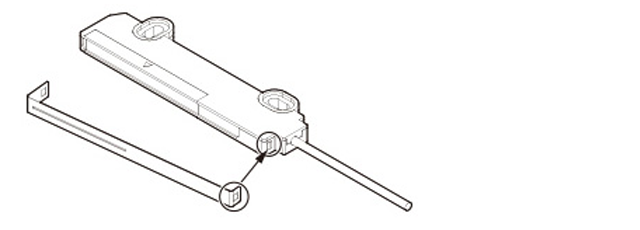

How to apply
