Type	Model	Shape of fiber head [mm]	Optical axis direction	Optical axis diameter [mm]	Fiber length	Min. bending radius [mm]	Ambient temperature [℃]

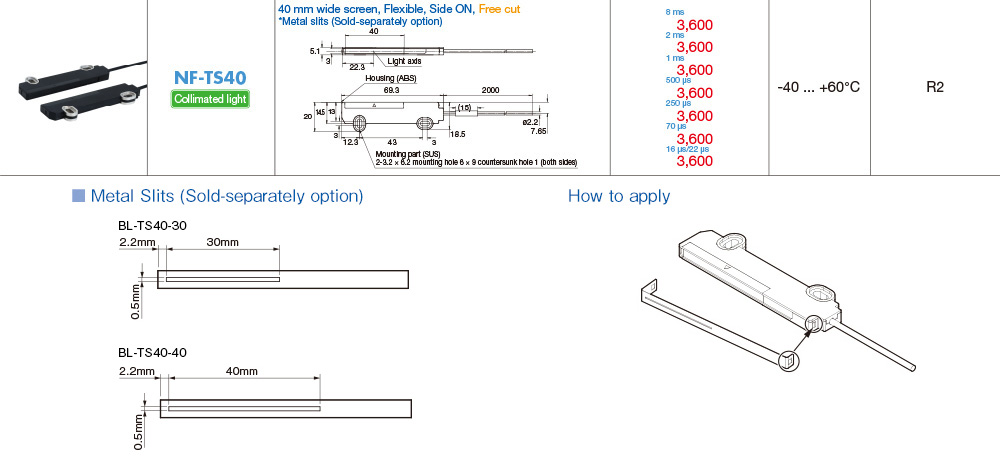

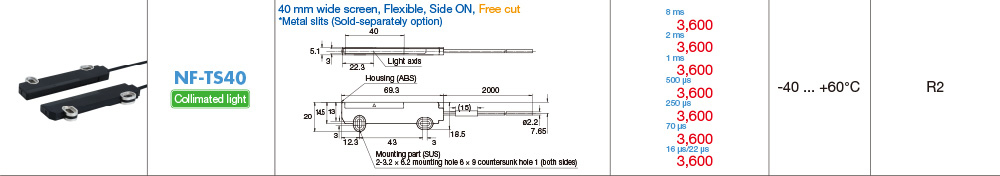

Screen Collimated light	NF-TS40		Side view	40 × 3	2 m Free-cut	R2	-40 ... +60

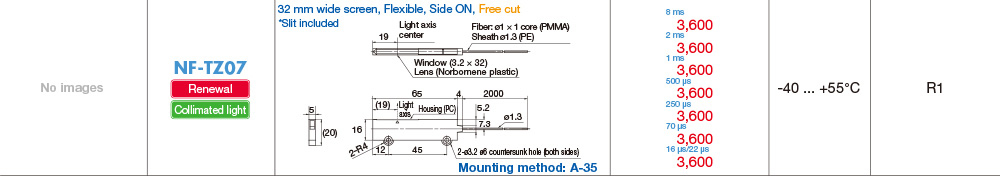

Screen Collimated light Slit masks included*1	NF-TZ07		Side view	32 × 3.2	2 m Free-cut	R1	-40 ... +55

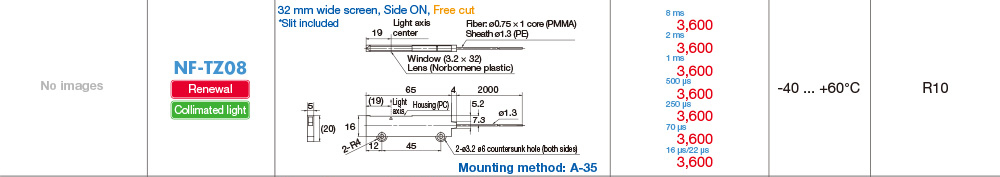

	NF-TZ08		Side view	32 × 3.2	2 m Free-cut	R10	-40 ... +60

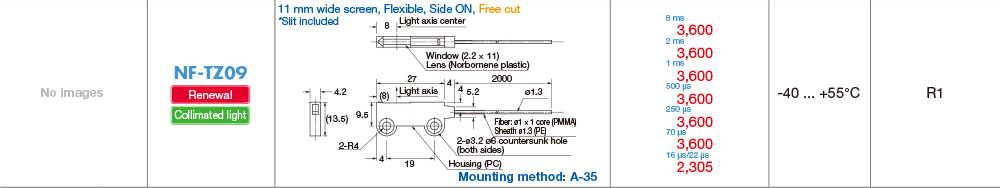

Screen Collimated light Slit masks included*2	NF-TZ09		Side view	11 × 2.2	2 m Free-cut	R1	-40 ... +55

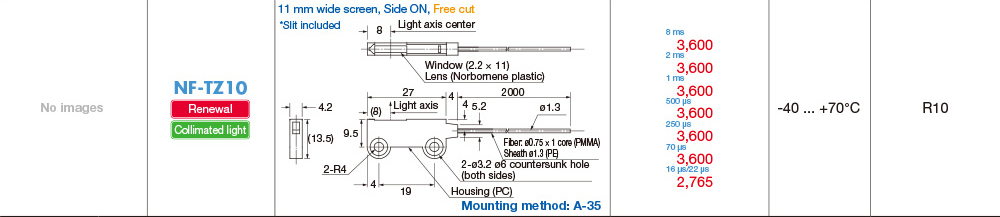

	NF-TZ10		Side view	11 × 2.2	2 m Free-cut	R10	-40 ... +70

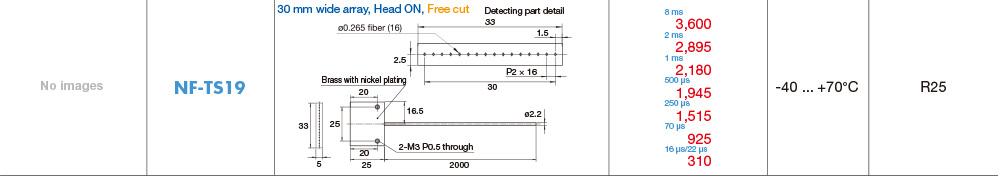

Array	NF-TS19		Straight view	ø0.265 × 16	2 m Free-cut	R25	-40 ... +70

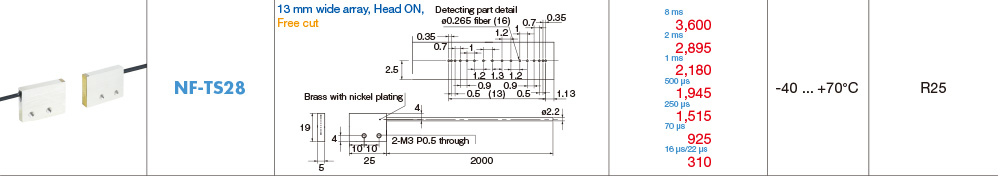

	NF-TS28		Straight view	ø0.265 × 16	2 m Free-cut	R25	-40 ... +70

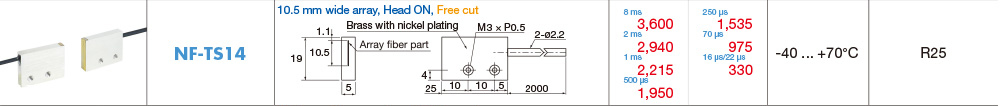

	NF-TS14		Straight view	ø0.265 × 16	2 m Free-cut	R25	-40 ... +70

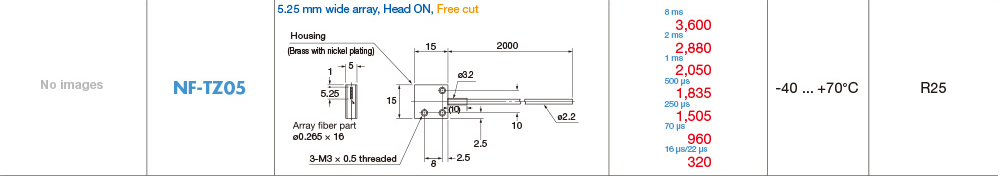

	NF-TZ05		Straight view	ø0.265 × 16	2 m Free-cut	R25	-40 ... +70

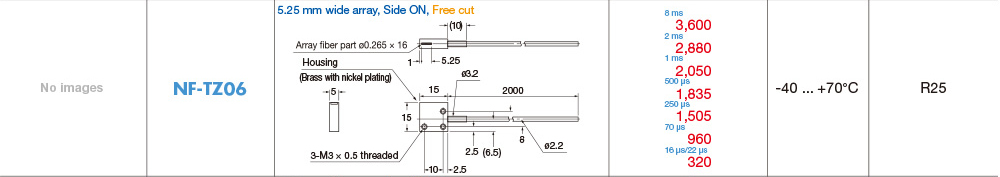

	NF-TZ06		Side view	ø0.265 × 16	2 m Free-cut	R25	-40 ... +70

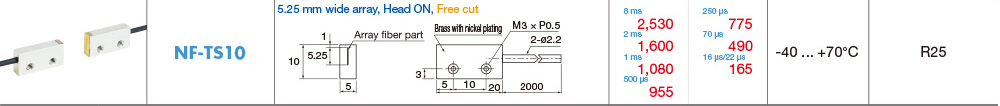

	NF-TS10		Straight view	ø0.265 × 16	2 m Free-cut	R25	-40 ... +70

•Install with an ambient humidity between 35 and 85%. In the case of 85% RH, the ambient temperature should be between 0 and 40℃
•For screen type, the optical axis diameter equals the detection width.
*1. The width of the included slit masks is 0.5 mm.
*2. Two types of slit masks are included, with widths of 0.5 mm and 1 mm.

Type	Model	Shape of fiber head [mm]	Optical axis direction	Fiber length	Min. bending radius [mm]	Ambient temperature [℃]
Screen Collimated light	NF-DZ01		Straight view	2 m Free-cut	R25	-40 ... +60
Array	NF-DZ02		Straight view	2 m Free-cutト	R25	-40 ... +70
	NF-DZ03		Side view	2 m Free-cut	R25	-40 ... +70
	FD-ML02		Straight view	2 m Free-cut	R25	-40 ... +70

•Install with an ambient humidity between 35 and 85%. In the case of 85% RH, the ambient temperature should be between 0 and 40℃.
