Fiber-Optic CablesNF Series Attachment lens

DOWNLOAD

Mountable lenses for Fiber-Optic Cables

  • Choose from long range, side view, and small spot lens
  • Lineup includes spot lenses and fine sleeves for small object detection
NF Series Attachment lens

Mounting method

NF-DA01/-DA02/-DA03/-DA04/-DA05

・If inserting fiber, inserting until the fiber comes to a stop.

NF-DA06

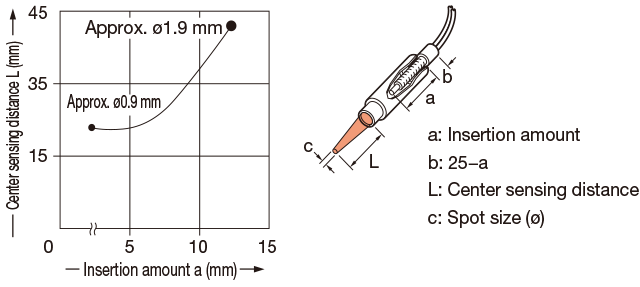

・Spot size and sensing distance can be adjusted depending on the fiber insertion amount. Be aware that if inserted too deeply, the fiber tip may become separated from the lens.

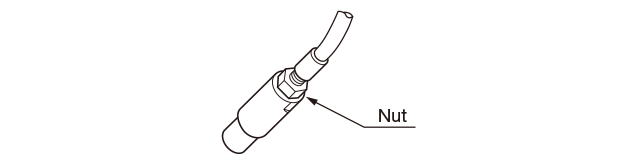

・After setting the fiber and NF-DA06, secure using the nut included with the fiber to prevent moving caused by vibrations, etc.

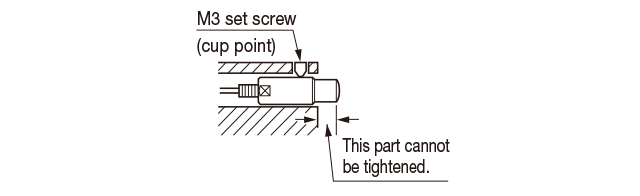

・If securing NF-DA06 using a set screw, use an M3 set screw (cup point).

NF-DA07

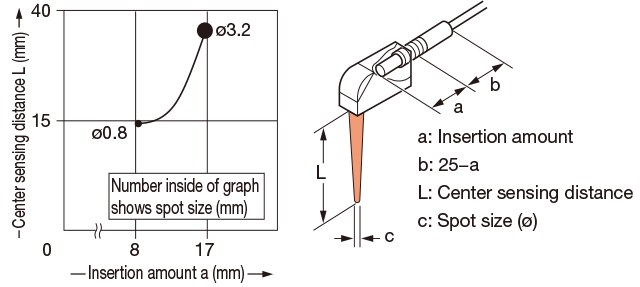

・Spot size and sensing distance can be adjusted depending on the fiber insertion amount.

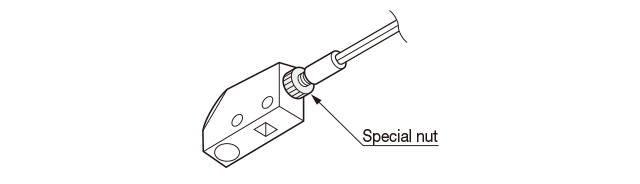

・After setting the fiber and NF-DA07, secure using the special nut included with NF-DA07 to prevent moving caused by vibrations, etc.
