Compact, Long-range TOF SensorsTOF-L Series

DOWNLOAD

Ultra-compact long-distance detection sensor

  • Max. sensing distance of 4.5 m
    *With white paper (90%)
  • Compact design TOF sensor
  • Capable of stable detection even over long distances
TOF-L Series

I/O Circuit Diagram

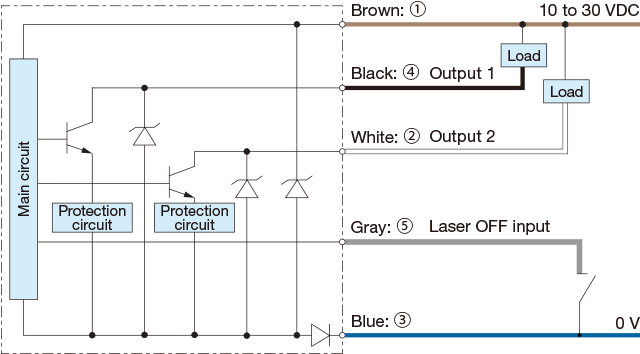

  • NPN output type

  • PNP output type

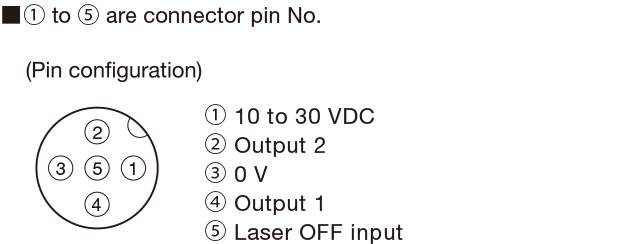

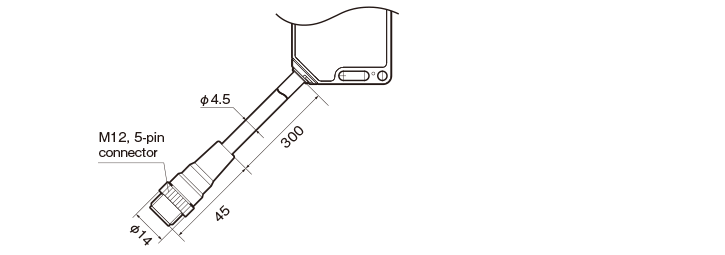

    • Connector type

    • Notes

      ▪ When using a switching regulator for the power supply, be sure to ground the frame ground terminal.
      ▪ Because wiring sensor wires with high-voltage wires or power supply wires can result in malfunctions due to noise, which can cause damage, make sure to wire separately.
      ▪ Avoid using the transient state while the power is on (approx. 800 ms).

    Dimensions

    (Unit : mm)

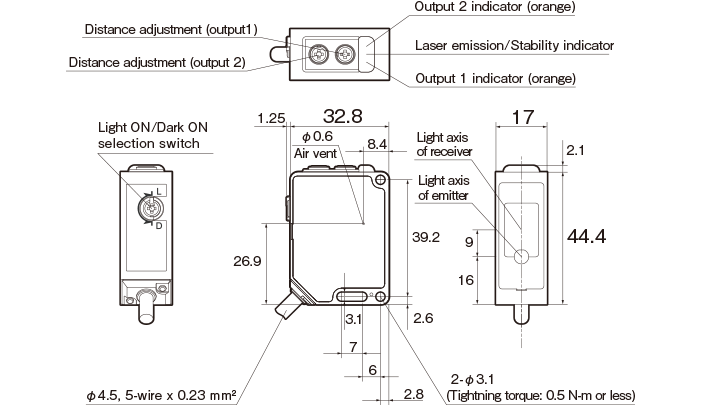

    Sensor

    Mounting bracket

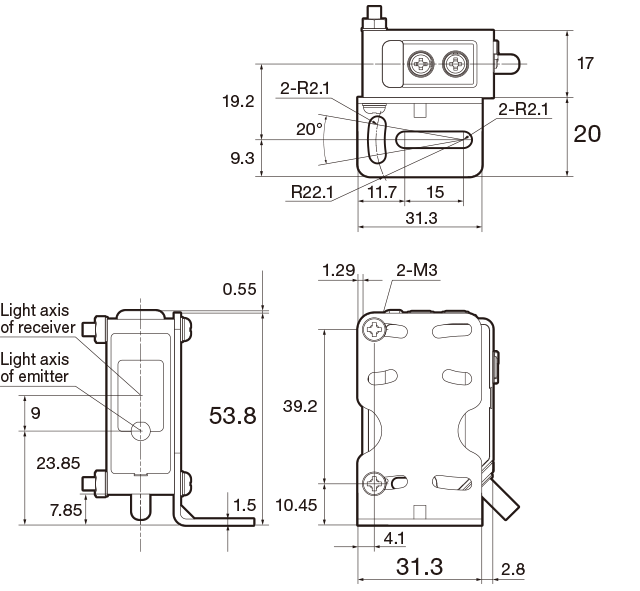

    • BEF-WK-190 floor-mounted

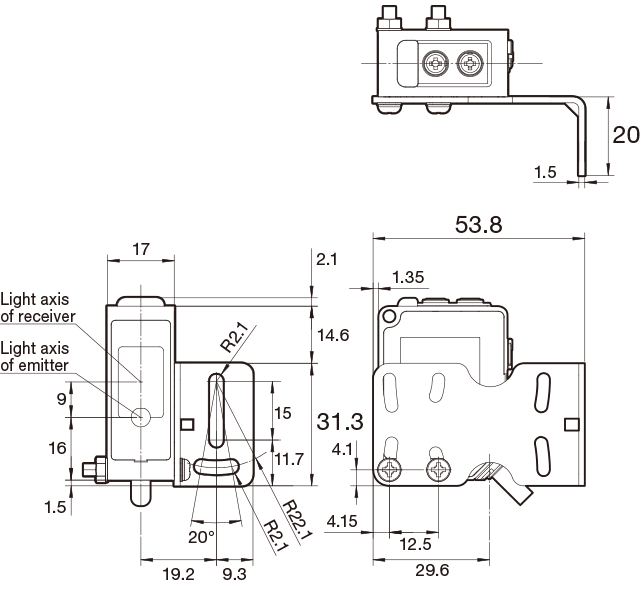

    • Wall-mounted

    Connector cable

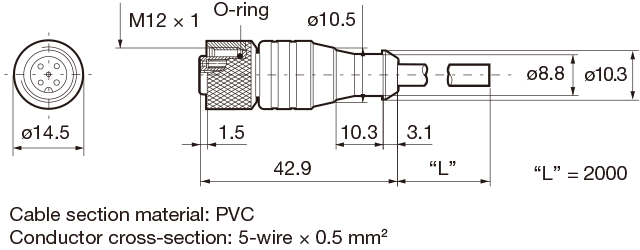

    • DOL-1205-G02M

    Successor models

    • YF2A15-020VB5XLEAX
