Type	Sensing distance	Model (Models in parentheses are pig tail types)
		NPN type	PNP type
TOF		TOF-L450DN (TOF-L450DM12N)	TOF-L450DP (TOF-L450DM12P)

•For the pig tail type, please purchase an optional joint connector cable.

Type		BGS
		Cable type	Pig tail type
Model	NPN type	TOF-L450DN	TOF-L450DM12N
	PNP type	TOF-L450DP	TOF-L450DM12P
Sensing distance*1		0 to 4.5 m
Light source		Red semiconductor laser, wavelength: 650 nm
Laser class		CLASS 1 (IEC/JIS/FDA*2)
Spot size*3		Approx. ø17 mm (at a distance of 4.5 m)
Response time		0.5 ms or less
Hysteresis		8% or less （Distance: 1 to 4 m)
Distance adjustment		4-turn potentiometer
Indicators		Output 1 indicator (orange), Output 2 indicator (orange) Laser emission indicator/Stability indicator (when stable: green, when unstable: red, laser OFF: OFF)
External input		Laser OFF input
Control output	Type	NPN/PNP open collector output, Max. 100 mA / 30 VDC, residual voltage 1.8 V max.
	No. of outputs	2ch
Output mode		Light ON / Dark ON selectable (same output mode for Ch. 1 and Ch. 2)
Connection type		Cable length: 2 m (ø4.5 mm)	Cable with M12, 5-pin connector 300 mm long
Protection circuit		Reverse connection protection, Overcurrent protection
Rating	Supply voltage	10 to 30 VDC, including 10% ripple (p-p)
	Current consumption	85 mA or less*4

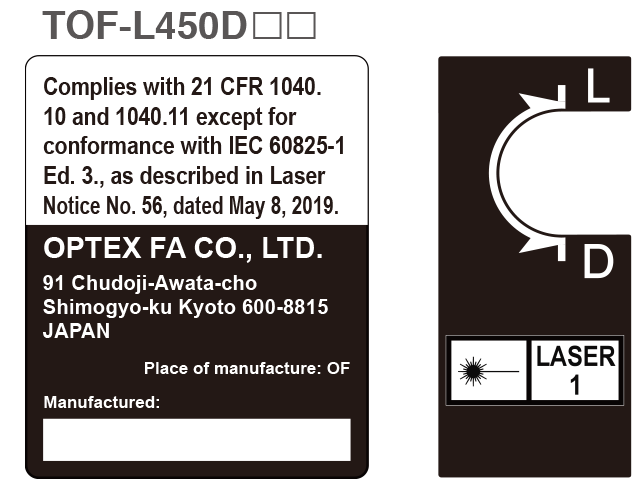

Applicable regulations		EMC directive (2004/108/EC) / FDA regulations (21 CFR 1040.10 and 1040.11*5)
Applicable standards		EN 60947-5-2 / IEC 60825-1
Company standards		Noise resistance: Feilen Level 4 cleared
Environmental resistance	Ambient temperature/humidity	-10 to +50℃ (no freezing) / 35 to 85% (no condensation)
	Ambient illuminance	Sunlight: Sunlight: 4,000 lx or less (at 1 m), fluorescent lamp: 3,000 lx or less (at 1 m)
	Vibration resistance	10 to 55 Hz; double amplitude 1.5 mm; 2 hours in each of the X, Y, and Z directions
	Shock resistance	500 m/s2 (approx. 50 G); 3 times in each of the X, Y, and Z directions
	Degree of protection	IEC standard, IP67
Material		Housing: ABS Front cover: PMMA
Weight without cable		Approx. 25 g
Included accessories		Mounting bracket: BEF-WK-190, mounting screws (M3 × 20 mm)

*1 Using a 200 ☓ 200 mm white sheet of paper.
*2 In accordance with the FDA provisions of Laser Notice No. 56, the laser is classified as Class 1 per the IEC 608251:2014 standard.
*3 Defined with 1/e2 (13.5%) of the center strength at the maximum detection distance. The sensor may be affected by light leakage at spot sizes other than the default and when there is a highly reflective object close to the detection area.
*4 Not including control output load current.
*5 Except for deviations pursuant to Laser Notice No.56.
• Specifications are subject to change without prior notice for product improvement purposes.
