Stainless-steel Housing SensorsZ-M Series

DOWNLOAD

Excellent water resistance/oil resistance!
Suitable for automobiles, machine tools and food industry

  • Longest sensing distance in the class!
  • Employs a low deterioration 4 element red LED for the light source
  • Degree of protection: IP69K (cable type), Equivalent to IP67g (connector type)
Z-M Series

Output circuit diagram

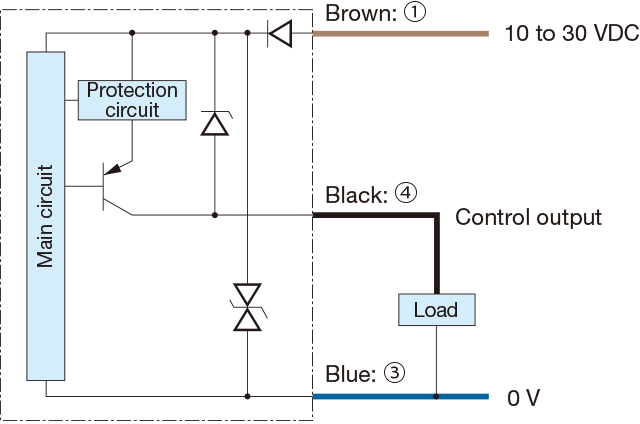

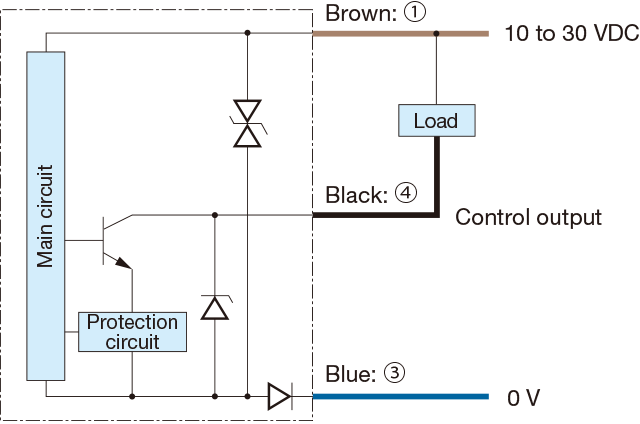

  • NPN output type

  • PNP output type

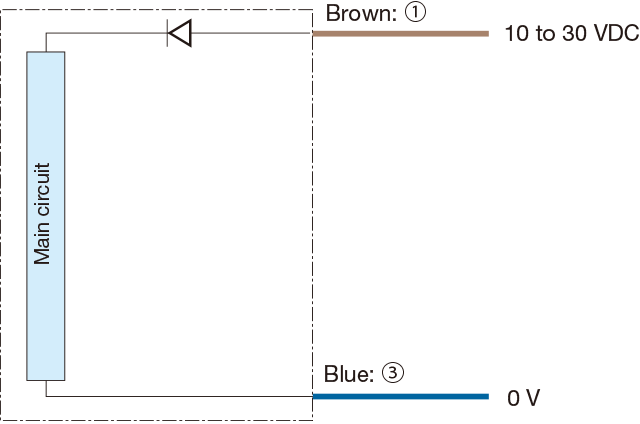

  • Through-beam type emitter

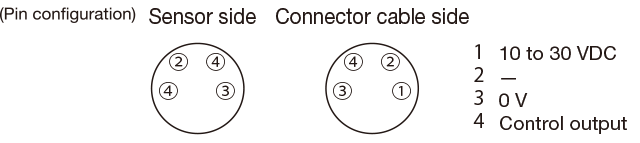

  • Connector type

    Connecting

    ▪ 1 to 4 are connector pin No.

    Notes

    ▪ When using a switching regulator for the power supply, be sure to ground the frame ground terminal.
    ▪ Because wiring sensor wires with high-voltage wires or power supply wires can result in malfunctions due to noise, which can cause damage, make sure to wire separately.
    ▪ Avoid using the transient state while the power is on (approx. 100 ms).

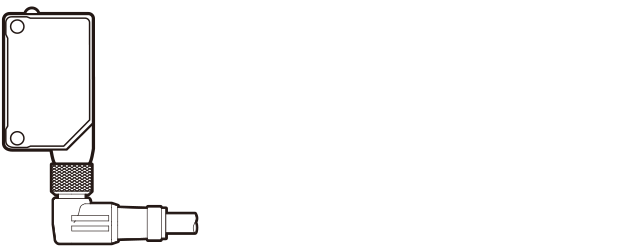

    ▪ The connector direction is fixed as the drawing below when you use L-shaped connector cable. Be aware that rotation is not possible.

Dimensions

Unit : mm

Cable type

Connector type

Reflector

  • V-61: Standard type reflector (included with retro-reflective type)

  • V-42: Small reflector (optional)

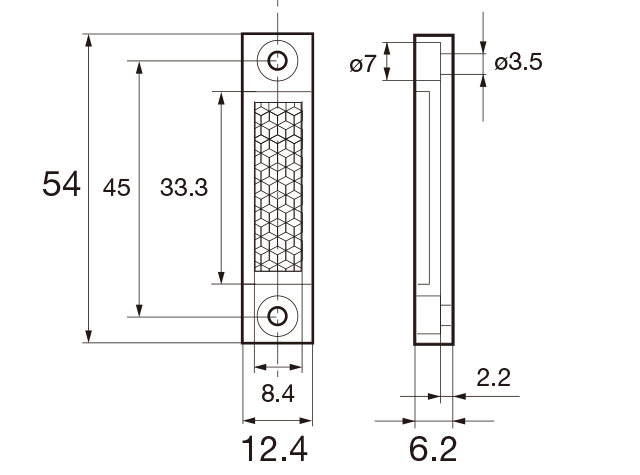

  • P45A: Vertical type reflector (optional)

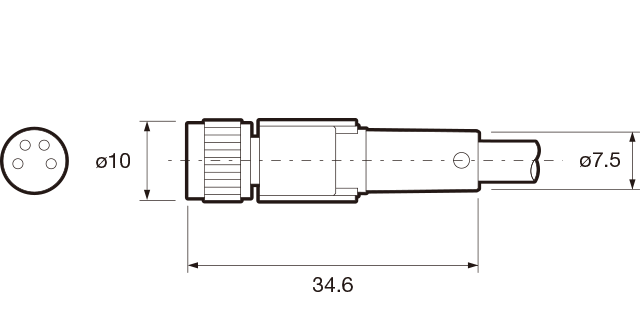

Oil resistant connector cable (optional)

  • DOL-0804-G02MC
    DOL-0804-G05MC
    DOL-0804-G10MC

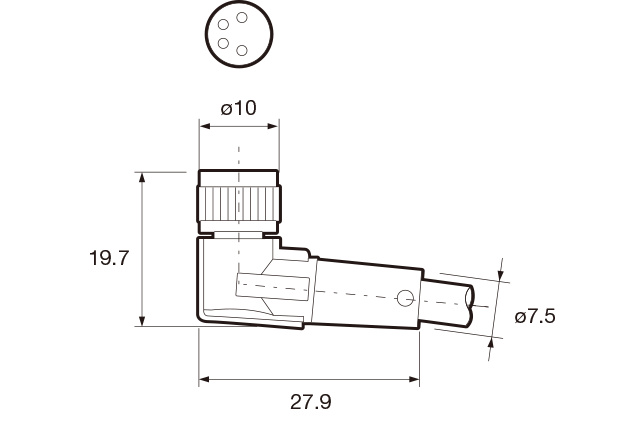

  • DOL-0804-W02MC
    DOL-0804-W05MC
    DOL-0804-W10MC

Successor models

  • YF8U14-020UA3XLEAX
    YF8U14-050UA3XLEAX
    YF8U14-100UA3XLEAX

  • YG8U14-020UA3XLEAX
    YG8U14-050UA3XLEAX
    YG8U14-100UA3XLEAX

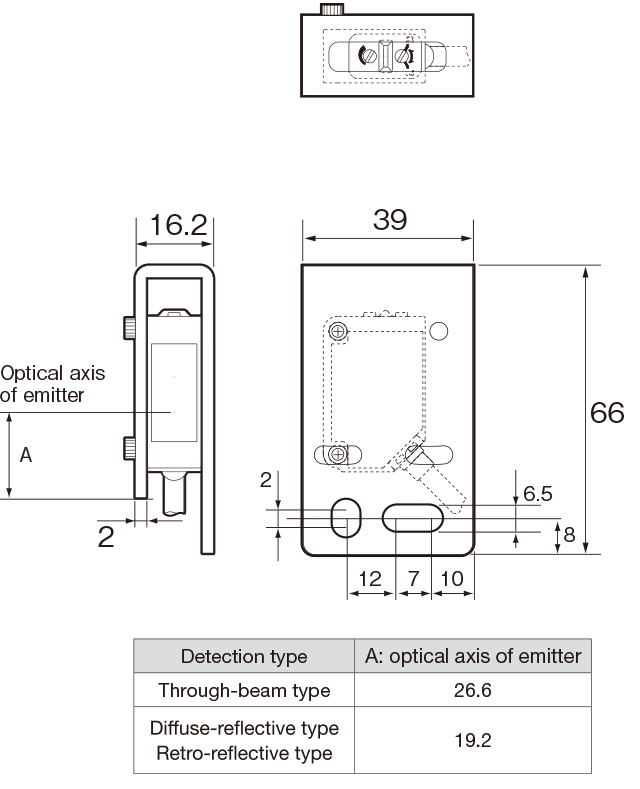

Mounting bracket

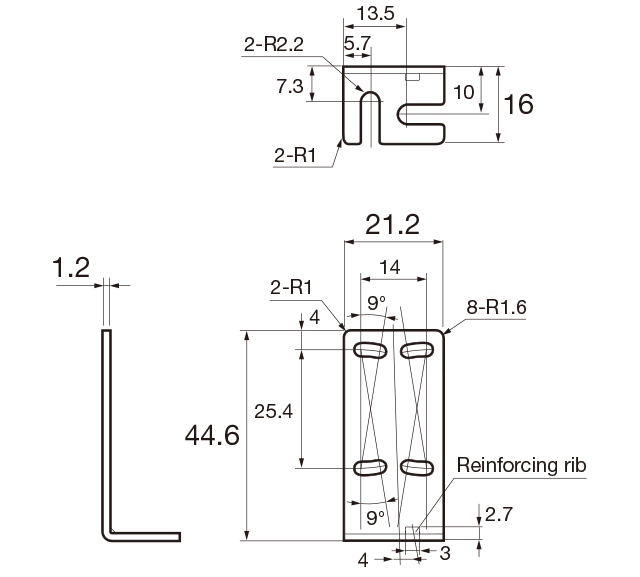

  • BEF-W100-B (included with cable type)

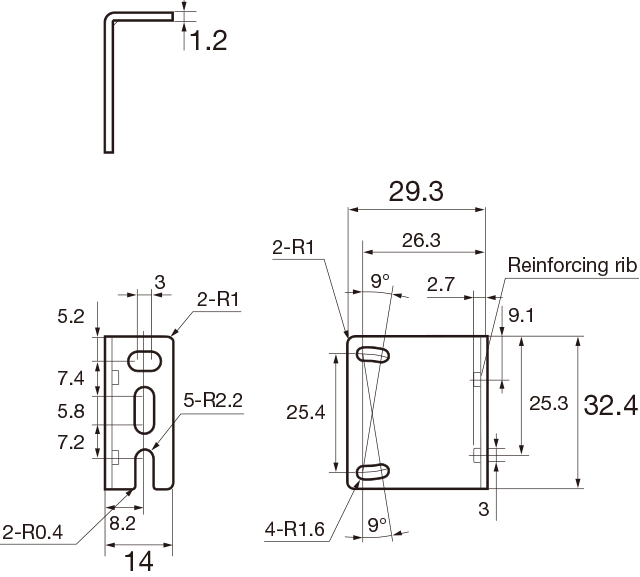

  • BEF-W100-A (included with connector type)

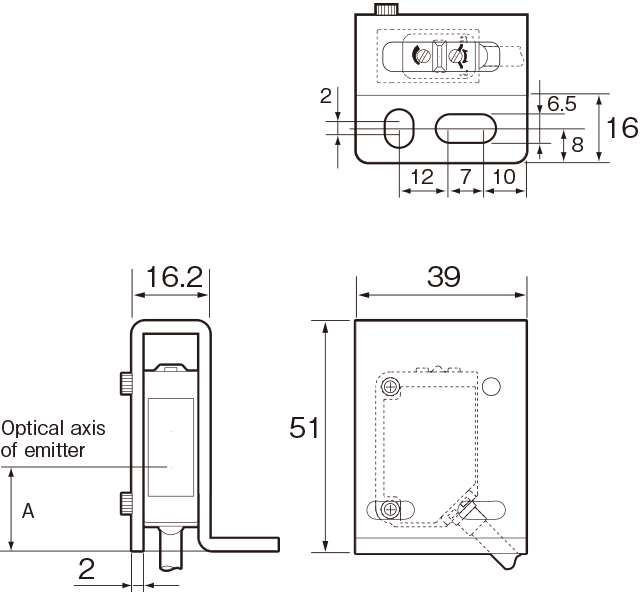

Protective mounting bracket (option for cable type)

  • LK-S01

  • LK-S02
