Stainless-steel Housing SensorsZ-M Series

DOWNLOAD

Excellent water resistance/oil resistance!
Suitable for automobiles, machine tools and food industry

  • Longest sensing distance in the class!
  • Employs a low deterioration 4 element red LED for the light source
  • Degree of protection: IP69K (cable type), Equivalent to IP67g (connector type)
Z-M Series

Typical characteristic data

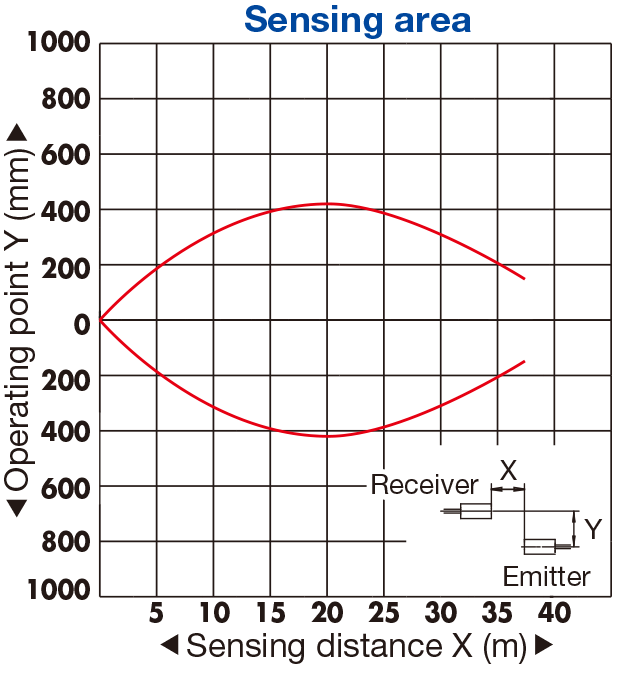

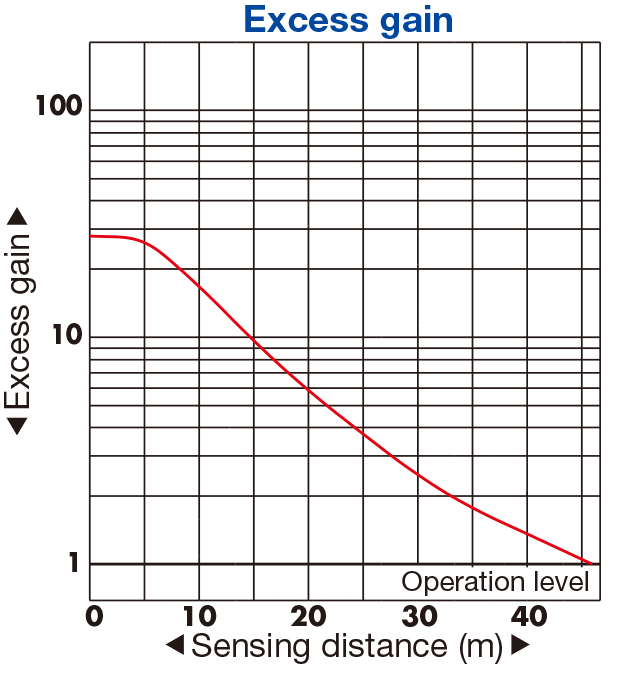

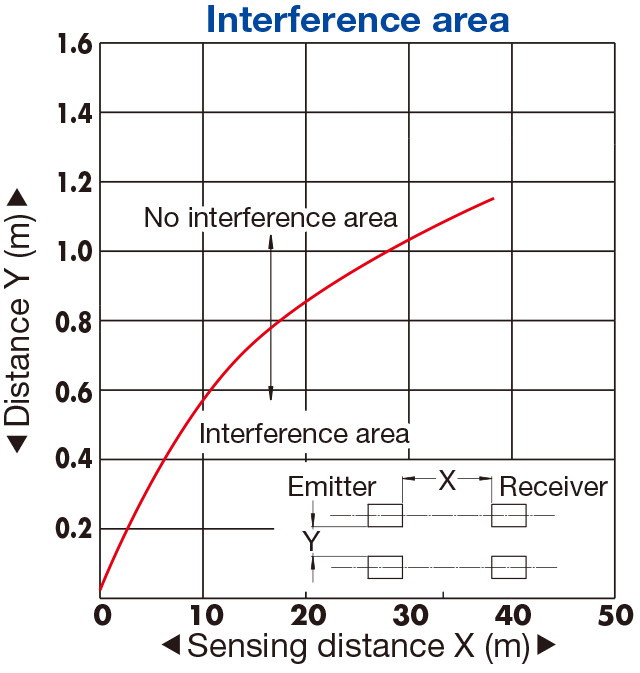

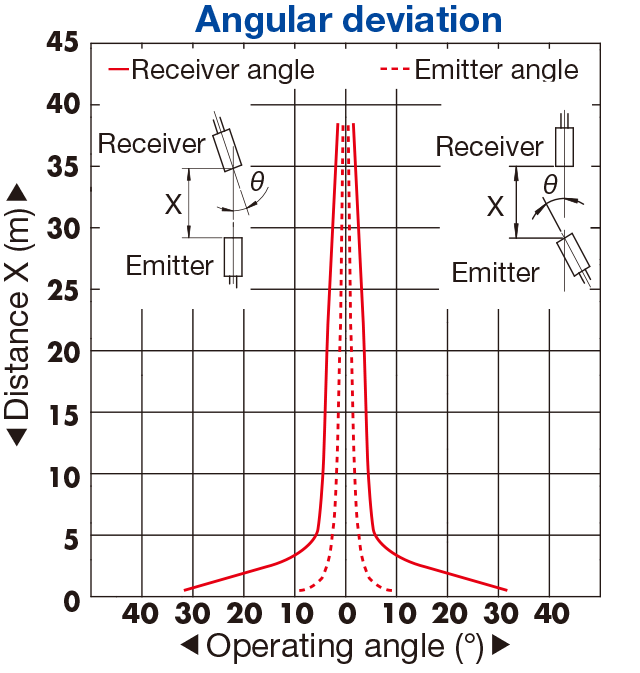

ZT-M3000☐

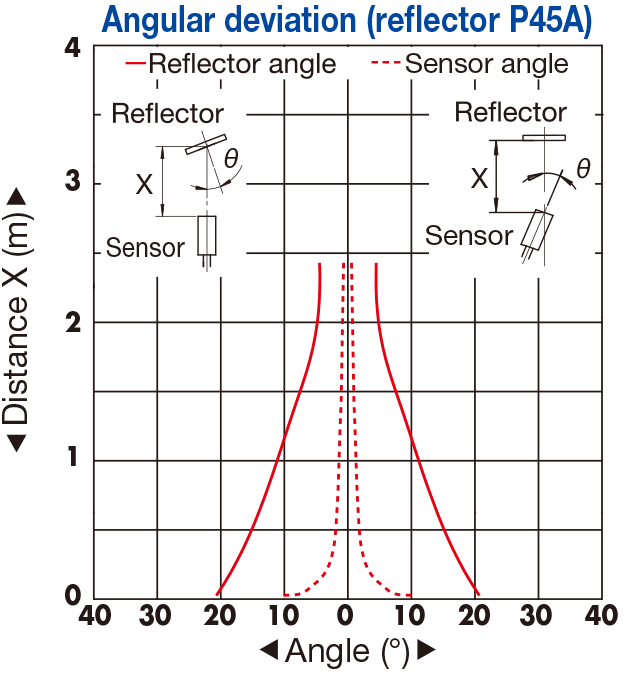

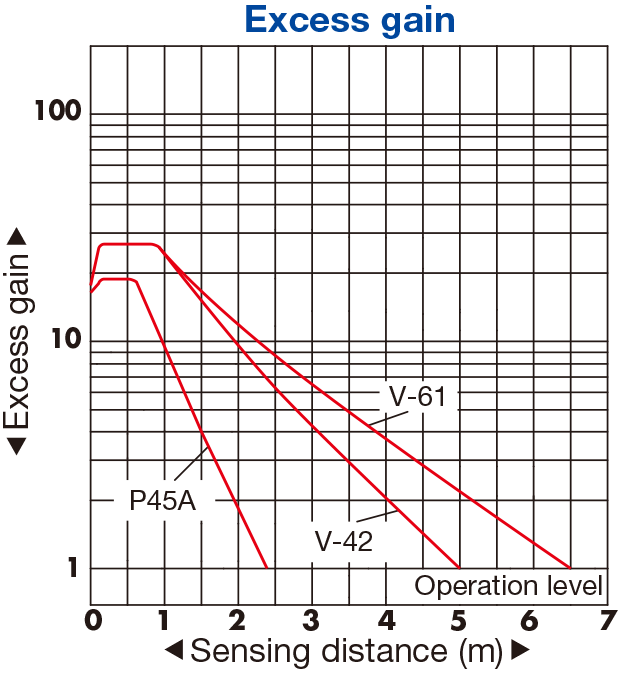

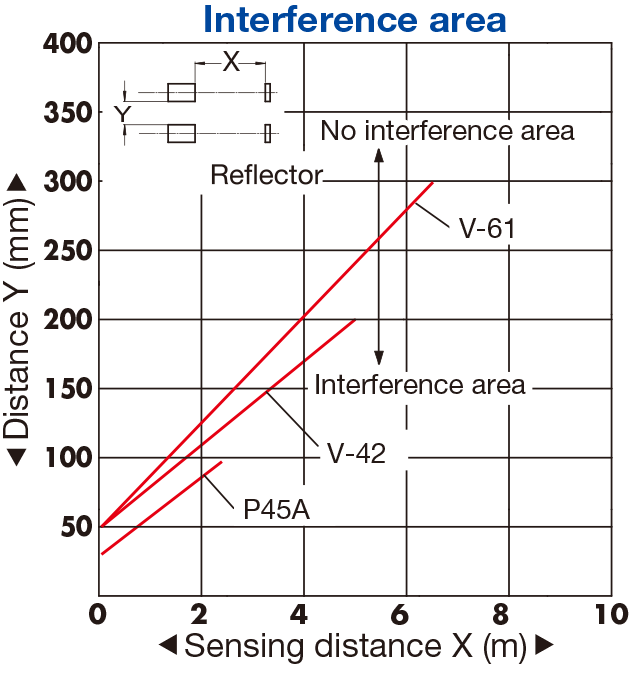

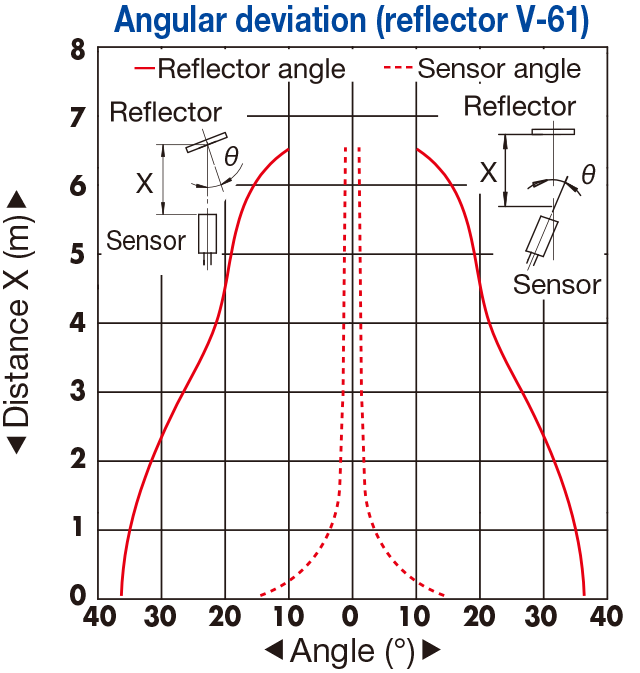

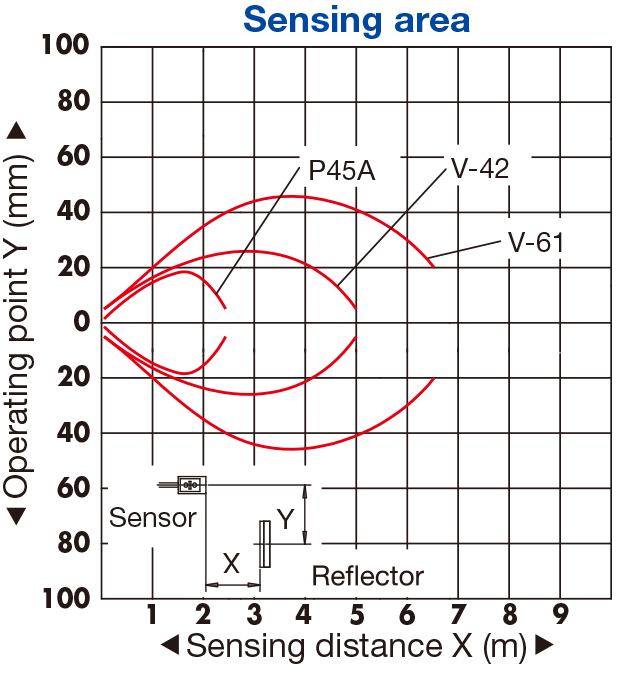

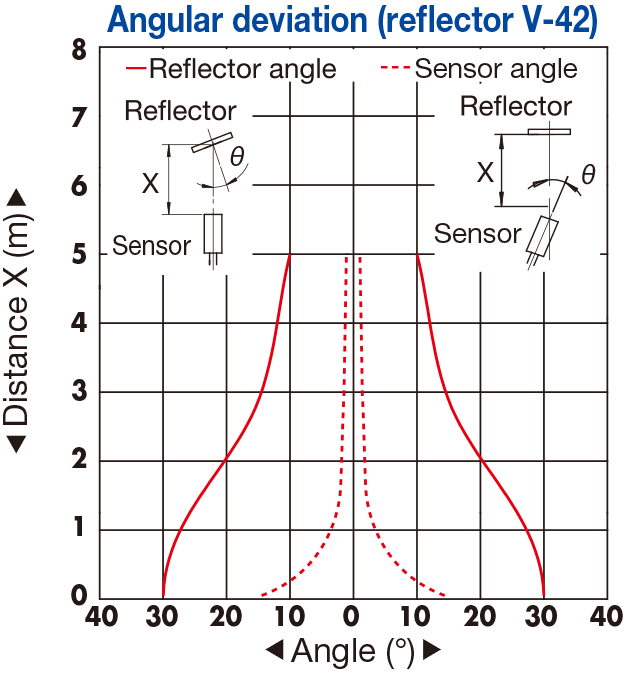

ZR-M550☐

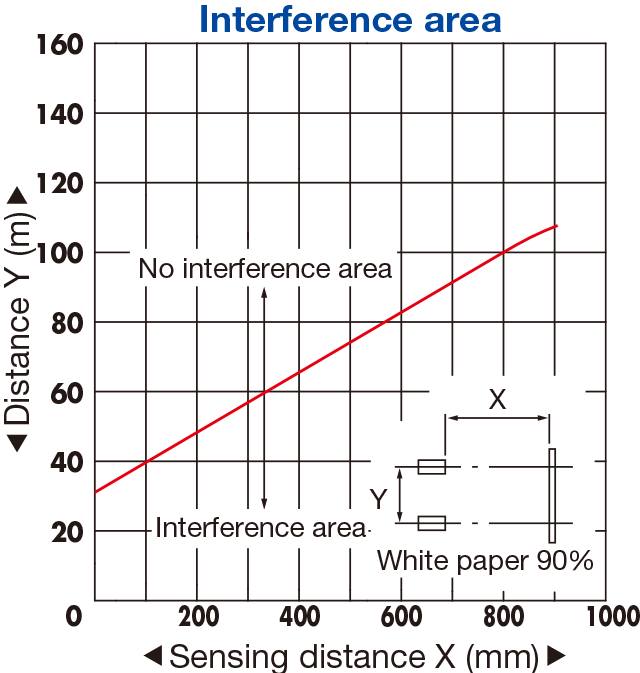

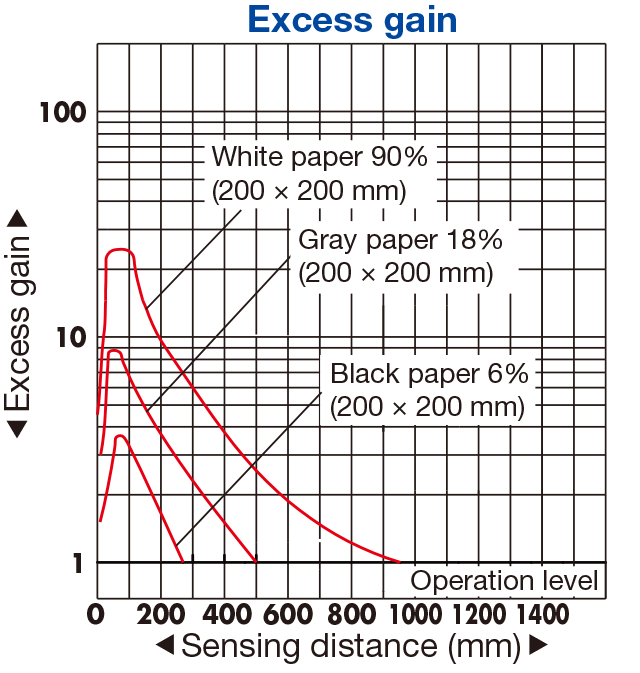

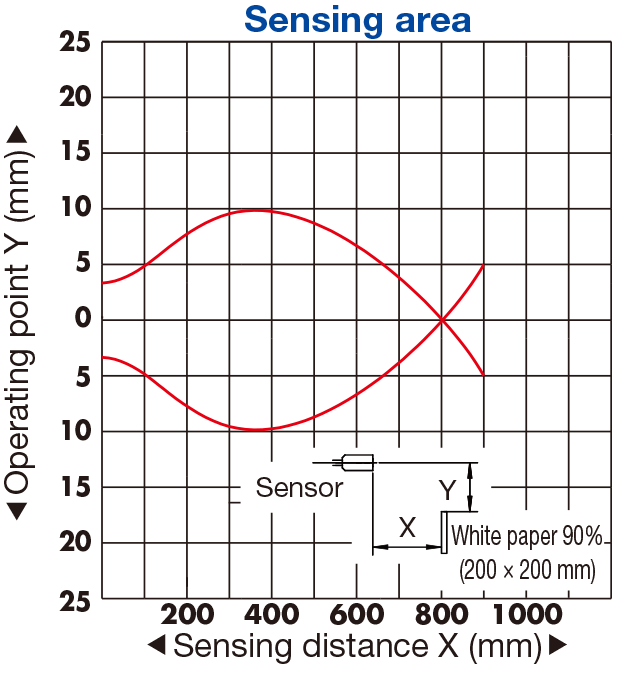

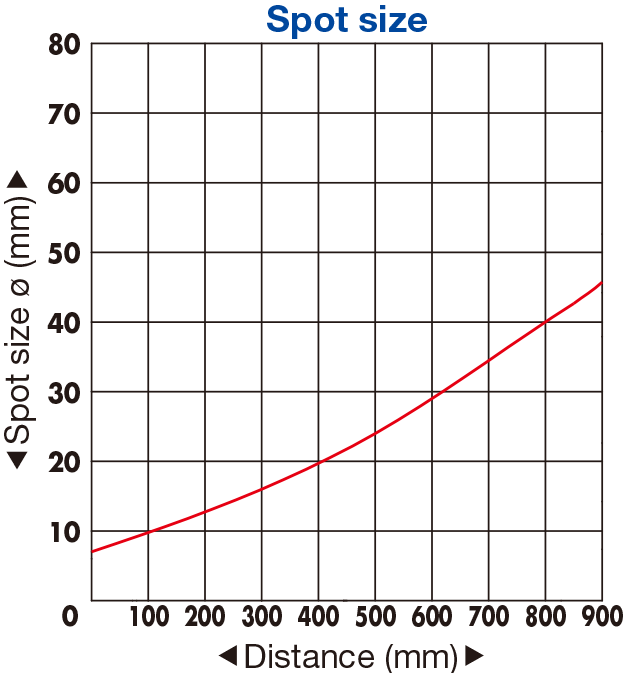

ZD-M80☐
