Universal Voltage SensorsV2 Series

DOWNLOAD

Renewed V2 series with high-level specifications

  •   70 m sensing distance (through-beam type)
  • Uses a red LED for the light source. Easy adjustment of light axis even over a long distance
  • Universal voltage type and DC power type
V2 Series

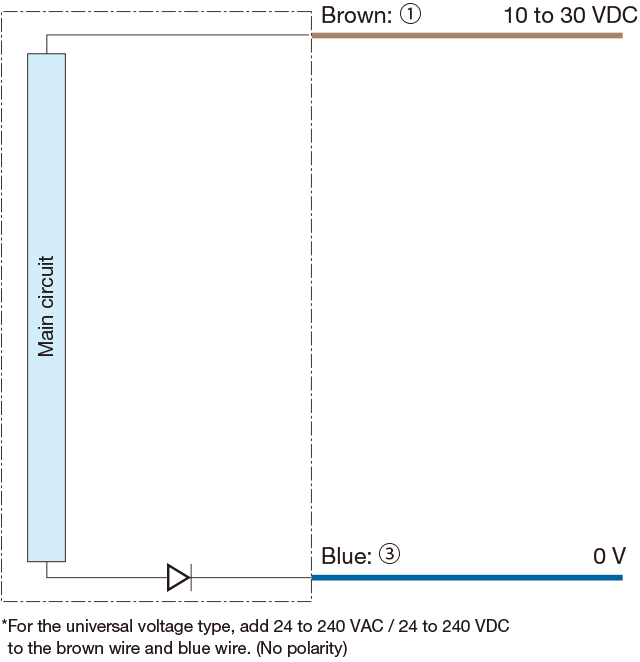

I/O circuit diagram

  • NPN output type

  • PNP output type

  • Through-beam type emitter

  • Connector type


  • Through-beam type emitter

  • Universal voltage type


  • Notes

    ▪ When using a switching regulator for the power supply, be sure to ground the frame ground terminal.
    ▪ Avoid wiring in parallel with or in the same piping as high-voltage wires or power lines. Doing so may lead to malfunctions caused by noise. Also, shorten the power supply and signal wires as much as possible.
    ▪ Avoid using the transient state while the power is on (approx. 150 ms).

Dimensions

Unit : mm

Sensor

Through-beam type

Retro-reflective type

Mounting bracket

  • Cable type

  • Connector type

Protective mounting bracket (optional)

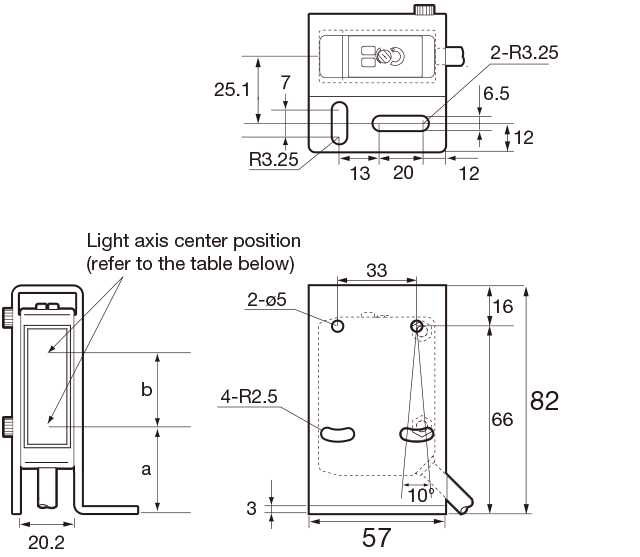

  • LV2-S01

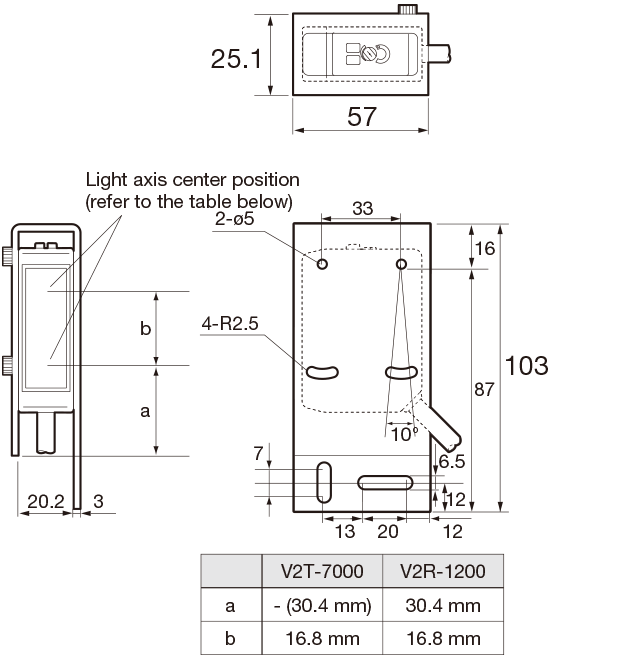

  • LV2-S02

Mounting bracket

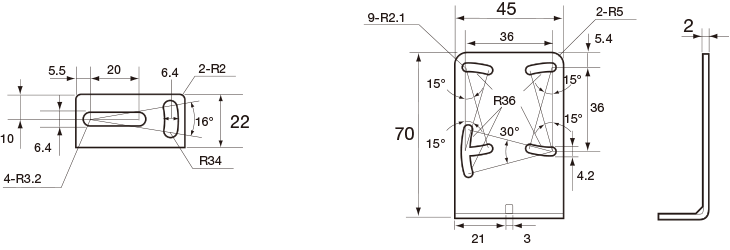

  • BEF-W250 (included with product)

Reflector

  • V-61: Standard type reflector
    (included with retro-reflective type)

  • V-42: Small reflector (optional)

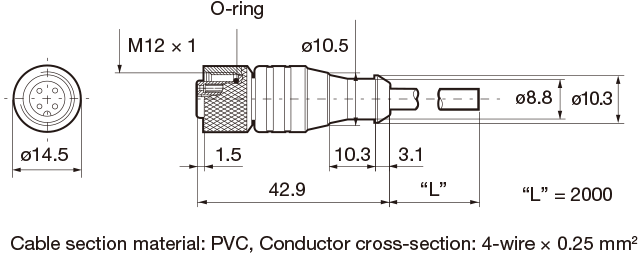

Connector cable (optional)

  • DOL-1204-G02M

Successor models

  • YF2A14-020VB3XLEAX
