Universal Voltage SensorsV2 Series

DOWNLOAD

Renewed V2 series with high-level specifications

  •   70 m sensing distance (through-beam type)
  • Uses a red LED for the light source. Easy adjustment of light axis even over a long distance
  • Universal voltage type and DC power type
V2 Series

Optional products

Reflector

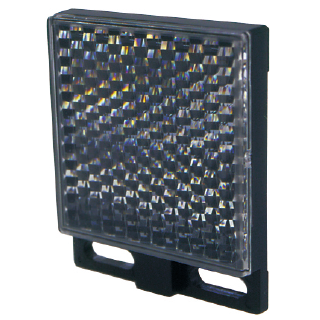

  • Standard (included)

    V-61

    Sensing distance:
    0.01 to 12 m
    60.9 × 50.9 mm

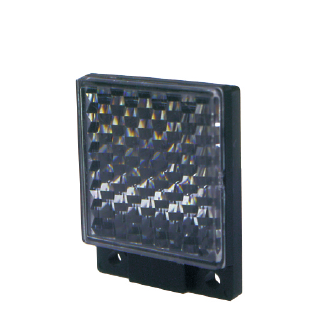

  • Small type

    V-42

    Sensing distance:
    0.01 to 7 m
    42 × 35 mm

Protective mounting bracket　LV2 series

  • LV2-S01

    • Ultra-durable 3 mm thick type
    • Rust-resistant stainless steel
    • Sensor is firmly secured using M4 Hex socket head cap screws
    • The bracket is also firmly secured using M6 screw

  • LV2-S02

    • Ultra-durable 3 mm thick type
    • Rust-resistant stainless steel
    • Sensor is firmly secured using M4 Hex socket head cap screws
    • The bracket is also firmly secured using M6 screw

Connector cableDiscontinued and successor models of connector cables

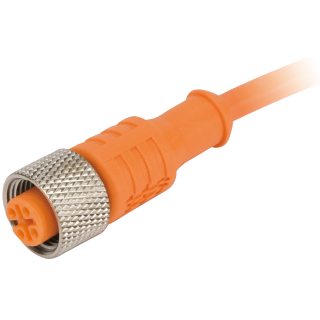

  • Straight

    DOL-1204-G02M

    M12, 4-pin connector cable Cable length: 2 m
    *5 m and 10 m cables are separately available.

Successor models

  • Straight

    YF2A14-020VB3XLEAX

    M12, 4-pin connector cable Cable length: 2 m
    *5 m and 10 m cables are separately available.
