LED Lighting Controller AdvancedOPPF Series
Increased capacity with up to 48 W in PWM mode and up to 24 W in strobe mode
- “FALUX sensing” for monitoring brightness and temperature monitoring and for controlling feedback
- Support for RS232, parallel, and 0 to 5 V analog input for external dimming control
Lineup
| Type | Model | Type* | Weight [g] | Illumination Output | Capacity |
|---|---|---|---|---|---|
|
PWM frequency 500 kHz type |
OPPF-30MN-Pfr | Master device NPN output | 385 | 2ch | See table 2 |
| OPPF-30MP-Pfr | Master device PNP output | ||||
| OPPF-30SN-Pfr | Slave device NPN output | 375 | |||
| OPPF-30SP-Pfr | Slave device PNP output |
*When using NPN or PNP output for error output or illumination output, select the output according to the input device. NPN/PNP is common for lighting output and lighting/dimming control input.
Table 2 Pfr type capacity
| Mode | Channel |
When using master and slave devices alone |
When linked | |
|---|---|---|---|---|
| PWM | Using 1 channel only | Max. 25 W | Max. 20 W | |
|
When using 2 channels |
Individual | Max. 25 W | Max. 15 W | |
| Total | Max. 30 W | Max. 25 W | ||
| Strobe | Using 1 channel only | Max. 15 W | ||
|
When using 2 channels |
Individual | |||
| Total | Max. 30 W | |||
| Model | OPPF-30MN-Pfr | OPPF-30MP-Pfr | OPPF-30SN-Pfr | OPPF-30SP-Pfr |
|---|---|---|---|---|
| Type | Master device NPN output | Master device PNP output | Slave device NPN output | Slave device PNP output |
|
Power consumption of connectable lighting |
PWM mode: When using master and slave devices alone: Max. 25 W when using 1 ch only | |||
| Max. 25 W when using 2 ch (individual), Max. 30 W when using 2 ch (total) | ||||
| When linked: Max. 20 W when using 1 ch only, Max. 15 W when using 2 ch (individual) | ||||
| Max. 30 W when using 2 ch (total), Strobe mode: Max. 15 W (per channel) | ||||
| Dimming method | PWM dimming, Frequency: 50/100/500 kHz | |||
| 1,000 steps (50/100 kHz), 240 steps (500 kHz) *Common for PWM mode and strobe mode | ||||
| Dimming value display at 500 kHz: (0 to 239) × 25/6 (truncated after decimal point) | ||||
| Display examples: 0, 4, 8, 12, 16, 20, 25, 29, ... 991, 995 | ||||
Please note that specifications are subject to change without prior notice for product improvement purposes

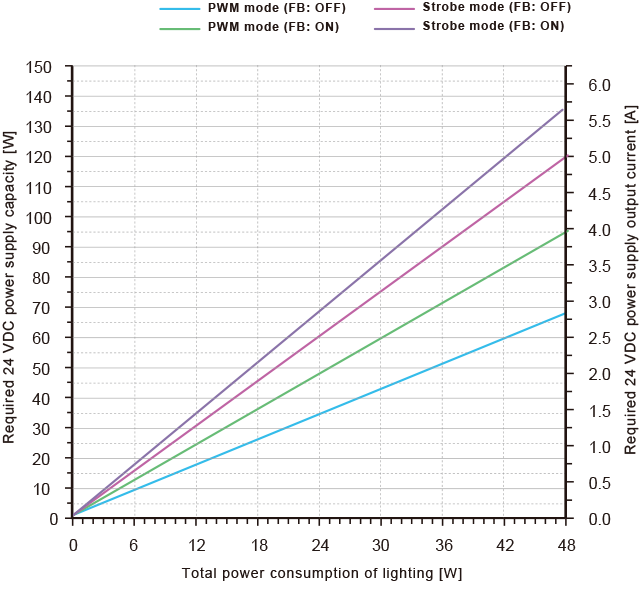

Required 24 VDC power supply capacity to handle power consumption of lighting
-
Based on the total power consumption of the LED lighting to be connected, select a 24 VDC power source that offers more than the required capacity.
Note: When using in conjunction with other equipment, the characteristics of the other equipment will affect the power supply, so be sure to choose a power supply that has a sufficient margin (about twice as much) as that shown in the table.
*Evaluation power source: IDEC PS5R-SF24 (120 W), PS5R-SG24 (240 W)
-
