Compact Laser Displacement SensorsCD2S Series

DOWNLOAD

Compact and high-accuracy
delivering a new level of stable detection

  • High-visibility OLED display
  • Equipped with the ATMOS image sensor
  • Stable detection not affected by color or material
CD2S Series

I/O Circuit Diagrams

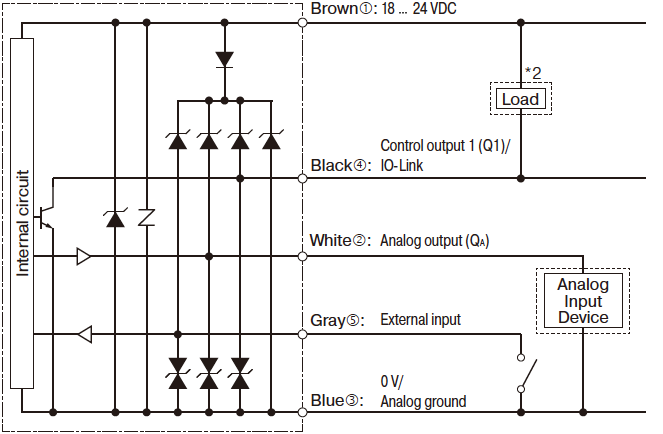

  • NPN setting*1

    *1. When connecting to IO-Link with the NPN setting, use the IO-Link Master UR Series or a sink-type compatible IO-Link Master.
    *2. When used as control output 1 (Q1)

  • PNP setting

    *1. When used as control output 1 (Q1)

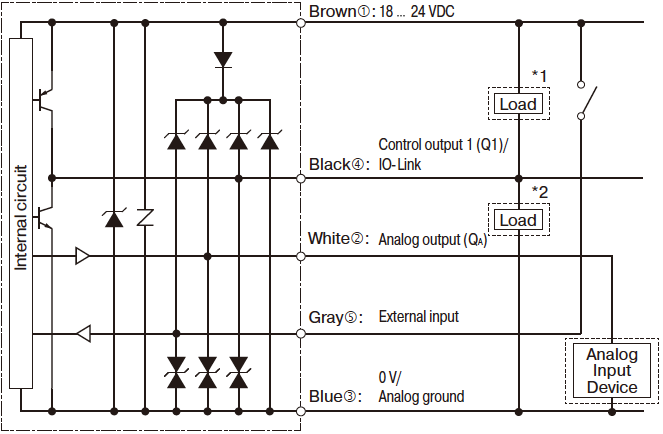

  • Push-pull setting

    *1. When used as control output 1 (Q1) with NPN connection
    *2. When used as control output 1 (Q1) with PNP connection

  • M12 connector pin assignments

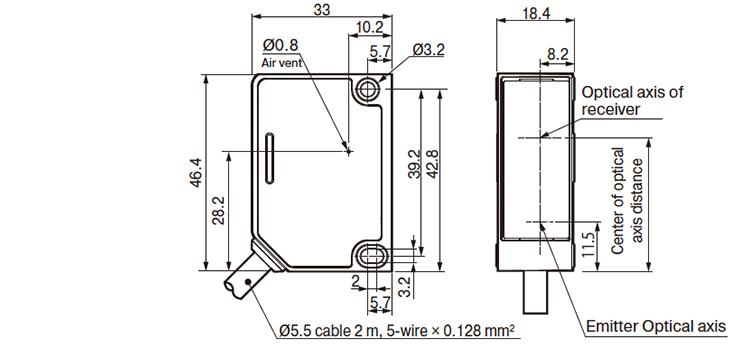

Dimensions

(Unit : mm)

Cable types

Center of optical axis distance per model

(Unit : mm)
Model CD2S-30
CD2S-30M12		 CD2S-50
CD2S-50M12		 CD2S-110
CD2S-110M12
Distance to optical axis of receiver 27.3 29 30.3

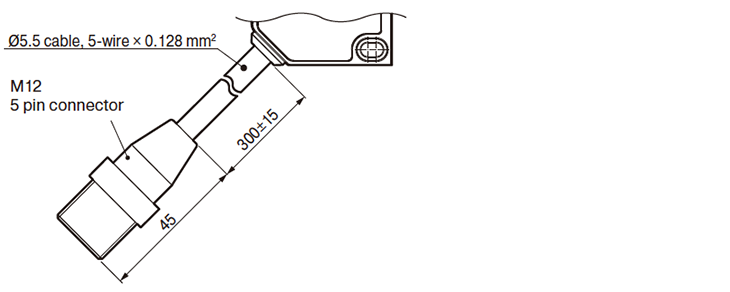

Pigtail types

Connector cables

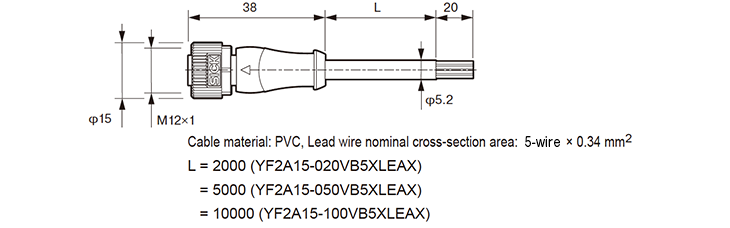

  • Standard cables

    YF2A15-020VB5XLEAX
    YF2A15-050VB5XLEAX
    YF2A15-100VB5XLEAX

    Minimum bending radius:
    26 mm (when fixed in place)

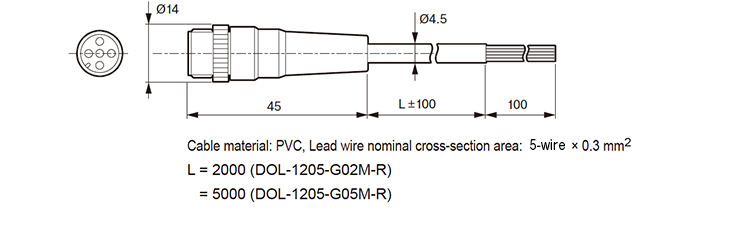

  • Bend-resistant cables

    DOL-1205-G02M-R
    DOL-1205-G05M-R

    Minimum bending radius:
    9 mm (when fixed in place)
    27 mm (when movable)
