Fiber-Optic CablesNF Series Limited diffuse reflective type
Detection at a limited distance for mapping and alignment
- Glass substrate detection and general-purpose types available NF-DC04, NF-DC05, NF-DC06, NF-DH06,
NF-DH10: End of sales by August 2025

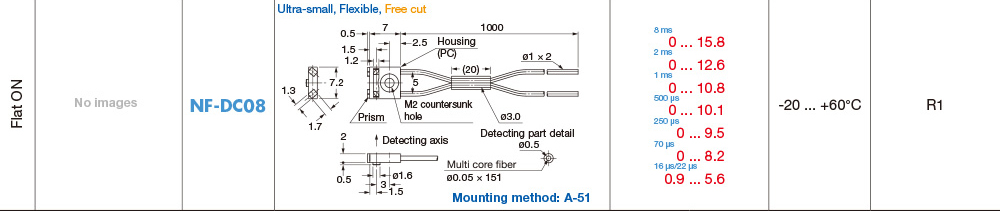

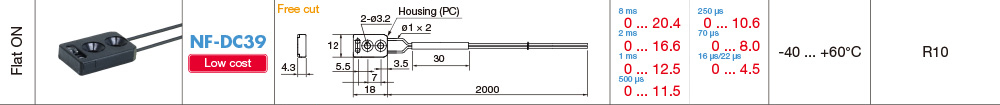

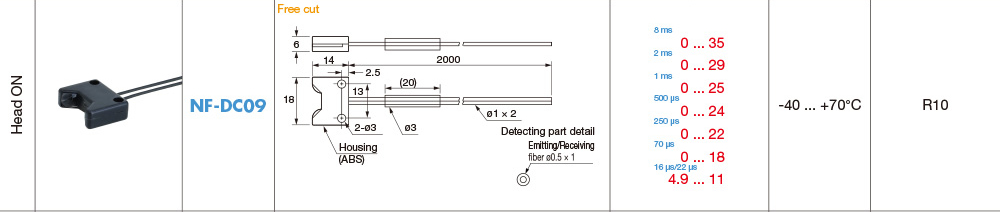

Limited diffuse reflective Fiber-Optic Cables (general-purpose)
*Download the drawing to check the tolerances.
Click the image to enlarge.
•The sensing distances for the diffuse type Fiber-Optic Cables are values on 500 × 500 mm white paper.
•Install with an ambient humidity between 35 and 85%. In the case of 85% RH, the ambient temperature should be between 0 and 40℃.
