Digital Color/Mark Detection TypeDM Series
RGB color/mark sensor for automatically selecting light source color
- 3-color (red, green, blue) light source switching function
- Threshold value digital adjustment function
- 8-bank switching function
I/O circuit diagram
-

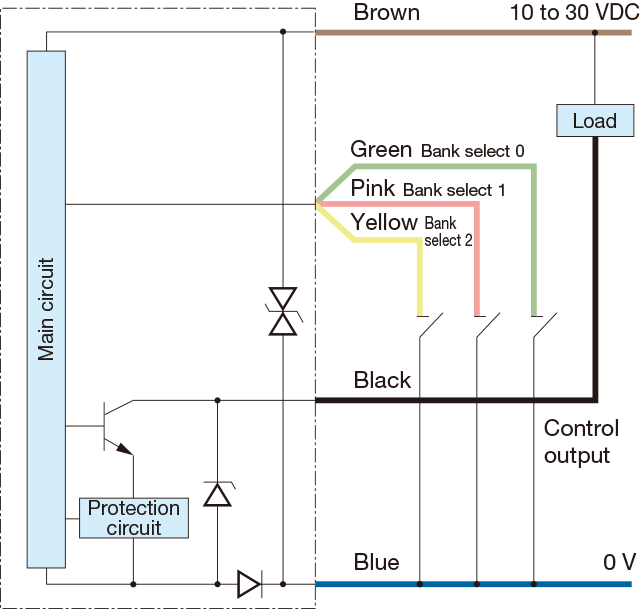

NPN output type
-

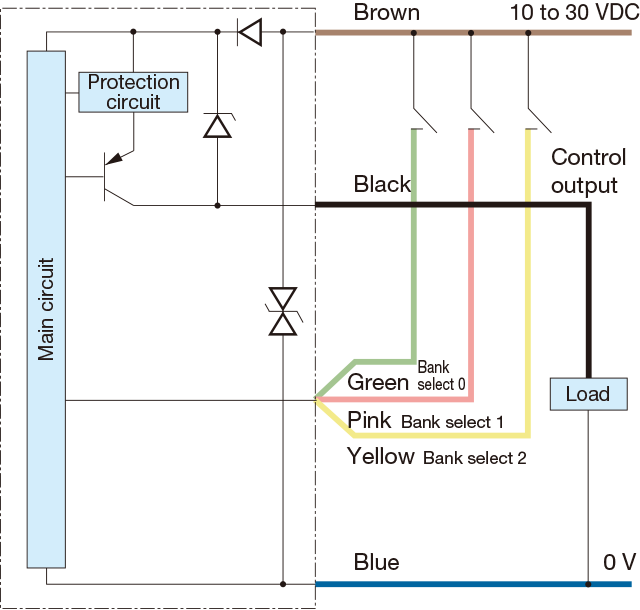

PNP output type
-
Bank number and input signal (NPN)
-
Connecting
▪When the bank switching line is not needed, cut the lead wire and wrap it individually with insulating tape, and do not connect it to any other terminal.
Notes
▪ When using a switching regulator for the power supply, be sure to ground the frame ground terminal.
▪ Because wiring sensor wires with high-voltage wires or power supply wires can result in malfunctions due to noise, which can cause damage, make sure to wire separately.
▪ Avoid using the transient state while the power is on (approx. 100 ms).

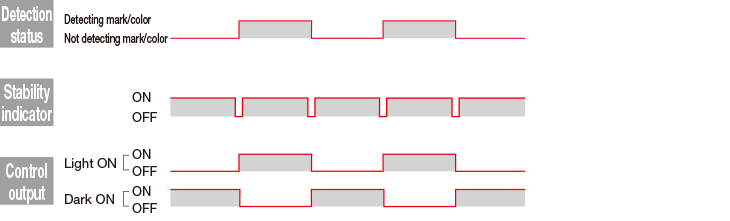

Operation mode
*The operation mode is the same for NPN output and PNP output.

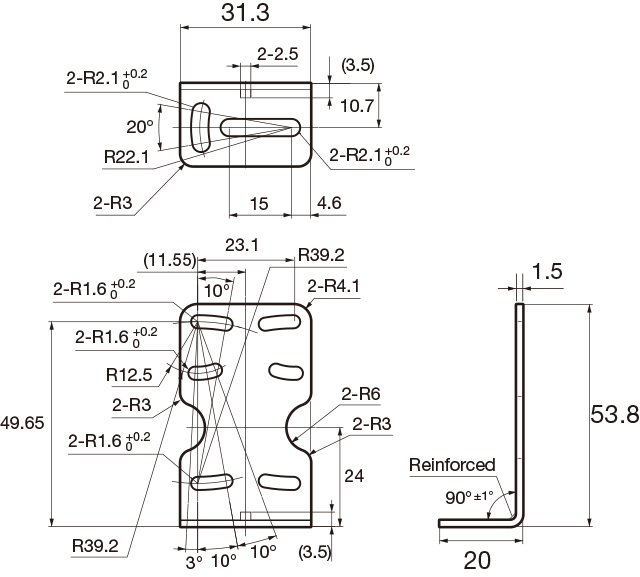

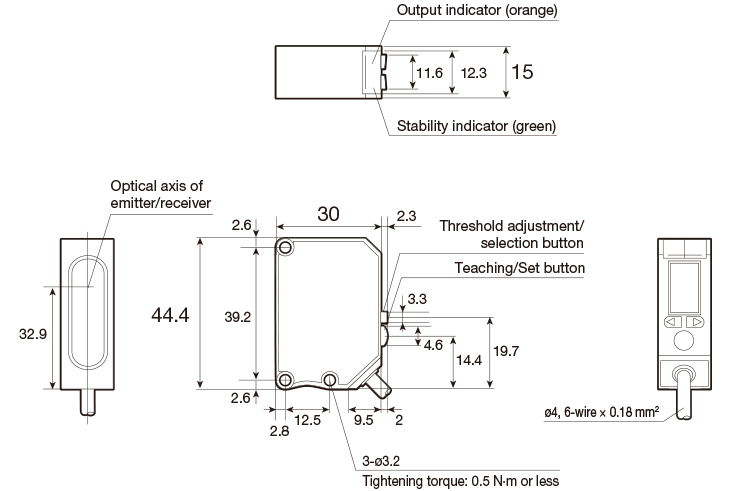

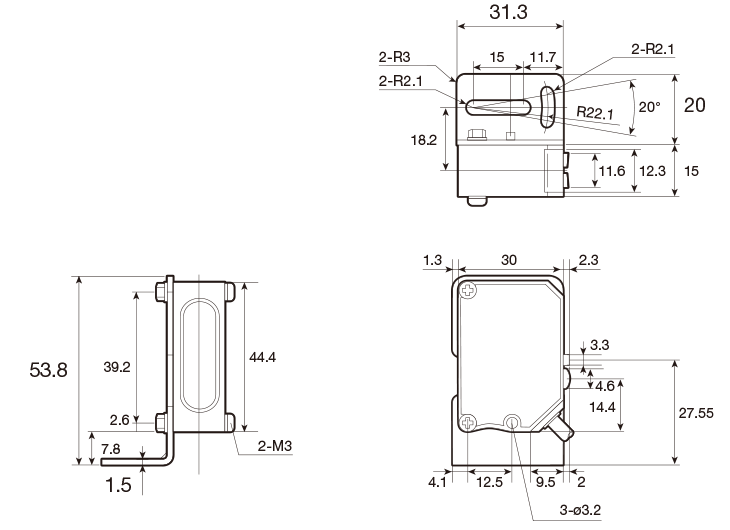

Dimensions
Unit : mm
