White LED Fiber AmplifiersD3WF Series

DOWNLOAD

White light source enables easy detection of subtle color differences.

  • 3 teaching modes to support various detection requirements
  • Fastest response time of 16μs in the world
  • Easy-to-read 3 display modes of value, percentage and bar graph
  • Dual Sensitivity Correction for stable operation
D3WF Series

I/O circuit diagram

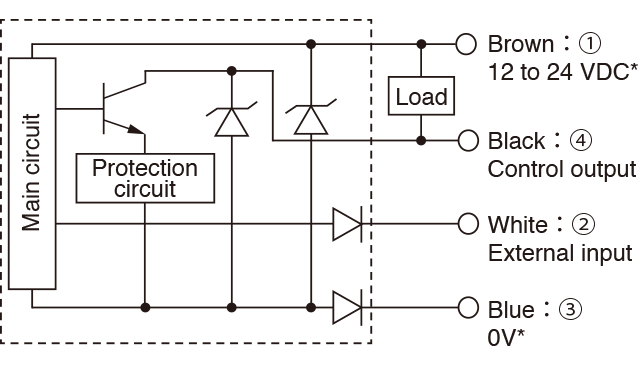

  • NPN output

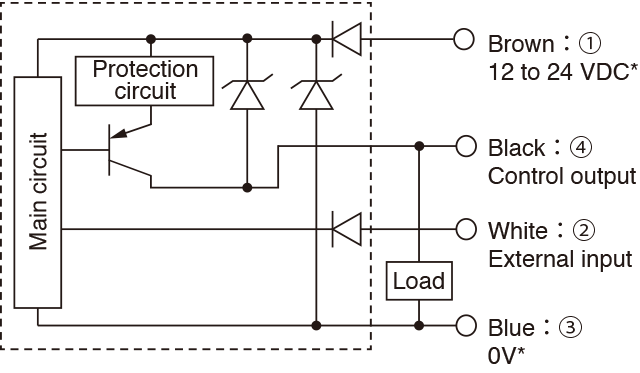

  • PNP output

・Power is supplied to slave units from the master unit, so the power supply terminals
(brown: 12 to 24 VDC and blue: 0V) are not connected.

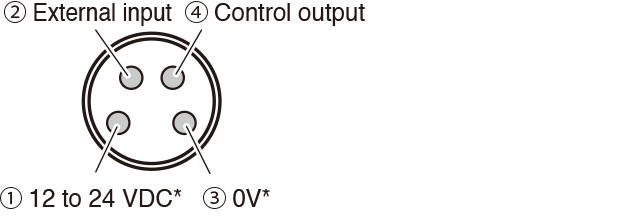

  • M8 connector pin layout

    ▪ As the power is supplied to slave units from the master unit, no connection with 12 to 24VDC and 0V pins are required.

Dimensions

Unit : mm

Stand-alone

D3WF-TN
D3WF-TP

Master / Slave

D3WF-TMCN4
D3WF-TMCP4
D3WF-TSCN4
D3WF-TSCP4

Connector cable
Existing models

  • JCN-S, JCN-5S, JCN-10S

  • JCN-L, JCN-5L, JCN-10L

New models

  • M84CN-2S, M84CN-5S, M84CN-10S

  • M84CN-2L, M84CN-5L, M84CN-10L
