Stainless-steel Housing SensorsBGS-ZM Series

DOWNLOAD

Excellent water resistance/ oil resistance!
Suitable for automobiles, machine tools and food industry

  • Equipped with a distance adjustment to enable distance setting
  • Employs a low deterioration 4 element red LED for the Light source
  • Degree of protection: IP69K (cable type), Equivalent to IP69g (connector type)
BGS-ZM Series

Output circuit diagram

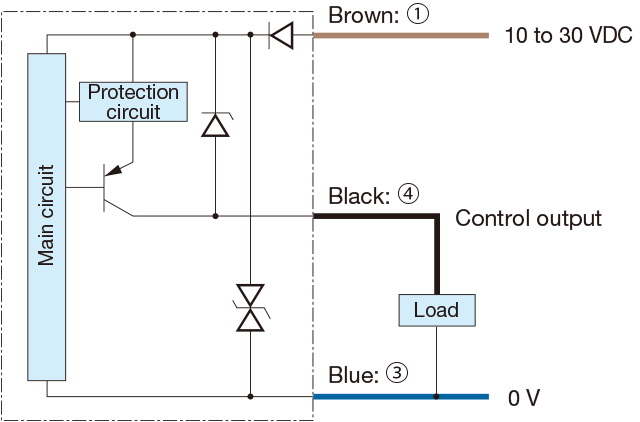

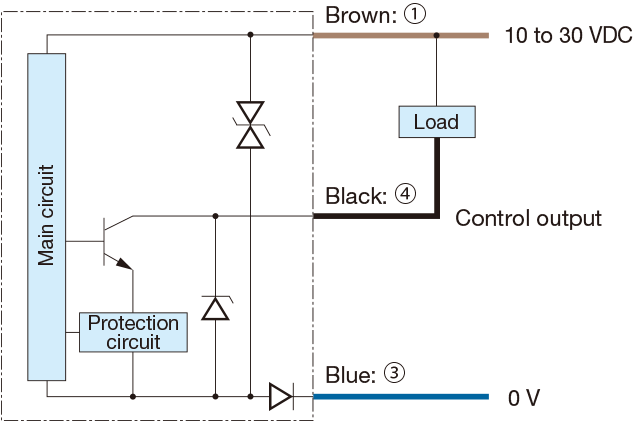

  • NPN output type

  • PNP output type

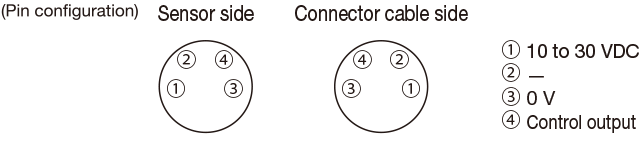

  • Connector type

    Connecting

    ▪1 to 4 are connector pin No.

  • Notes

    ▪ When using a switching regulator for the power supply, be sure to ground the frame ground terminal.
    ▪ Because wiring sensor wires with high-voltage wires or power supply wires can result in malfunctions due to noise, which can cause damage, make sure to wire separately.
    ▪ Avoid using the transient state while the power is on (approx. 100 bms).

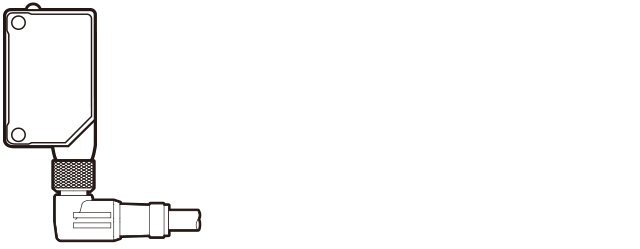

    ▪ The connector direction is fixed as in the drawing below when you use L-shaped connector cable. Be aware that rotation is not possible.

Dimensions

(Unit : mm)

Cable type

Connector type

Mounting bracket

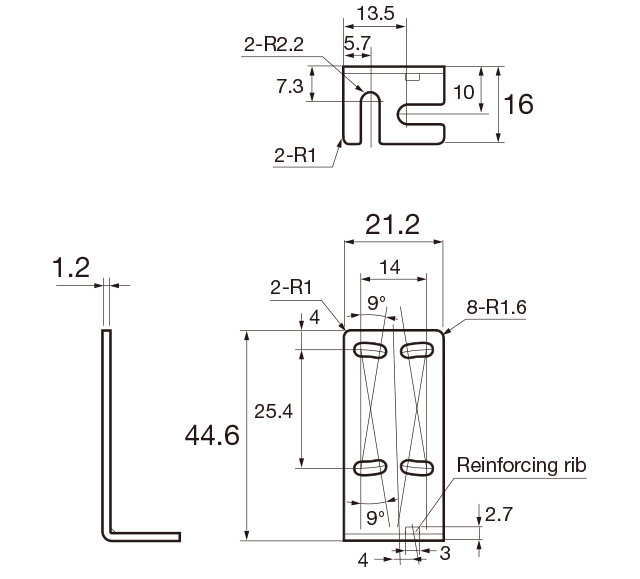

  • BEF-W100-B (included with cable type)

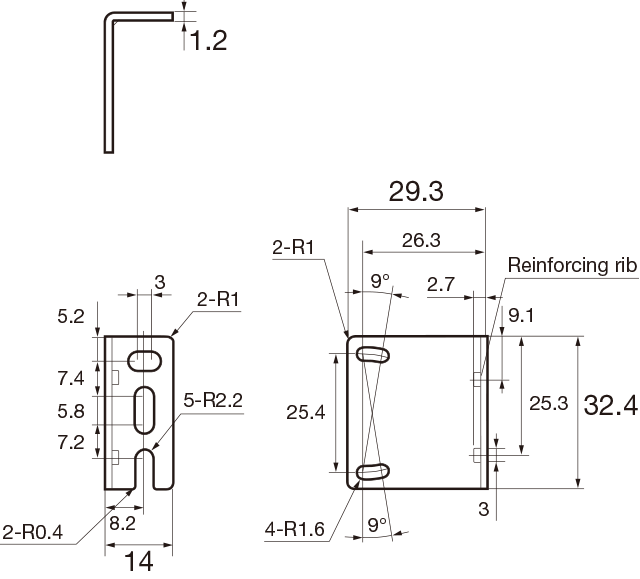

  • BEF-W100-A (included with connector type)

Protective mounting bracket

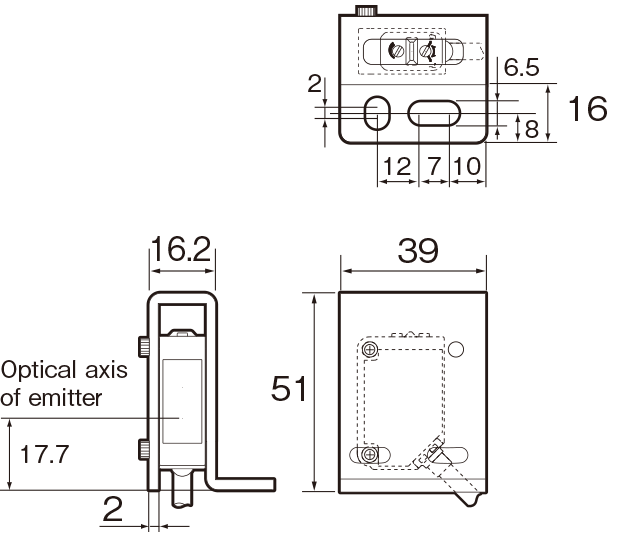

  • LK-S01

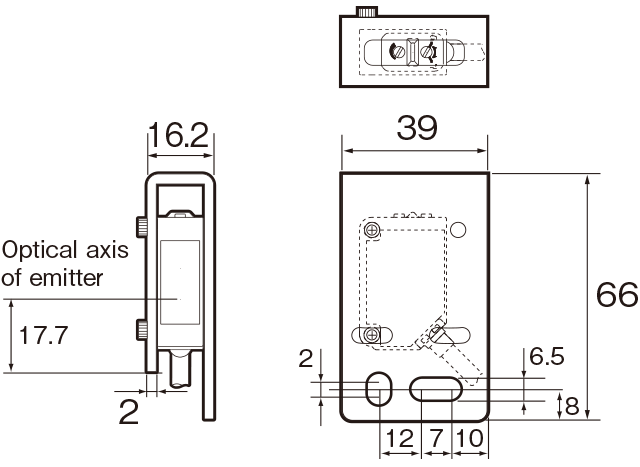

  • LK-S02

Connector cables

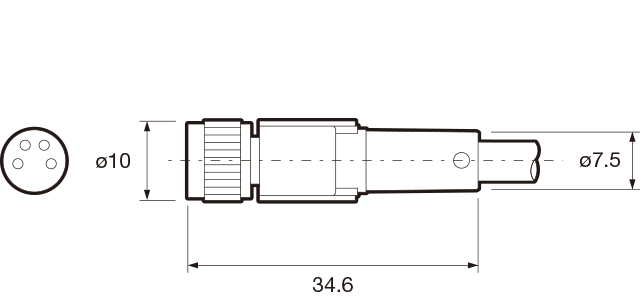

  • DOL-0804-G02MC
    DOL-0804-G05MC
    DOL-0804-G10MC

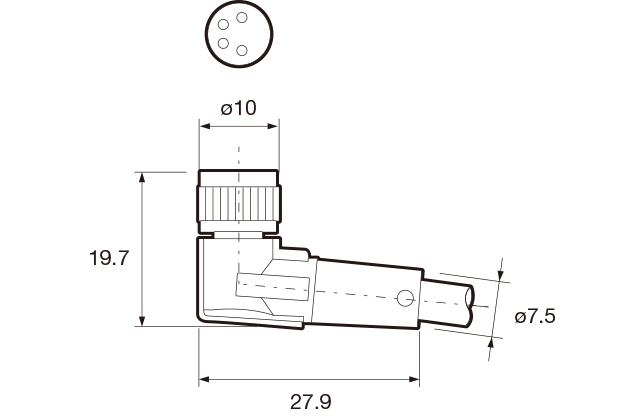

  • DOL-0804-W02MC
    DOL-0804-W05MC
    DOL-0804-W10MC

Successor models

  • YF8U14-020UA3XLEAX
    YF8U14-050UA3XLEAX
    YF8U14-100UA3XLEAX

  • YG8U14-020UA3XLEAX
    YG8U14-050UA3XLEAX
    YG8U14-100UA3XLEAX
