Standard-sized SensorsBGS-ZL/BGS-Z Series

DOWNLOAD

Laser and high-power narrow beam LED sensors

  • Highly accurate height difference detection due to low hysteresis
  • 2 sensing ranges with laser models and 3 sensing ranges with LED models available
  • Fast response of 250μs on laser models and 500μs with LED models
  • * UL recognized on LED models
BGS-ZL/BGS-Z Series

I/O circuit diagram

    Laser type: BGS-ZL10☐/BGS-ZL30☐

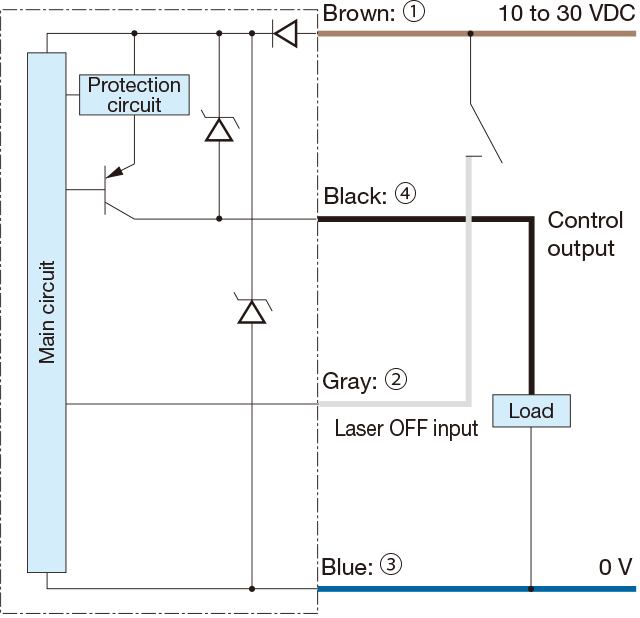

  • PNP output type

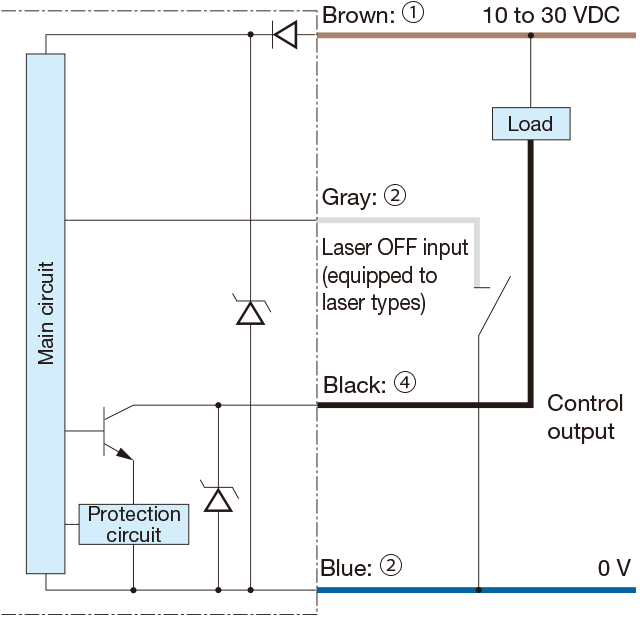

  • NPN output type


    • LED type : BGS-Z10☐/BGS-Z15☐/BGS-Z30☐

  • NPN output type

  • PNP output type

  • Notes

    ▪ Connect frame ground to the earth when the switching regulator is used for power supply.
    ▪ Because wiring sensor wires with high-voltage wires or power supply wires can result in malfunctions due to noise, which can cause damage, make sure to wire separately.
    ▪ Avoid using the transient state while the power is on (approx. 100 ms).

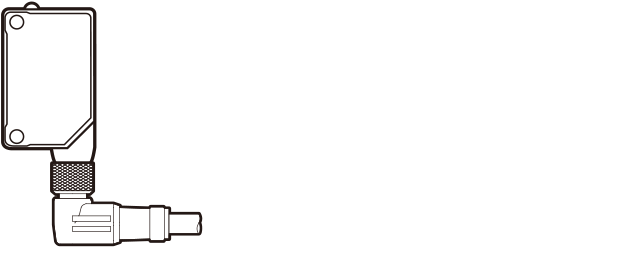

    ▪ The connector direction is fixed as in the drawing to the right when you use L-shaped connector cable. Be aware that rotation is not possible.

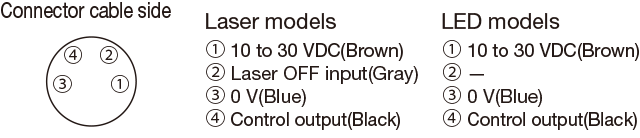

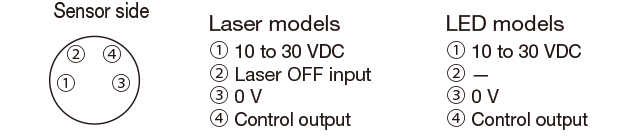

  • Connector pin assignment

Dimensions

(Unit : mm)

Sensor

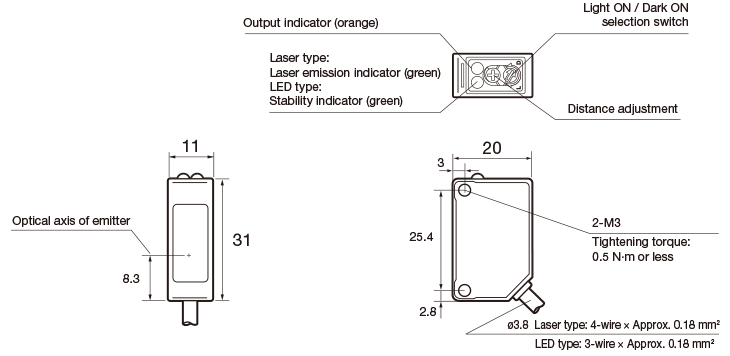

  • Cable type

Connector type

Mounting bracket

Cable type (when using BEF-W100-B)

Connector type (when using BEF-W100-A)

Connector cable (optional)

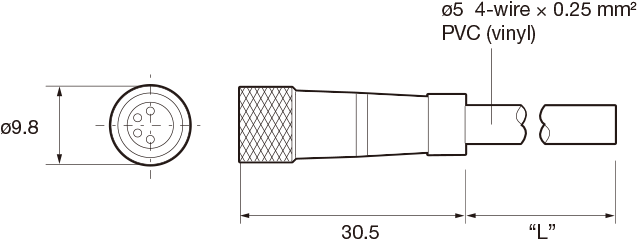

  • JCN-S, JCN-5S, JCN-10S

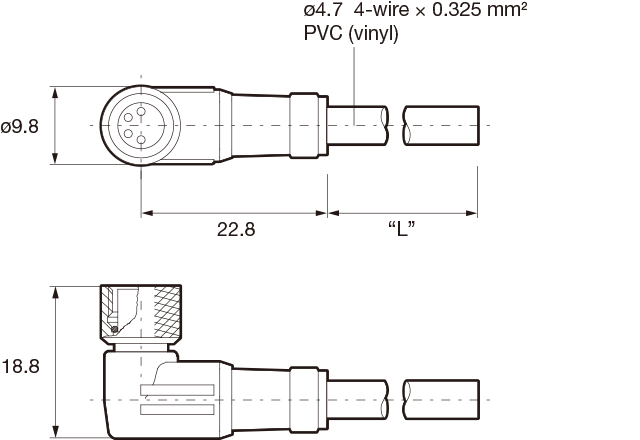

  • JCN-L, JCN-5L, JCN-10L

Successor models

  • M84CN-2S, M84CN-5S, M84CN-10S

  • M84CN-2L, M84CN-5L, M84CN-10L

Laser light precautions

  • This product emits a Class 1 (II) visible laser beam that is compliant with IEC/JIS, FDA laser safety standards.
    Warning and explanation labels are affixed to the sides of the sensor.
