Standard-sized SensorsZ2 Series

DOWNLOAD

Cost effective and Eco-Friendly

  • Low price achieved by equipping our unique Opto-ASIC
  • Employs a newly developed 4 element red LED light source
  • Ultra-low current consumption
  • Easy-to-see indicators and operating panel
Z2 Series

Output circuit diagram

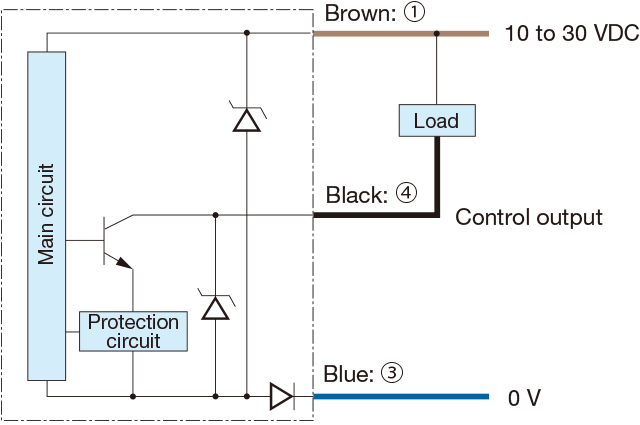

  • NPN output type

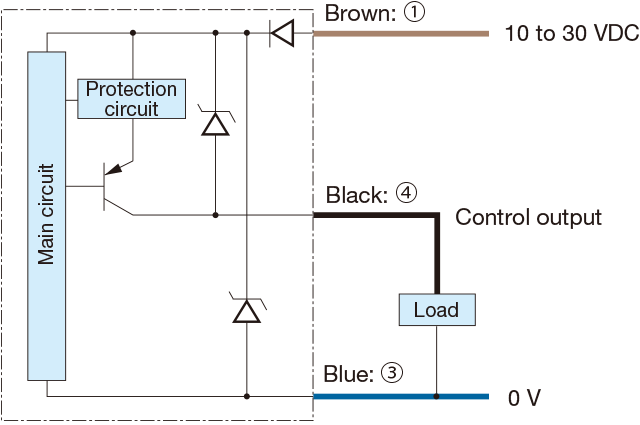

  • PNP output type

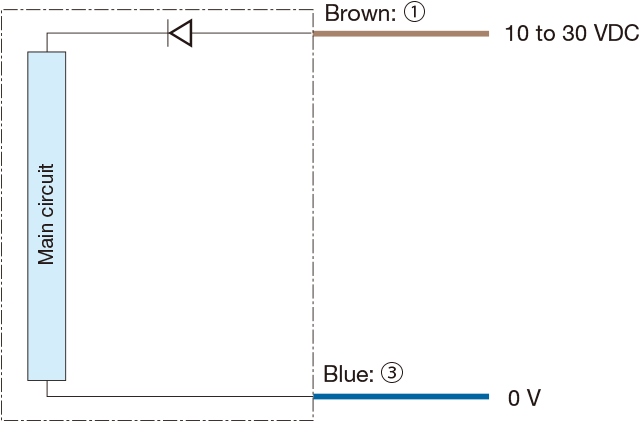

  • Through-beam type emitter

  • Connector type

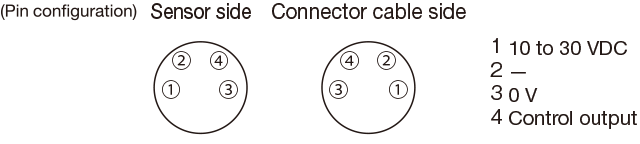

    (Pin configuration) Sensor side Connector cable side

  • Connecting

    ▪ 1 to 4 are connector pin No.

    Notes

    ▪ When using a switching regulator for the power supply, be sure to ground the frame ground terminal.
    ▪ Because wiring sensor wires with high-voltage wires or power supply wires can result in malfunctions due to noise, which can cause damage, make sure to wire separately.
    ▪ Avoid using the transient state while the power is on (approx. 100 ms).

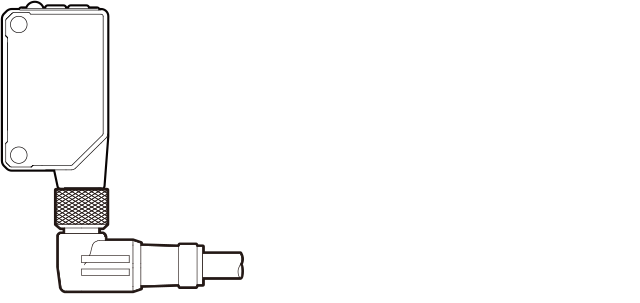

    ▪ The connector direction is fixed as the drawing below when you use L-shaped connector cable. Be aware that rotation is not possible.

Dimensions

Unit : mm

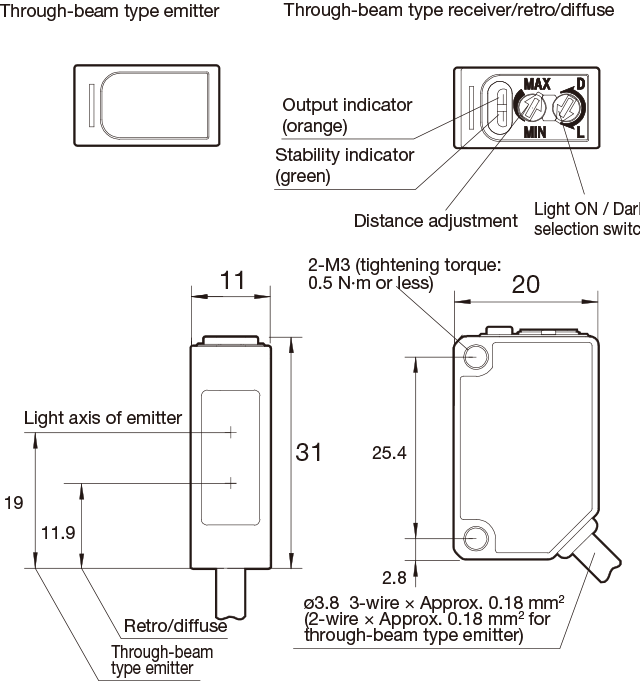

Sensor

  • Cable type

  • Connector type

Mounting bracket

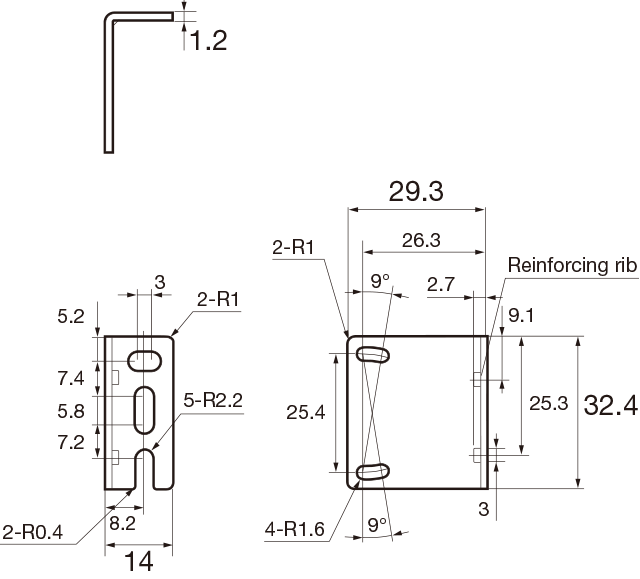

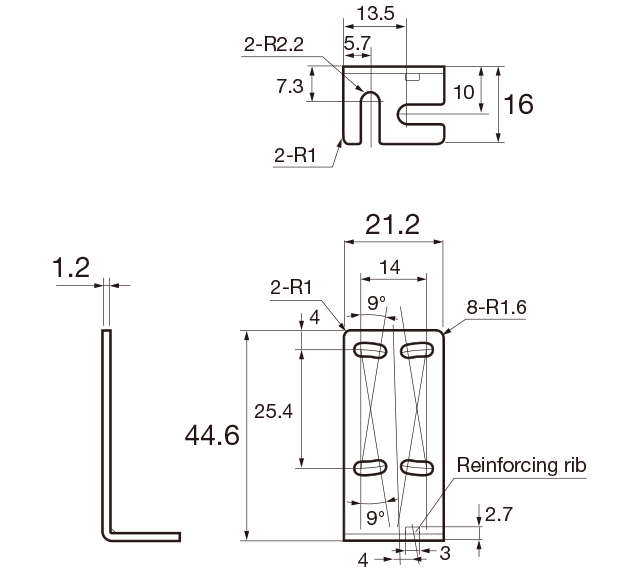

  • BEF-W100-B (included with cable type)

  • BEF-W100-A (included with connector type)

Reflector

Unit : mm

  • V-61: Standard type reflector
    (included with retro-reflective type)

  • V-42: Small reflector (optional)

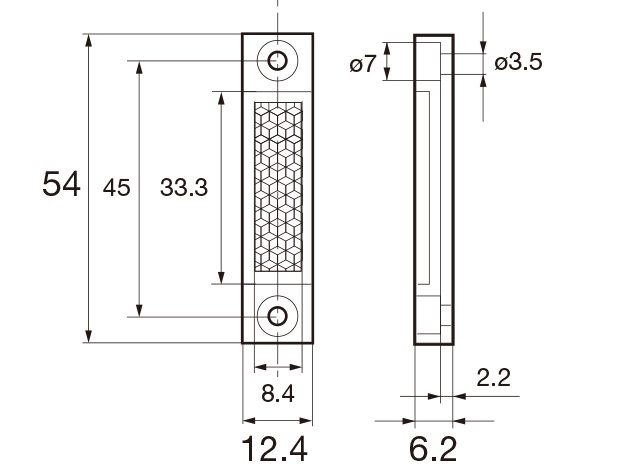

  • P45A: Vertical type reflector (optional)

  • P25: Side mount reflector (optional)

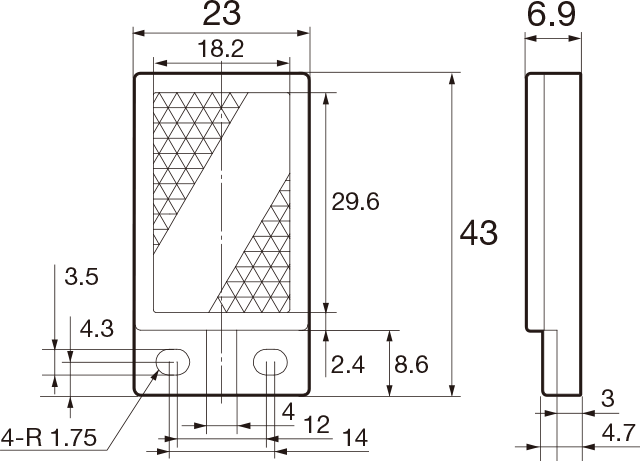

  • V-30: Ultra-small reflector (optional)

Protective mounting bracket

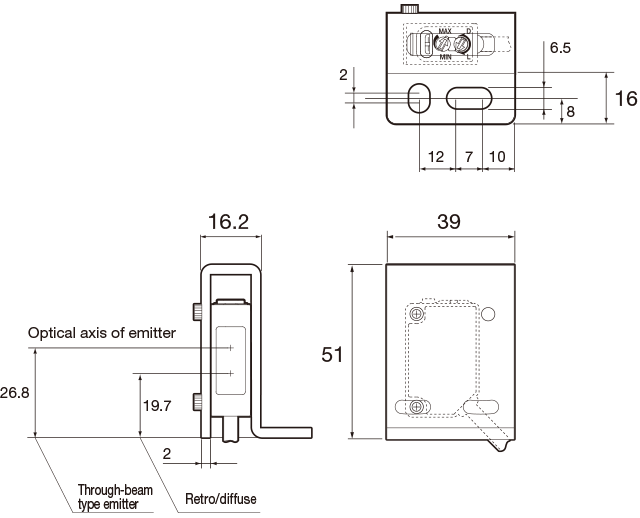

  • LK-S01

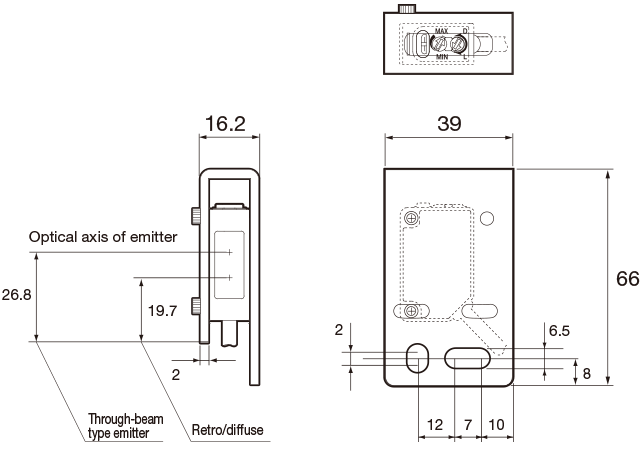

  • LK-S02

Connector cable (optional)

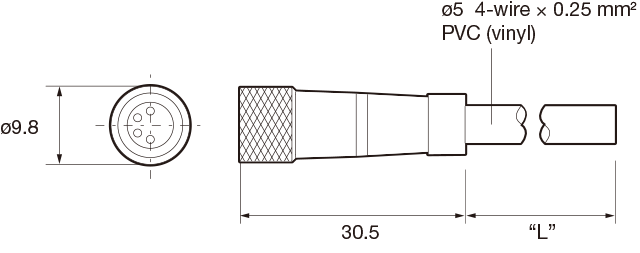

  • JCN-S, JCN-5S, JCN-10S

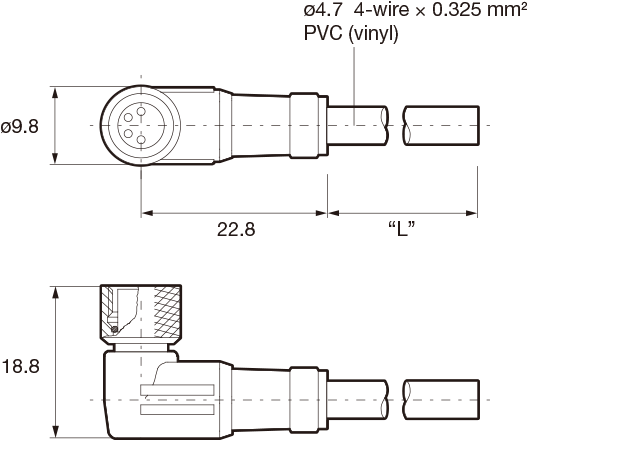

  • JCN-L, JCN-5L, JCN-10L

Successor models

  • M84CN-2S, M84CN-5S, M84CN-10S

  • M84CN-2L, M84CN-5L, M84CN-10L

Slit mask

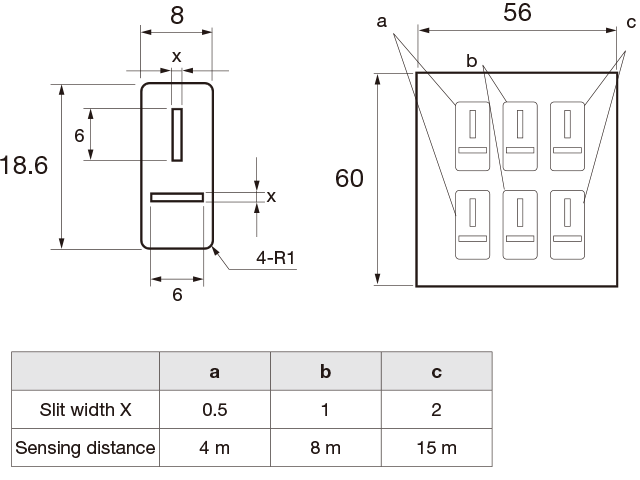

  • BL-W100: Slit mask (optional)
