Setup tool for IO-Link Master UR SeriesUR Explorer
A comprehensive tool for configuring and monitoring
UR-MS, UR-ME, UR-ES, and UR-EE Series in a unified interface.
- Provides functionality for monitoring and validating configuration parameters and process data of IO-Link devices
- Supports search and installation IODD files provided by various vendors
- Supports backup and restoration UR Series and IO-Link devices

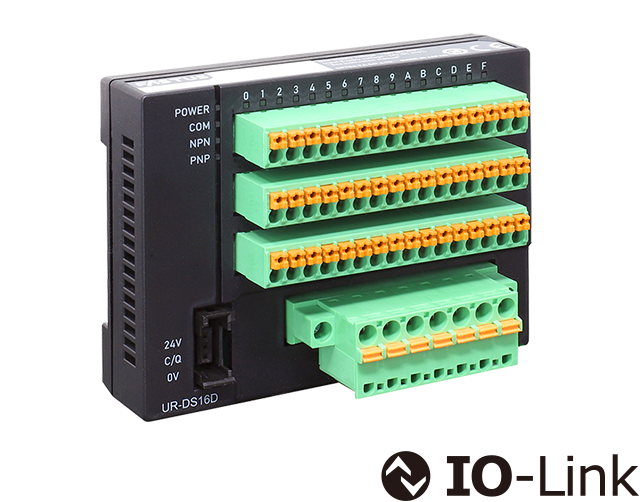

UR-DS Series
-
● IO-Link Hub connecting to an IO-Link Master, supporting Digital I/O, Analog I/O, and Temperature inputs
● IO-Link Hubs that can support digital inputs or outputs up to 256 points
(16 channels x 16 points) *When connected to the OPTEX FA UR Series.● By connecting to an IO-Link Master, various I/O functions can be expanded. This distributed configuration contributes to space-saving, reduced wiring, and improved noise resistance.
● A new IO-Link Hub supporting RTD input is now available. It allows temperature measurement using pt100 RTD sensors, with data transmitted and monitored via IO-Link communication.
Click here for details
IO-Link devices of OPTEX FA
TI-S Series
-
● Designed to be less susceptible to ambient temperature changes
● Ring laser pointer for visual confirmation of field of view
● Easy-to-read full color display
*The cycle time between OPTEX FA IO-Link Master UR Series and this deviceIO-Link version 1.1.3 Communication speed COM3 (230.4kbps) Process data Cycle time* 0.5 ms Input: 4 bytes
→ IO-Link Master・Measurement temperature data (INT 16 bit)
・Alarm bit
・Laser lighting statusOutput: 1 byte
IO-Link Master →・Laser control
・Hold, TriggerDevice data ・Emissivity
・Alarm threshold
・Measurement mode select
・Head temperature
Click here for details
SA-80T-4IO
-
● Measurement values can be obtained as digital values.
● No need for analog I/O
*The cycle time between OPTEX FA IO-Link Master UR Series and this deviceIO-Link version 1.1 Communication speed COM3 (230.4 kbps) Process data Cycle time* 3.0 ms Input: 4 bytes
→ IO-Link Master・Measurement temperature data (INT 16 bit)
・Alarm bitOutput: 0 bytes − Device data ・Emissivity
・Alarm threshold
・Operating hour
・Predicting maintenance timing etc.
Click here for details
CD2H Series
-
● Measurement values can be obtained as digital values.
● No conversion errors caused by D/A conversion, resulting in highly accurate measurements.
*The cycle time between OPTEX FA IO-Link Master UR Series and this deviceIO-Link version 1.1 Communication speed COM3 (230.4 kbps) Process data Cycle time* 0.7 ms Input: 6 bytes
→ IO-Link Master・Measurement distance data (INT 32 bit)
・Detection bitOutput: 0 bytes − Device data ・Offset
・Laser off
・Moving average
・Threshold value
・Operating hour etc.
Click here for details
TOF-DL250GC
-
● Measurement values can be obtained as digital values.
● No need for analog I/O
*The cycle time between OPTEX FA IO-Link Master UR Series and this deviceIO-Link version 1.1 Communication speed COM3 (230.4 kbps) Process data Cycle time* 1.0 ms Input: 4 bytes
→ IO-Link Master・Measurement distance data (UINT 16 bit)
・Detection bitOutput: 0 bytes − Device data ・Laser off
・Threshold value
・Operating hours
・Predicting maintenance timing etc.
Click here for details
D4RF Series (Stand-alone type)
-
● Predictive notification of maintenance timing based on decrease in receiving light amount
*The cycle time between OPTEX FA IO-Link Master UR Series and this deviceIO-Link version 1.1 Communication speed COM3 (230.4 kbps) Process data Cycle time* 0.5 ms Input: 4 bytes
→ IO-Link Master・Received light amount data (UINT 16 bit)
・Detection bitOutput: 0 bytes − Device data ・LED off
・Threshold value
・Operating hours
・Predicting maintenance timing etc.
Click here for details
Z4/Z4B Series
-
● Predictive notification of maintenance timing based on receiving light amount decline
*The cycle time between OPTEX FA IO-Link Master UR Series and this deviceIO-Link version 1.1 Communication speed COM3 (230.4 kbps) Process data Cycle time* 0.5 ms Input: 2 bytes
→ IO-Link Master・Received light amount data (UINT 15 bit)
・Detection bitOutput: 0 bytes − Device data ・LED off
・Threshold value
・Operating hours
・Predicting maintenance timing etc.
Click here for details on Z4B Click here for details on Z4
UC2-IOL
-
● Connect up to 16 units of our non-IO-Link compatible sensors to IO-Link
*The cycle time between OPTEX FA IO-Link Master UR Series and this deviceIO-Link version 1.1 Communication speed COM3 (230.4 kbps) Process data Cycle time* 2.2 ms Input: 32 bytes
→ IO-Link Master・Process data for various connected devices
Max. 16 devicesOutput: 0 bytes −
Click here for details
UC2-IOL connectable sensors
Through-beam Edge Laser Sensors
TD1 Series
● Light axis alignment function for easy installation
● Comptact desing (W 9.6 x D 21 x H 61 mm)
*Separate amplifier unit CDA Series required
Laser Displacement Sensors
CD22 Series
● Featuring high performance functionality like high-end models
● CC-Link communication unit and connectable unit available
*Separate amplifier unit CDA Series required
White LED Fiber-Optic Sensors
D3WF Series
● Dual sensitivity correction for stable operation
● 100% display for better recognition of level change
*Separate amplifier unit CDA Series required
Fiber-Optic Sensors
D4RF Series (when multiple units are connected)
● Fiber insertion indicators for instant verification
● Large LED Indicators
