IO-Link HubUR-DS Series
IO-Link device that connects multiple standard sensors
and actuators to an IO-Link Master. (IO-Link Hub)
- IO-Link Hub connecting to an IO-Link Master, supporting Digital I/O, Analog I/O, and Temperature inputs
- IO-Link Hubs that can support Digital Inputs or Outputs up to 256 points (16 channels x 16 points)
*When connected to the OPTEX FA UR Series. - By connecting to an IO-Link Master, various I/O functions can be expanded.
This distributed configuration contributes to space-saving, reduced wiring, and improved noise resistance. - A new IO-Link Hub supporting RTD input is now available.
It allows temperature measurement using pt100 RTD sensors, with data transmitted and monitored via IO-Link communication.
Unit that converts 1 CH of IO-Link ports in IO-Link Master to 16-point of digital I/O
Expandable I/O up to 256 (16 x 16) points by connecting to IO-Link Master UR Series.
Digital input is Sink(NPN) / Source(PNP), all terminals are switched at once.
Digital output is Sink(NPN) / Source(PNP), each pin individually switchable (our original).
IO-Link Hub, Digital I/O 16-input
UR-DS16D
IO-Link Hub, Digital I/O 16-output
UR-DS16T
IO-Link Hub,
Digital I/O 8-input, 8-output
UR-DS8D8T
Unit that converts 1 CH of IO-Link ports in IO-Link Master to 4 CH of analogl I/O
Analog inputs are voltage (0 to 10 VDC, -10 to 10 VDC, 0 to 5 VDC, 1 to 5 VDC) and current (0 to 20 mA, 4 to 20 mA), switchable for each channel individually.
Analog outputs are voltage (0 to 10 VDC, -10 to 10 VDC, 0 to 5 VDC) and current (0 to 20 mA), switchable for each channel individually.
IO-Link Hub, Analog I/O 4-input
UR-DS4AD
IO-Link Hub, Analog I/O 4-output
UR-DS4DA

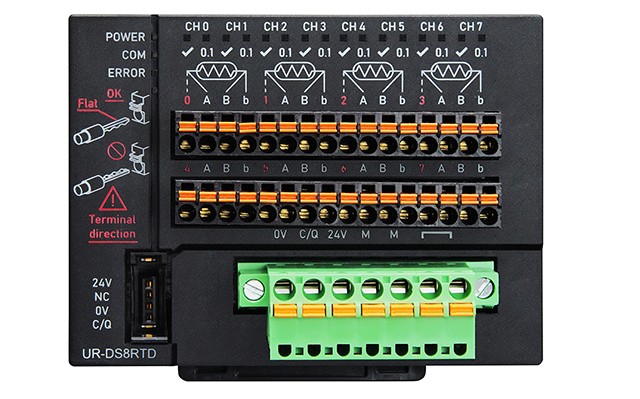

Unit that converts 1 IO-Link port to 8 channels of RTD inputs
Unit that transmits temperature values measured by RTD from -200 to 1,000°C via IO-Link communication.
Achieves high-precision measurement with an accuracy of ±0.3°C when the measurement range is limited to -60 to +300°C.
IO-Link Hub,
Temperature RTD 8-input
UR-DS8RTD

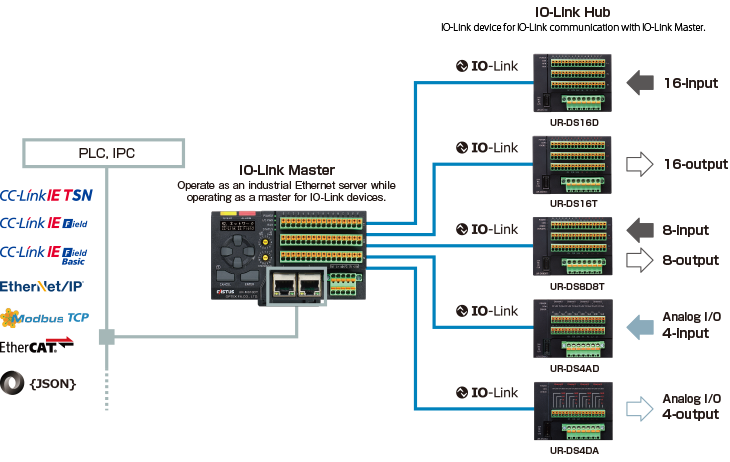

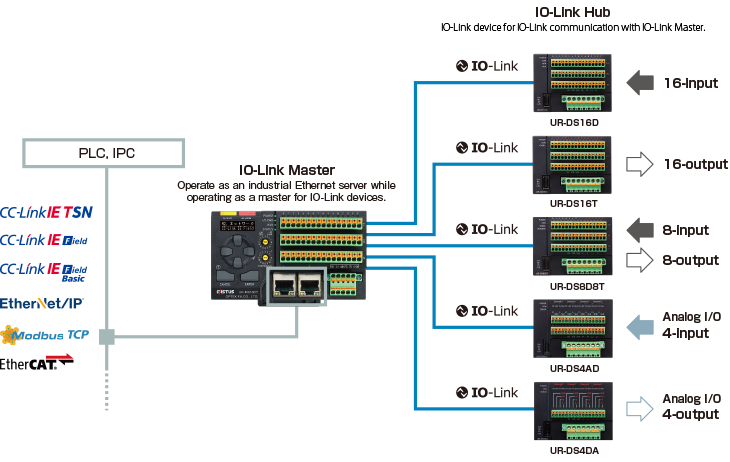

System configuaration example of IO-Link Master UR Series and IO-Link Hub UR-DS Series
The IO-Link Hub is connected with a 1:1 IO-Link connection to the upper-level IO-Link Master UR Series.
Converting IO-Link Master port 1 CH to Digital, Analog I/O enables the connection of existing sensors and actuators with wire-saving.
Equipped with 16 channels at the minimum cost.
I/O devices used to require various units such as AD converters depending on the interface, but with our IO-Link Master and IO-Link Hub enable the integration of I/O devices, resulting in significant cost savings.
Expansion using UR-DS Series
