Fiber-Optic CablesSMALL OBJECT DETECTION Series

DOWNLOAD

Small object detection with spot lens and fine core

  • A small spot focus lens with adjustable spot size is available
  • Suitable for handling small objects with a ø0.125 mm fine core (NF-DP01)
SMALL OBJECT DETECTION Series

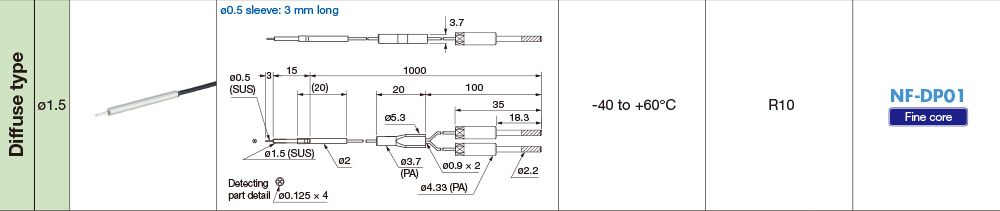

Small object detection Fiber-Optic Cables (diffuse type)

Download of Sensing Distance List.

•The sensing distances for the diffuse type Fiber-Optic Cables are values on 500 × 500 mm white paper.
•Install with an ambient humidity between 35 and 85%. In the case of 85% RH, the ambient temperature should be between 0 and 40℃.
•The values for the smallest detectable object are typical values when set for the best to detect small objects on the Fiber-Optic Cables side.

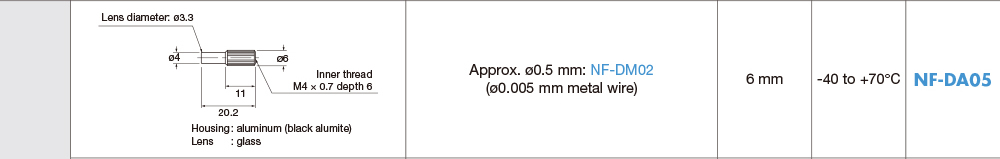

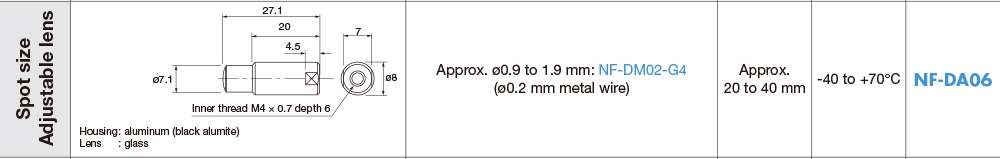

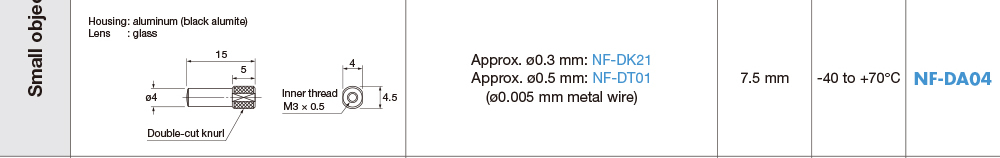

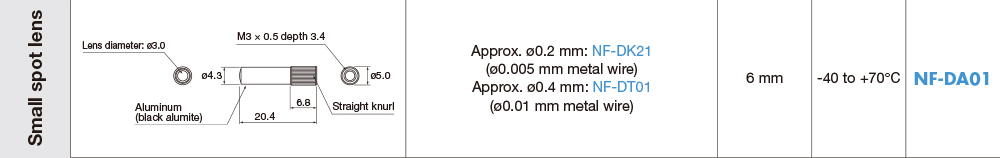

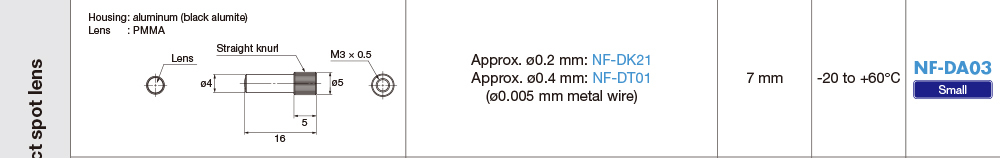

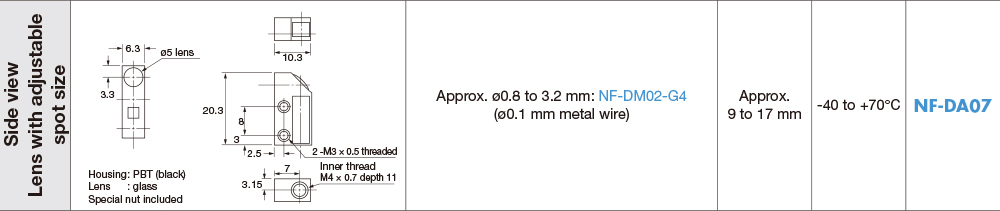

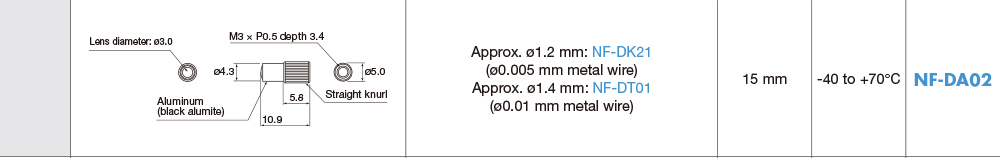

Small object detection lens (for diffuse type fibers)

Download of Sensing Distance List.

　　　　

•Install with an ambient humidity between 35 and 85%. In the case of 85% RH, the ambient temperature should be between 0 and 40℃.
•The values for the smallest detectable object are typical values when set for the best to detect small objects on the Fiber-Optic Cables side.
