Fiber-Optic CablesSCREEN /ARRAY Series
Fiber-Optic Cables for detecting with light screen
- Optimal for detection of complex shapes and when workpiece passage locations are not fixed.

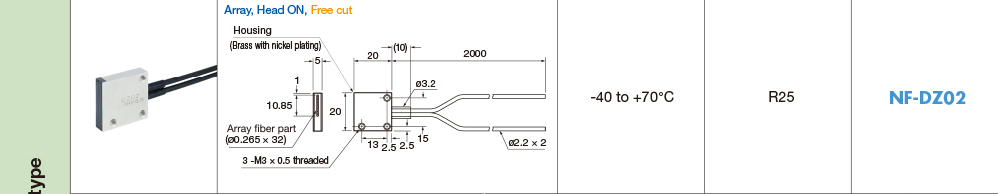

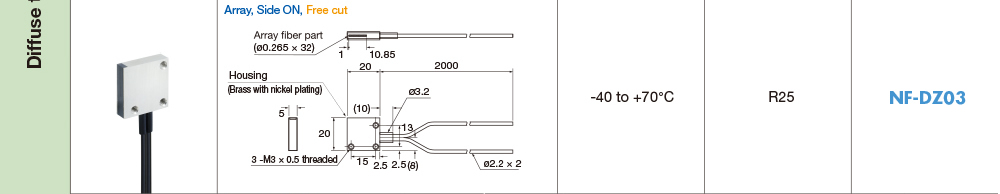

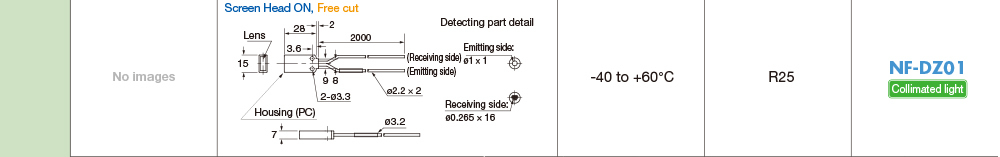

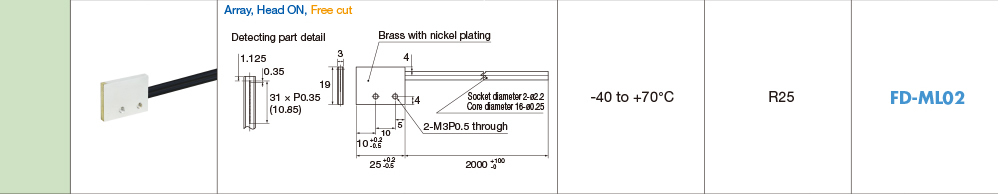

Screen / Array Fiber-Optic Cables (diffuse type)
Download of Sensing Distance List.
•The sensing distances for the diffuse type Fiber-Optic Cables are values on 500 × 500 mm white paper.
•Install with an ambient humidity between 35 and 85%. In the case of 85% RH, the ambient temperature should be between 0 and 40℃.
