Fiber UnitNARROW VIEW/WAFER MAPPING Series

DOWNLOAD

Featuring a built-in lens and narrow aperture that minimizes light leakage.

  • Long range detection together with minimized light leakage
  • Retro-reflective type and diffuse type also available for wafer mapping
NARROW VIEW/WAFER MAPPING Series

Narrow view/wafer mapping fiber units

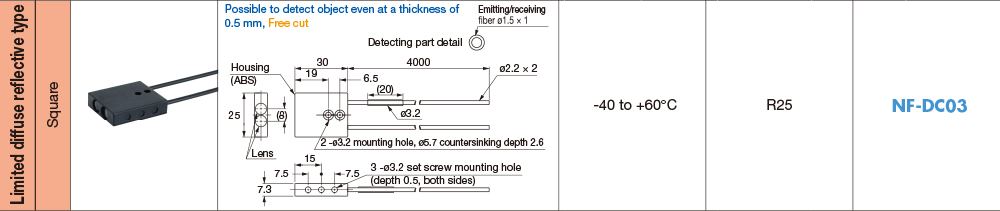

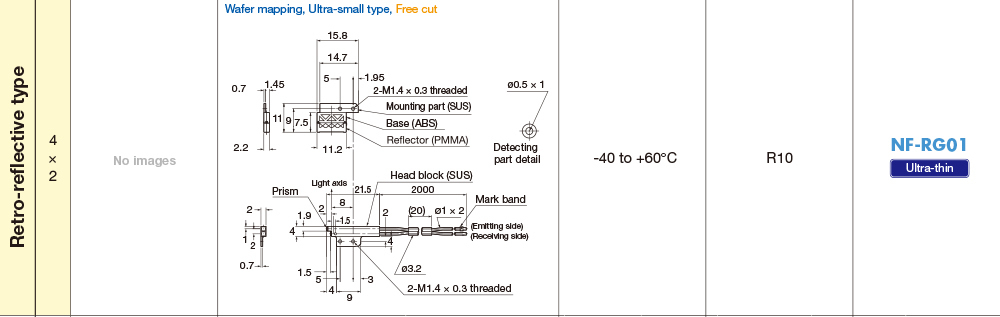

(retro-reflective type/diffuse type/limited diffuse reflective type)

Click the image to enlarge.

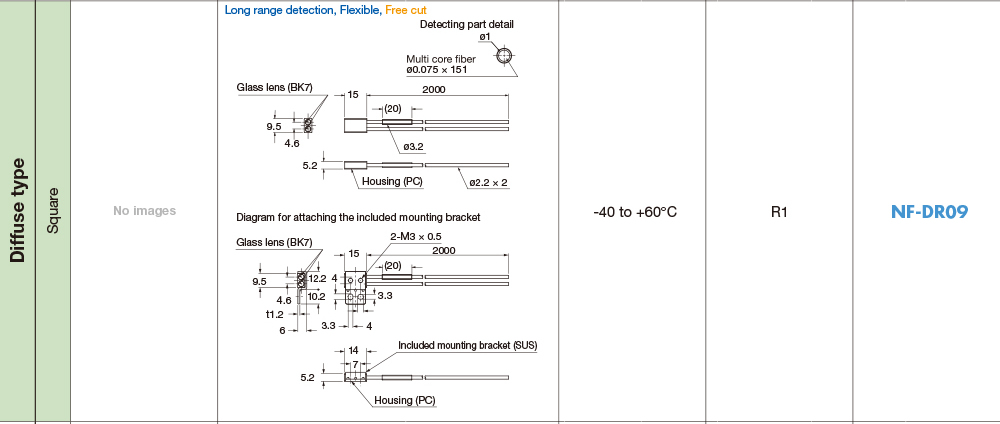

•The sensing distances for the diffuse type fiber units are values on 500 × 500 mm white paper.
•Install with an ambient humidity between 35 and 85%. In the case of 85% RH, the ambient temperature should be between 0 and 40℃.
